Select a component
Service & Support Material
11681_0 | 0 diagram reference numbers | 0 listed parts/equivalents
No exploded diagram found for this component.

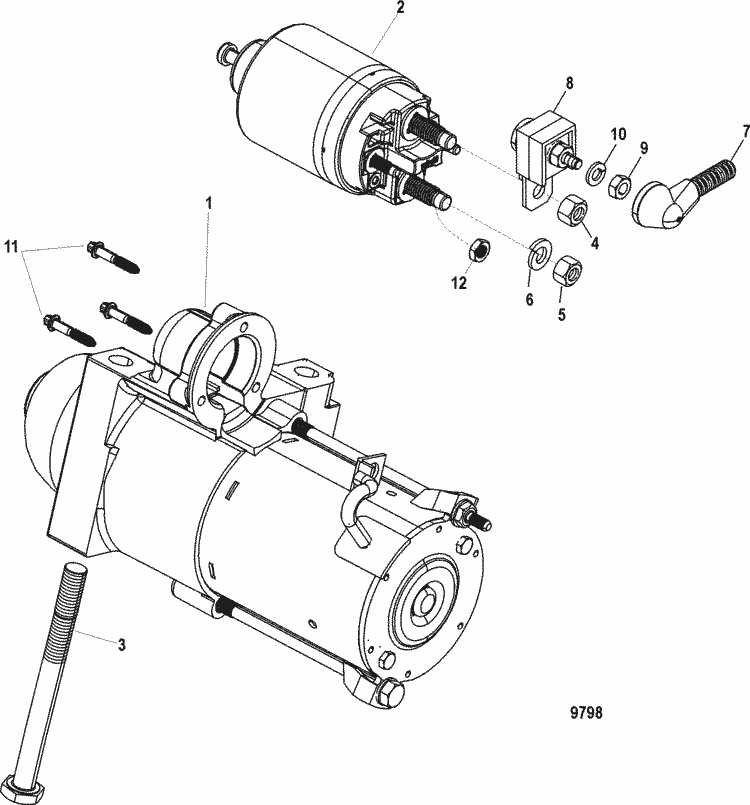

Starter Motor
11681_10 | 11 diagram reference numbers | 20 listed parts/equivalents
#1 863007A 1 — STARTER MOTOR ASSEMBLY (1 required per assembly)
50-863007A 1OEMMercury QuicksilverStarter, Offset Bolt Pattern.$316.99 $300.56 In Stock
18-6275-1AftermarketSierraInboard Starter$261.99 $250.33 10+ In Stock.
18-5913-1AftermarketSierraStarter, 50-812428A3, Gear Reduction, Offset Bolt Pattern$273.99 $246.57 10+ In Stock.
30460AftermarketArcoStarter, 50-806963A2, Straight Across Bolt Pattern$293.06 5 In Stock.
30433AftermarketArcoPremium Inboard Starter, Staggered Bolt Pattern$275.24 $264.56 2 In Stock.
#2 809463A 1 — SOLENOID KIT, Starter (1 required per assembly)
809463A 1OEMMercury QuicksilverSolenoid Kit$205.49 Available to Order: Usually ships within 10 days.
SW463AftermarketArcoSolenoid, 809463A1, 3850216$59.03 3 In Stock.
#3 805343 2 — SCREW, (.375-16 x 4.33) (2 required per assembly)
10-805343 2OEMMercury QuicksilverBolt$17.09 Available to Order: Usually ships within 10 days.
#4 806949 — NUT, (M8-1.5) (1 required per assembly)
11-806949OEMMercury QuicksilverNut (M8 X 1.5)$3.79 10+ In Stock.
#6 26996 — LOCKWASHER, (#10) Stainless Steel (1 required per assembly)
13-26996OEMMercury QuicksilverLockWasher - Priced Individually$1.20 3 In Stock.
#7 79695 — BOOT, Insulator - Black (1 required per assembly)
85-79695OEMMercury QuicksilverBoot (Black)$1.90 10+ In Stock.
85-79695TOEMMercury QuicksilverInsulator Boot$5.49 Available to Order: Usually ships within 10 days.
#8 79023A91 — FUSE ASSEMBLY, 90 Ampere (1 required per assembly)
88-79023A91PartFuse Assembly -90 AmpUnavailable
18-8220AftermarketSierraFuse Kit, 90 Amp$42.09 10+ In Stock.
88-8M0207795OEMMercury QuicksilverFUSE ASSY-90 AMP$51.49 $50.63 Available to Order: Usually ships within 10 days.
88-8M0243734OEMMercury QuicksilverFUSE ASSY-90 AMP$52.48 1 In Stock.
#9 826711 9 — NUT, (.250-28) (1 required per assembly)
11-826711 9OEMMercury QuicksilverNut$2.59 10+ In Stock.
#10 40024 7 — LOCKWASHER, (M8) (1 required per assembly)
13-40024 7OEMMercury QuicksilverLockWasher Note: - Priced Individually$1.80 Available to Order: Usually ships within 10 days.
#11 NSS — NOT SOLD SEPARATE, Screw (3 required per assembly)
NSSOEMMercury QuicksilverNOT SOLD SEPARATEUnavailable
#12 40021 1 — NUT, (M5) Stainless Steel (2 required per assembly)
11-40021 1OEMMercury QuicksilverNut$3.59 10+ In Stock.
Alternator & Brackets
11681_20 | 30 diagram reference numbers | 48 listed parts/equivalents
#1 863077T — ALTERNATOR ASSEMBLY, Black, 65 Amp With 50mm Pulley (1 required per assembly) (Non Serviceable)
863077TOEMMercury QuicksilverAlternator, Black$396.99 $396.49 In Stock
18-6298AftermarketSierraAlternator, 862031T$337.99 $311.41 2 In Stock.
300-76382AftermarketEmpRectifier/Regulator, Mercury Mariner, EMP$134.99 $103.22 8 In Stock.
20815AftermarketArcoAlternator, 863077T$332.18 3 In Stock.
#2 40021 2 — NUT, (M6) Stainless Steel (2 required per assembly)
11-40021 2OEMMercury QuicksilverNut$2.89 1 In Stock.
#3 40001134 — SCREW, (M8 x 25) (1 required per assembly)
10-40001134OEMMercury QuicksilverScrew$1.00 Available to Order: Usually ships within 10 days.
#4 828213 — SCREW, (.312-18 x 1.500) Hex Flange (2 required per assembly)
10-828213OEMMercury QuicksilverScrew - Priced Individually$1.80 Available to Order: Usually ships within 10 days.
#5 57792 — WASHER (2 required per assembly)
12-57792OEMMercury QuicksilverWasher - Priced Individually$1.40 Available to Order: Usually ships within 10 days.
#6 859119 — NUT, (.312-18) (2 required per assembly)
11-859119OEMMercury QuicksilverNut, (5/16-18)$2.09 2 In Stock.
11-26484OEMMercury QuicksilverNut (5/16-18)$3.32 10+ In Stock.
11-8M0204646OEMMercury QuicksilverNUT @5Unavailable
#7 863211T01 — BRACKET, Alternator Mounting (1 required per assembly)
863211T01OEMMercury QuicksilverAlternator Bracket$55.99 Available to Order: Usually ships within 10 days.
#8 98261 — SCREW, (.375-16 x .750) (2 required per assembly)
10-98261OEMMercury QuicksilverScrew$1.20 6 In Stock.
#9 20084 — WASHER, (.328 x .562 x .062) (1 required per assembly)
12-20084OEMMercury QuicksilverWasher, (.328 X .562 X .062)$3.05 10+ In Stock.
#10 865188T01 — BRACKET (1 required per assembly) (Without Air Actuated Drain)
865188T01OEMMercury QuicksilverBracket$125.99 Available to Order: Usually ships within 10 days.
#10 865188T — BRACKET (1 required per assembly) (With Air Actuated Drain)
865188TOEMMercury QuicksilverBracket$200.99 Available to Order: Usually ships within 10 days.
#11 862083T — BRACKET, Idler Adjustment (1 required per assembly)
862083TOEMMercury QuicksilverBracket$49.99 Available to Order: Usually ships within 10 days.
#12 865193 — BUSHING (1 required per assembly)
865193OEMMercury QuicksilverBushing$7.59 4 In Stock.
#13 859135 — NUT, (.437-20) Brass/Nickel Plated (1 required per assembly)
11-859135OEMMercury QuicksilverNut (7/16-20), Priced Individually$6.09 6 In Stock.
#14 818381 2 — PINION STUD, (.437-20) Stainless Steel (1 required per assembly)
43-818381 2OEMMercury QuicksilverPinion StudUnavailable
43-8M0113182OEMMercury QuicksilverPinion Stud$22.96 2 In Stock.
#15 864625T — PULLEY (4.25 Inch Diameter) (1 required per assembly) (With Power Steering)
864625TOEMMercury QuicksilverIdler Pulley$65.49 3 In Stock.
#15 807757T — PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter) (1 required per assembly) (Compact Hydralic Steering)
807757TOEMMercury QuicksilverIdler Pulley$59.99 2 In Stock.
18-6457AftermarketSierraIdler Pulley, 807757T$51.79 $51.65 3 In Stock.
#16 34353 — SCREW, (.375-16 x 1.00) (2 required per assembly)
10-34353OEMMercury QuicksilverScrew - Priced Individually$2.59 10+ In Stock.
#17 862082T — BRACE, Power Steering (1 required per assembly)
862082TOEMMercury QuicksilverBrace$8.79 Available to Order: Usually ships within 10 days.
#18 40001188 — SCREW, (M10 x 20) (1 required per assembly)
10-40001188OEMMercury QuicksilverScrewUnavailable
#19 864456T — BRACKET, Alternator Brace (1 required per assembly) (Bravo) (Alpha-Closed Cooling)
864456TOEMMercury QuicksilverBracket - Idler$18.99 Available to Order: Usually ships within 10 days.
#21 862085T — BRACE, Idler Bracket (1 required per assembly) (Bravo) (Alpha-Closed Cooling)
862085TOEMMercury QuicksilverBracket$20.99 Available to Order: Usually ships within 10 days.
#22 865598 — PULLEY (1 required per assembly) (Bravo) (Alpha-Closed Cooling)
865598PartPULLEYUnavailable
8M6500024OEMMercury QuicksilverPulley$44.49 3 In Stock.
#24 56393 — SCREW, (.437-20 x 1.75) (1 required per assembly) (Bravo) (Alpha-Closed Cooling)
10-56393OEMMercury QuicksilverScrew$2.99 Available to Order: Usually ships within 10 days.
#26 862778 — BRACKET, Alternator Brace (1 required per assembly)
862778OEMMercury QuicksilverAlternator Brace Bracket$28.39 Available to Order: Usually ships within 10 days.
#28 865615004 — BELT (1 required per assembly) (Standard Cooling) (Alpha) (With Power Steering)
57-865615004PartSerpentine Belt -1941 MMUnavailable
57-865615Q04OEMMercury QuicksilverSerpentine Belt$123.49 $122.99 In Stock
18-15101AftermarketSierraSerpentine Belt$111.03 4 In Stock.
#28 865615009 — BELT (1 required per assembly) (Standard Cooling) (Alpha) (CHS and Non Power Steering)
57-865615009OEMMercury QuicksilverSerpentine Belt -1780 Mm$61.45 1 In Stock.
57-865615Q09OEMMercury QuicksilverBelt$83.49 In Stock
#28 865615003 — BELT (1 required per assembly) (Standard Cooling) (Bravo) (With Power Steering)
57-865615003PartBELT-SERP-2704 MMUnavailable
57-57030AftermarketEmpSerpentine Belt, Mercury 57-865615-003, 57-865615Q03$129.99 $99.40 2 In Stock.
57-865615Q03OEMMercury QuicksilverBelt$163.99 $161.92 In Stock
18-15100AftermarketSierraBelt$147.86 7 In Stock.
#28 865615008 — BELT (1 required per assembly) (Standard Cooling) (Bravo) (CHS and Non Power Steering)
57-865615008PartSerpentine Belt -2535 MmUnavailable
57-865615Q08OEMMercury QuicksilverBelt$121.49 In Stock
18-15104AftermarketSierraBelt$107.99 $105.11 2 In Stock.
#28 865615006 — BELT (1 required per assembly) (Alpha/Bravo) (Closed Cooling) (With Power Steering)
57-865615006PartSerpentine Belt -2667 MMUnavailable
57-865615Q06OEMMercury QuicksilverBelt$141.49 $139.69 In Stock
18-15102AftermarketSierraBelt$115.80 1 In Stock.

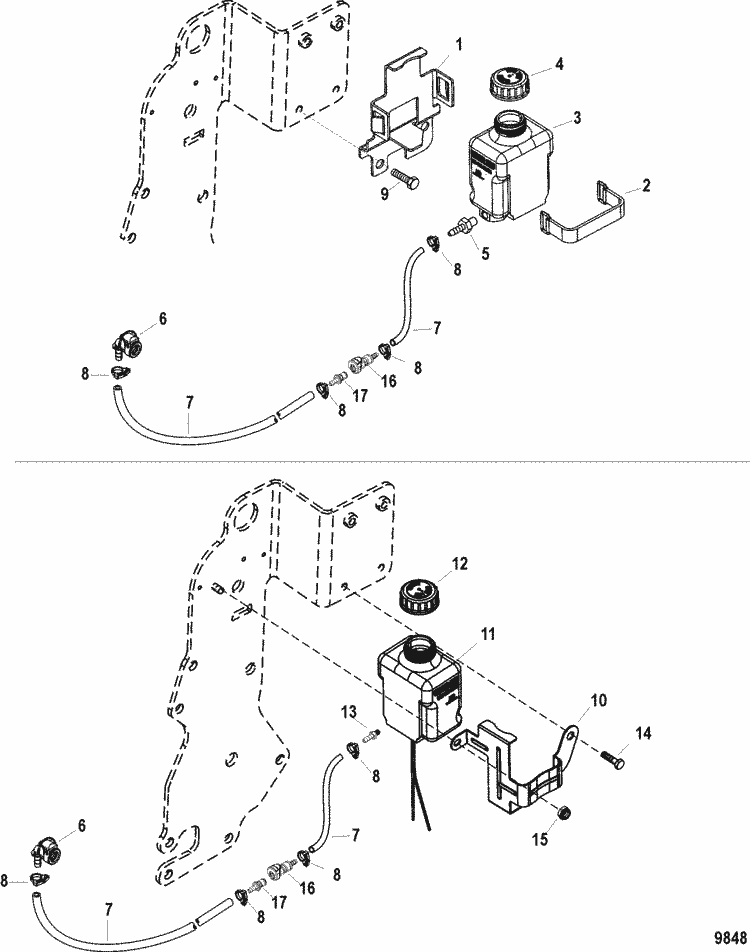

Gear Lube Monitor
11681_30 | 16 diagram reference numbers | 22 listed parts/equivalents
#1 860065A 1 — BRACKET KIT, Lube Monitor Reservoir (1 required per assembly) (Closed Cooling)
860065A 1OEMMercury QuicksilverBracket Kit$37.49 $36.72 In Stock
806293TOEMMercury QuicksilverBracket$49.34 2 In Stock.
#2 808023T — STRAP, Reservoir Retainer (1 required per assembly)
808023TOEMMercury QuicksilverRetaining Strap$19.39 In Stock
#3 806193A46 — LUBE BOTTLE, Lube Monitor (1 required per assembly) (Closed Cooling)
806193A46PartOil Bottle Assembly ZZUnavailable
8M0075709OEMMercury QuicksilverOil Bottle Assembly$72.99 In Stock
#4 806727 1 — CAP, Drive Lube Monitor, Lube Reservoir (1 required per assembly)
36-806727 1OEMMercury QuicksilverReservoir Cap$14.99 Available to Order: Usually ships within 10 days.
#5 808624 — CONNECTOR, Lube Reservoir (1 required per assembly)
22-808624OEMMercury QuicksilverConnector$5.89 Available to Order: Usually ships within 10 days.
#6 861163 — QUICK CONNECTOR, (90 Degree), To Transom (1 required per assembly)
22-861163OEMMercury QuicksilverConnector$15.69 2 In Stock.
#7 19409 71 — HOSE, (54.00 Inches Bulk) (.25 Inch I.D.) (1 required per assembly)
32-19409 71PartHose-54 InchUnavailable
32-8M0062600PartHose - Lock OnUnavailable
32-8M0040618PartOil Reservoir Hose, 54 inchUnavailable
32-8M0214996OEMMercury QuicksilverOIL RESERVIOR HOSE 54IN ZZ$30.79 3 In Stock.
#8 41582 5 — CLAMP, Nylon, Hose (AR required per assembly)
54-41582 5OEMMercury QuicksilverClamp - Priced Individually$3.09 10+ In Stock.
#9 98261 — SCREW, (.375-16 x .750) (2 required per assembly)
10-98261OEMMercury QuicksilverScrew$1.20 6 In Stock.
#10 865175T — BRACKET, Lube Monitor Reservoir (1 required per assembly) (Standard Cooling)
865175TOEMMercury QuicksilverBracket$19.69 Available to Order: Usually ships within 10 days.
#11 806193A47 — RESERVOIR, Lube Monitor (1 required per assembly) (Standard Cooling)
806193A47PartOil Bottle AssemblyUnavailable
8M0075710OEMMercury QuicksilverOil Bottle Assembly$51.99 In Stock
#13 85439001 — CONNECTOR, Male, Lube Reservoir (1 required per assembly)
22-85439001OEMMercury QuicksilverConnector$2.99 Available to Order: Usually ships within 10 days.
#14 828552 — SCREW, (.375-16 x .500) (1 required per assembly)
10-828552OEMMercury QuicksilverScrew$1.80 2 In Stock.
#15 826709 8 — NUT, (.250-20) Stainless Steel (1 required per assembly)
11-826709 8OEMMercury QuicksilverNut - Priced Individually$6.89 $1.38 10+ In Stock.
#16 865379 — FITTING, Female (1 required per assembly)
22-865379OEMMercury QuicksilverConnector$17.89 In Stock
#17 865191 — FITTING, Male (1 required per assembly)
22-865191OEMMercury QuicksilverConnector$4.19 Available to Order: Usually ships within 10 days.

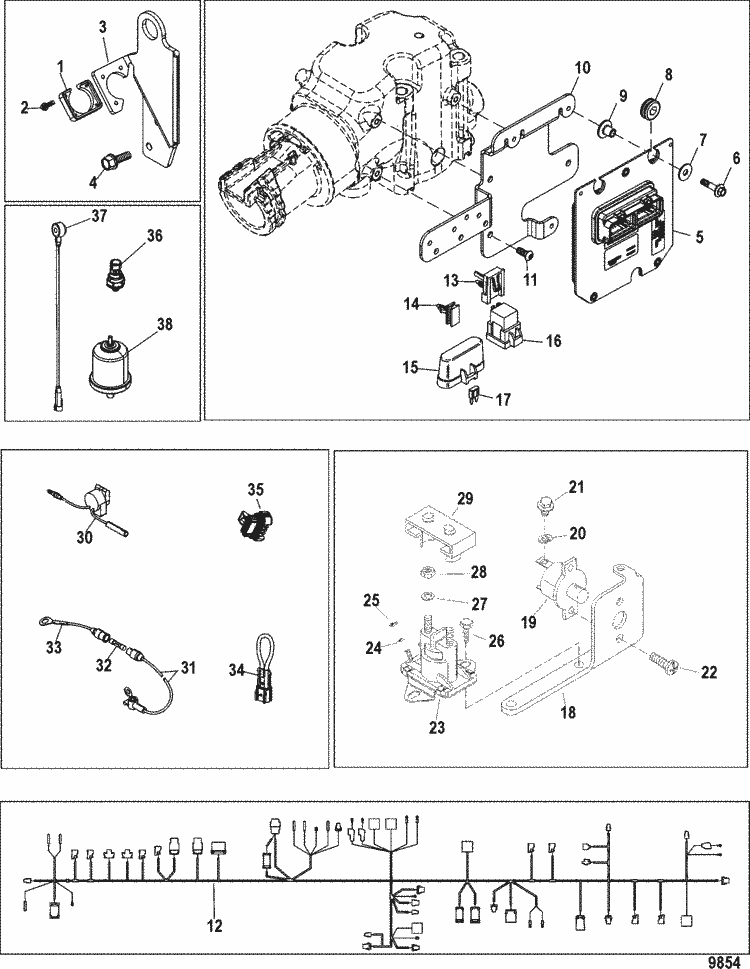

Electrical Components(Mechanical Throttle & Shift)
11681_40 | 51 diagram reference numbers | 105 listed parts/equivalents
#1 26079A 2 — PLATE KIT, Wire Harness Mount (1 required per assembly)
26079A 2OEMMercury QuicksilverPlate Kit$30.64 2 In Stock.
#2 15001 — SCREW, (#8-16 x .875) (4 required per assembly)
10-15001OEMMercury QuicksilverScrew$3.29 Available to Order: Usually ships within 10 days.
#3 863440T — BRACKET, Harness Mounting/Lifting Eye (1 required per assembly)
863440TPartBracketUnavailable
865480TOEMMercury QuicksilverBracket$62.49 Available to Order: Usually ships within 10 days.
#4 98261 — SCREW, (.375-16 x .750) (2 required per assembly)
10-98261OEMMercury QuicksilverScrew$1.20 6 In Stock.
#5 866189T01 — ECM, Engine Control Module (1 required per assembly) (5.0L MPI Alpha)(Standard Cooling)
866189T01PartECM Engine Contro - Replaced by -866189T02Unavailable
866189T02PartECMUnavailable
866189T03PartECMUnavailable
866189T06OEMMercury QuicksilverECMUnavailable
#5 866190T01 — ECM, Engine Control Module (1 required per assembly) (5.0L MPI Alpha)(Closed Cooling)
866190T01PartECMUnavailable
866190T02PartECMUnavailable
866190T03PartECMUnavailable
866190T06OEMMercury QuicksilverECMUnavailable
#5 866191T01 — ECM, Engine Control Module (1 required per assembly) (5.0L MPI Bravo)(Standard Cooling)
866191T01PartECM Engine Contro - Replaced by -866191T02Unavailable
866191T02PartECMUnavailable
866191T03PartECMUnavailable
866191T06OEMMercury QuicksilverECMUnavailable
#5 866192T01 — ECM, Engine Control Module (1 required per assembly) (5.0L MPI Bravo)(Closed Cooling)
866192T01PartECMUnavailable
866192T02PartECMUnavailable
866192T03PartECMUnavailable
866192T06OEMMercury QuicksilverECMUnavailable
#5 866122T01 — ECM, Engine Control Module (1 required per assembly) (350 MAG MPI Alpha)(Standard Cooling)
866122T01PartECM Engine Contro - Replaced by -866122T02Unavailable
866122T02PartECMUnavailable
866122T03PartECM - Replaced by -866122T06Unavailable
866122T06OEMMercury QuicksilverECMUnavailable
#5 866123T01 — ECM, Engine Control Module (1 required per assembly) (350 MAG MPI Alpha)(Closed Cooling)
866123T01PartECMUnavailable
866123T02PartECMUnavailable
866123T03PartECMUnavailable
866123T06OEMMercury QuicksilverECMUnavailable
#5 866124T01 — ECM, Engine Control Module (1 required per assembly) (350 MAG MPI Bravo)(Standard Cooling)
866124T01PartECMUnavailable
866124T02PartPCMUnavailable
866124T03PartECMUnavailable
866124T06OEMMercury QuicksilverECMUnavailable
#5 866125T01 — ECM, Engine Control Module (1 required per assembly) (350 MAG MPI Bravo)(Closed Cooling)
866125T01PartECMUnavailable
866125T02PartECMUnavailable
866125T03PartECMUnavailable
866125T06OEMMercury QuicksilverECMUnavailable
#5 866129T01 — ECM, Engine Control Module (1 required per assembly) (MX6.2L MPI)(Standard Cooling)
866129T01PartECMUnavailable
866129T02PartECMUnavailable
866129T03PartECMUnavailable
866129T06OEMMercury QuicksilverECMUnavailable
#5 866130T01 — ECM, Engine Control Module (1 required per assembly) (MX6.2L MPI)(Closed Cooling)
866130T01PartECMUnavailable
866130T02PartECMUnavailable
866130T03PartECMUnavailable
866130T06OEMMercury QuicksilverECMUnavailable
#6 821300 25 — SCREW, (M6 x 25) (3 required per assembly)
10-821300 25OEMMercury QuicksilverScrew$4.09 Available to Order: Usually ships within 10 days.
#7 65567 — WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly)
12-65567OEMMercury QuicksilverWasher, (.265 X .750 X .048) Stainless Steel$2.89 Available to Order: Usually ships within 10 days.
#8 834985 — GROMMET (3 required per assembly)
25-834985PartGrommetUnavailable
25-8M0190980OEMMercury QuicksilverGROMMET Note: Must be ordered in multiples of 5$3.89 Available to Order: Usually ships within 10 days.
#9 856954 — BUSHING (3 required per assembly)
23-856954OEMMercury QuicksilverBushing$6.99 Available to Order: Usually ships within 10 days.
#10 863424T — BRACKET, ECM Mount (1 required per assembly)
863424TOEMMercury QuicksilverBracket$45.99 Available to Order: Usually ships within 10 days.
#11 860008 — SCREW, (.250-20 x .625) Torx (3 required per assembly)
10-860008OEMMercury QuicksilverBolt$3.19 Available to Order: Usually ships within 10 days.
#12 865454T04 — HARNESS ASSEMBLY (1 required per assembly) (Alpha) SN# 0W387853 & Below
84-865454T04PartHARNESSUnavailable
84-865454T05OEMMercury QuicksilverHarness$1,449.99 Available to Order: Usually ships within 10 days.
#12 865454T05 — HARNESS ASSEMBLY (1 required per assembly) (Alpha) SN# 0W387854 & Up
—No orderable products listed under this reference.
#12 865454T03 — HARNESS ASSEMBLY (1 required per assembly) (Bravo) SN# 0W386608 & Below
84-865454T03PartHARNESSUnavailable
84-865454T06OEMMercury QuicksilverHarness$1,507.99 $1,306.29 Available to Order: Usually ships within 10 days.
#12 865454T06 — HARNESS ASSEMBLY (1 required per assembly) (Bravo) SN# 0W386609 & Up
—No orderable products listed under this reference.
#13 804351 — CLIP, Relay Mounting (2 required per assembly)
54-804351PartCLIP-RELAYUnavailable
86-865205OEMMercury QuicksilverClip - Priced Individually$2.99 Available to Order: Usually ships within 10 days.
#14 804352 — CLIP, Fuse Block Mounting (1 required per assembly)
54-804352OEMMercury QuicksilverClip- Fuse Block$1.80 Available to Order: Usually ships within 10 days.
#15 883562 — COVER, Fuse (1 required per assembly)
883562OEMMercury QuicksilverFuse Block Cover$15.59 5 In Stock.
#16 865202T — RELAY (2 required per assembly)
86-865202TOEMMercury QuicksilverRelay$30.00 1 In Stock.
18-5851AftermarketSierraRelay, 86-865202T$38.99 $38.97 10+ In Stock.
86-8M0210756OEMMercury QuicksilverRELAY$44.99 In Stock
#17 832969 20 — FUSE, Mini - Yellow - 20 Ampere (3 required per assembly)
88-832969 20PartFuse-Yellow-20AMPUnavailable
88-832969T20OEMMercury QuicksilverFuse - Yellow - 20 Amp$7.09 10+ In Stock.
#18 805368T — BRACKET, Electrical (1 required per assembly)
805368TPartBracketUnavailable
899719T01OEMMercury QuicksilverBracket$44.99 Available to Order: Usually ships within 10 days.
#19 806950 — BREAKER, Circuit - 50 Ampere (1 required per assembly)
88-806950OEMMercury QuicksilverCircuit Breaker 50 amp w/ screw connections. Ord 88-11178A01Unavailable
#20 26996 — LOCKWASHER, (#10) Stainless Steel (2 required per assembly)
13-26996OEMMercury QuicksilverLockWasher - Priced Individually$1.20 3 In Stock.
#21 68513 — SCREW, (#10-32 x .375) Stainless Steel (2 required per assembly)
10-68513OEMMercury QuicksilverScrew$1.40 10 In Stock.
#22 57583 — SCREW, (#8-32 x .375) (2 required per assembly)
10-57583PartScrew - Priced IndividuallyUnavailable
10-57583TOEMMercury QuicksilverScrew - Priced Individually$1.40 Available to Order: Usually ships within 10 days.
#23 96158T — SOLENOID, Starter (1 required per assembly)
89-96158TPartSolenoid, NLA Order 8M0185622Unavailable
18-5817AftermarketSierraSolenoid 89-96158$28.99 $28.63 10+ In Stock.
SW058AftermarketArcoSolenoid$27.59 8 In Stock.
8M0185622OEMMercury QuicksilverSolenoid, Starter or Trim$41.99 5 In Stock.
89-02718AftermarketEmpSolenoid, 89-96158T$21.49 $19.11 In Stock
#24 26992 — LOCKWASHER, (.250) Stainless Steel (2 required per assembly)
13-26992OEMMercury QuicksilverLockWasher - Priced Individually$1.20 10+ In Stock.
#25 26419 — NUT, (#8-32) Brass (2 required per assembly)
11-26419OEMMercury QuicksilverNut (#8-32) (brass)$1.70 10+ In Stock.
#26 805564 — SCREW, (.250-20 x .750) (1 required per assembly)
10-805564OEMMercury QuicksilverScrew$1.70 5 In Stock.
#27 26995 — LOCKWASHER, (#8) Stainless Steel (2 required per assembly)
13-26995OEMMercury QuicksilverLock Washer - Priced IndividuallyUnavailable
#29 97861 — INSULATOR, Starter Solenoid (1 required per assembly)
85-97861OEMMercury QuicksilverInsulator$5.19 Available to Order: Usually ships within 10 days.
#30 816492A15 — ALARM KIT (1 required per assembly)
816492A15OEMMercury QuicksilverAlarm Kit$102.32 4 In Stock.
#31 95084A 9 — CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (1 required per assembly) (Bravo)
84-95084A 9OEMMercury QuicksilverCable Assembly$30.49 Available to Order: Usually ships within 10 days.
#32 79091 — FUSE, 20 Ampere (1 required per assembly) (Bravo)
88-79091OEMMercury QuicksilverFuse - 20 Amp - Priced Individually$5.54 10+ In Stock.
888M0207796OEMMercury QuicksilverFUSE-20 AMP Note: Priced Individually$9.09 Available to Order: Usually ships within 10 days.
#33 95084A10 — CABLE ASSEMBLY, (5.00 Inches) Red (1 required per assembly) (Bravo)
84-95084A10PartCable AssemblyUnavailable
84-8M0207788OEMMercury QuicksilverCABLE ASSYUnavailable
#34 864337A 1 — CONNECTOR, Black, Jumper (1 required per assembly) (Black Wire)
864337A 1OEMMercury QuicksilverConnector$17.99 Available to Order: Usually ships within 10 days.
#35 891735 — CAP, Weather Proof (10 Pin Transom Harness) (1 required per assembly)
891735PartCAP-WEATHERUnavailable
8M3000055OEMMercury QuicksilverFemale Weather Cap$20.69 Available to Order: Usually ships within 10 days.
#36 881879 3 — SENSOR, Pressure (1 required per assembly) ( Power Steering Cooler )
881879 3PartSensorUnavailable
881879010PartSensorUnavailable
8M6000623PartSensorUnavailable
71-8M0157742OEMMercury QuicksilverWater Pressure Sensor 50PSI$209.99 $209.49 In Stock
#36 881879A 6 — SENSOR, (0 - 100 PSI), Pressure (1 required per assembly) ( Oil )
881879A 6PartSensor KitUnavailable
881879011PartPressure SensorUnavailable
881879T11OEMMercury QuicksilverPressure Sensor$196.99 $189.49 In Stock
#37 878187 — SENSOR ASSEMBLY, Knock (2 required per assembly)
878187PartKnock Sensor
8M6003194OEMMercury QuicksilverKnock Sensor$77.99 In Stock
#38 815425T — SENDER ASSEMBLY, Oil (1 required per assembly)
815425TPartSenderUnavailable
8M0068784OEMMercury QuicksilverSender Assembly$133.49 $131.62 In Stock
18-5899AftermarketSierraSender, 982650, 815425T$42.99 $41.78 10+ In Stock.
75-24301AftermarketEmpMercruiser and OMC Oil Pressure Sender$42.49 $34.16 3 In Stock.
#38 37293T — SENDER ASSEMBLY, Oil (1 required per assembly) (Dual Station)
37293TOEMMercury QuicksilverOil Pressure Sender$205.99 Available to Order: Usually ships within 10 days.
Electrical Components(Digital Throttle & Shift)
11681_50 | 43 diagram reference numbers | 82 listed parts/equivalents
#1 26079A 2 — PLATE KIT, Wire Harness Mount (1 required per assembly)
26079A 2OEMMercury QuicksilverPlate Kit$30.64 2 In Stock.
#2 15001 — SCREW, (#8-16 x .875) (4 required per assembly)
10-15001OEMMercury QuicksilverScrew$3.29 Available to Order: Usually ships within 10 days.
#3 865480T — BRACKET, Harness Mounting/Lifting Eye (1 required per assembly)
865480TOEMMercury QuicksilverBracket$62.49 Available to Order: Usually ships within 10 days.
#4 98261 — SCREW, (.375-16 x .750) (2 required per assembly)
10-98261OEMMercury QuicksilverScrew$1.20 6 In Stock.
#5 866236T01 — PCM, Propulsion Control Module (1 required per assembly) (5.0L MPI)(Standard Cooling)
866236T01PartPCMUnavailable
866236T02PartPCMUnavailable
866236T03PartPCMUnavailable
866236T04OEMMercury QuicksilverPCMUnavailable
#5 866237T01 — PCM, Propulsion Control Module (1 required per assembly) (5.0L MPI)(Closed Cooling)
866237T01PartPCMUnavailable
866237T02PartPCMUnavailable
866237T03PartPCMUnavailable
866237T04OEMMercury QuicksilverPCMUnavailable
#5 866238T01 — PCM, Propulsion Control Module (1 required per assembly) (350 MAG.)(Standard Cooling)
866238T01PartPCMUnavailable
866238T02PartECM Engine Contro - Replaced by -866238T03Unavailable
866238T03PartPCMUnavailable
866238T04OEMMercury QuicksilverPCMUnavailable
#5 866239T01 — PCM, Propulsion Control Module (1 required per assembly) (350 MAG.)(Closed Cooling)
866239T01PartPCMUnavailable
866239T02PartECM Engine Contro - Replaced by -866239T03Unavailable
866239T03PartPCMUnavailable
866239T04OEMMercury QuicksilverPCMUnavailable
#5 866242T01 — PCM, Propulsion Control Module (1 required per assembly) (6.2L)(Standard Cooling)
866242T01PartPCMUnavailable
866242T03PartPCMUnavailable
866242T04PartPCMUnavailable
866242T05PartPCMUnavailable
866242T06OEMMercury QuicksilverPCMUnavailable
#5 866243T01 — PCM, Propulsion Control Module (1 required per assembly) (6.2L)(Closed Cooling)
866243T01PartPCMUnavailable
866243T03PartPCMUnavailable
866243T04PartPCMUnavailable
866243T05OEMMercury QuicksilverPCMUnavailable
#6 821300 25 — SCREW, (M6 x 25) (3 required per assembly)
10-821300 25OEMMercury QuicksilverScrew$4.09 Available to Order: Usually ships within 10 days.
#7 65567 — WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly)
12-65567OEMMercury QuicksilverWasher, (.265 X .750 X .048) Stainless Steel$2.89 Available to Order: Usually ships within 10 days.
#8 834985 — GROMMET (3 required per assembly)
25-834985PartGrommetUnavailable
25-8M0190980OEMMercury QuicksilverGROMMET Note: Must be ordered in multiples of 5$3.89 Available to Order: Usually ships within 10 days.
#9 856954 — BUSHING (3 required per assembly)
23-856954OEMMercury QuicksilverBushing$6.99 Available to Order: Usually ships within 10 days.
#10 865479T01 — BRACKET, ECM Mount (1 required per assembly)
865479T01OEMMercury QuicksilverBracket -pcm$40.49 Available to Order: Usually ships within 10 days.
#11 860008 — SCREW, (.250-20 x .625) Torx (3 required per assembly)
10-860008OEMMercury QuicksilverBolt$3.19 Available to Order: Usually ships within 10 days.
#12 865980T02 — HARNESS ASSEMBLY, Main Engine (1 required per assembly) (Digital Throttle and Shift)
84-865980T02OEMMercury QuicksilverEngine Harness$1,365.49 Available to Order: Usually ships within 10 days.
#13 804351 — CLIP, Relay Mounting (2 required per assembly)
54-804351PartCLIP-RELAYUnavailable
86-865205OEMMercury QuicksilverClip - Priced Individually$2.99 Available to Order: Usually ships within 10 days.
#14 804352 — CLIP, Fuse Block Mounting (1 required per assembly)
54-804352OEMMercury QuicksilverClip- Fuse Block$1.80 Available to Order: Usually ships within 10 days.
#15 883562 — COVER, Fuse (1 required per assembly)
883562OEMMercury QuicksilverFuse Block Cover$15.59 5 In Stock.
#16 865202T — RELAY (2 required per assembly)
86-865202TOEMMercury QuicksilverRelay$30.00 1 In Stock.
18-5851AftermarketSierraRelay, 86-865202T$38.99 $38.97 10+ In Stock.
86-8M0210756OEMMercury QuicksilverRELAY$44.99 In Stock
#17 832969 20 — FUSE, Mini - Yellow - 20 Ampere (3 required per assembly)
88-832969 20PartFuse-Yellow-20AMPUnavailable
88-832969T20OEMMercury QuicksilverFuse - Yellow - 20 Amp$7.09 10+ In Stock.
#18 865483T — BRACKET, Circuit Breaker and Relays (1 required per assembly)
865483TOEMMercury QuicksilverBracket$53.99 Available to Order: Usually ships within 10 days.
#19 865827T — BREAKER, Circuit - 50 Ampere (1 required per assembly)
88-865827TOEMMercury QuicksilverCircuit BreakerUnavailable
#20 29488 — NUT, (#10-32) (2 required per assembly)
11-29488OEMMercury QuicksilverNut, (#10-32)$3.61 10+ In Stock.
11-826709106OEMMercury QuicksilverNut, (#10-32) Stainless Steel$4.50 10+ In Stock.
11-8M0204718OEMMercury QuicksilverNUT$4.69 Available to Order: Usually ships within 10 days.
#21 830861 — SCREW, (#8-32 x .625) (2 required per assembly)
10-830861OEMMercury QuicksilverScrew - Priced Individually$1.80 Available to Order: Usually ships within 10 days.
#22 40136 6 — NUT, (M6) Stainless Steel (3 required per assembly)
11-40136 6OEMMercury QuicksilverNut - Priced Individually$3.59 2 In Stock.
#23 863439 — STUD (1 required per assembly)
16-863439OEMMercury QuicksilverStud$6.59 Available to Order: Usually ships within 10 days.
#24 865983T01 — HARNESS ASSEMBLY, Injectors (1 required per assembly)
84-865983T01OEMMercury QuicksilverInjector Harness$380.99 Available to Order: Usually ships within 10 days.
#25 865677T01 — HARNESS ASSEMBLY, Transom (1 required per assembly)
84-865677T01OEMMercury QuicksilverHarness - Transom$124.49 Available to Order: Usually ships within 10 days.
#26 888416T03 — HARNESS ASSEMBLY, Clean Power (1 required per assembly)
84-888416T03PartHARNES ASY-14 FTUnavailable
84-888416T04PartHarness AssemblyUnavailable
848M0113732OEMMercury QuicksilverHarness, Clean Power$105.85 Available to Order: Usually ships within 10 days.
#27 862646 — FUSE, Tan - 5 Ampere (1 required per assembly)
862646OEMMercury QuicksilverFuse, Tan, 5 Amp$4.09 Available to Order: Usually ships within 10 days.
#28 828054 — COVER, Fuse (1 required per assembly)
828054OEMMercury QuicksilverFuse Cover$5.89 Available to Order: Usually ships within 10 days.
#29 95084A10 — CABLE ASSEMBLY, (5.00 Inches) Red (1 required per assembly) (Bravo)
84-95084A10PartCable AssemblyUnavailable
84-8M0207788OEMMercury QuicksilverCABLE ASSYUnavailable
#30 79091 — FUSE, 20 Ampere (1 required per assembly) (Bravo)
88-79091OEMMercury QuicksilverFuse - 20 Amp - Priced Individually$5.54 10+ In Stock.
888M0207796OEMMercury QuicksilverFUSE-20 AMP Note: Priced Individually$9.09 Available to Order: Usually ships within 10 days.
#31 95084A 9 — CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (1 required per assembly) (Bravo)
84-95084A 9OEMMercury QuicksilverCable Assembly$30.49 Available to Order: Usually ships within 10 days.
#32 881879 3 — SENSOR, Pressure (1 required per assembly) ( Power Steering Cooler )
881879 3PartSensorUnavailable
881879010PartSensorUnavailable
8M6000623PartSensorUnavailable
71-8M0157742OEMMercury QuicksilverWater Pressure Sensor 50PSI$209.99 $209.49 In Stock
#32 881879A 6 — SENSOR, (0 - 100 PSI), Pressure (1 required per assembly) ( Oil )
881879A 6PartSensor KitUnavailable
881879011PartPressure SensorUnavailable
881879T11OEMMercury QuicksilverPressure Sensor$196.99 $189.49 In Stock
#33 878187 — SENSOR ASSEMBLY, Knock (2 required per assembly)
878187PartKnock Sensor
8M6003194OEMMercury QuicksilverKnock Sensor$77.99 In Stock
#34 815425T — SENDER ASSEMBLY, Oil (1 required per assembly)
815425TPartSenderUnavailable
8M0068784OEMMercury QuicksilverSender Assembly$133.49 $131.62 In Stock
18-5899AftermarketSierraSender, 982650, 815425T$42.99 $41.78 10+ In Stock.
75-24301AftermarketEmpMercruiser and OMC Oil Pressure Sender$42.49 $34.16 3 In Stock.
#34 37293T — SENDER ASSEMBLY, Oil (1 required per assembly) (Dual Station)
37293TOEMMercury QuicksilverOil Pressure Sender$205.99 Available to Order: Usually ships within 10 days.
#35 816492A15 — ALARM KIT (1 required per assembly)
816492A15OEMMercury QuicksilverAlarm Kit$102.32 4 In Stock.
#36 864337A 1 — CONNECTOR, Black, Jumper (1 required per assembly) (Black Wire)
864337A 1OEMMercury QuicksilverConnector$17.99 Available to Order: Usually ships within 10 days.
Distributor & Ignition Components
11681_60 | 22 diagram reference numbers | 44 listed parts/equivalents
#1 884794A02 — DISTRIBUTOR ASSEMBLY (1 required per assembly)
884794A02PartDistributorUnavailable
879150A87OEMMercury QuicksilverDistributor Assembly$1,188.49 Available to Order: Usually ships within 10 days.
#2 884792 — CAP, Distributor (1 required per assembly)
884792PartDistributor Cap ECM 555Unavailable
8M0061335OEMMercury QuicksilverCap and Rotor$138.99 $133.49 Available to Order: Usually ships within 10 days.
8M6001106PartDistributor Cap OnlyUnavailable
3858975OEMVolvoDistributor Cap, Volvo$113.00 1 In Stock.
18-5247AftermarketSierraCap & Rotor Kit$117.99 $113.28 10+ In Stock.
18-5244-2AftermarketSierraDistributor Cap$106.42 $97.53 1 In Stock.
8M0215003OEMMercury QuicksilverDistributor Cap 555 ECM MZ$104.99 $100.99 In Stock
#3 884786 — SCREW (2 required per assembly)
10-884786OEMMercury QuicksilverScrew$18.29 1 In Stock.
#4 884790 — ROTOR (1 required per assembly)
884790PartROTORUnavailable
898253013PartRotor - 8M6001222Unavailable
8M6001222OEMMercury QuicksilverRotor Only$22.50 1 In Stock.
18-5245AftermarketSierraRotor$20.63 9 In Stock.
8M0215004OEMMercury QuicksilverRotor$23.49 $22.49 Available to Order: Usually ships within 10 days.
#5 884788 — SCREW (2 required per assembly)
10-884788OEMMercury QuicksilverScrew$11.49 Available to Order: Usually ships within 10 days.
#6 898141 — SENSOR, Hall Effect, Camshaft Position (1 required per assembly)
898141PartHall Effect SensorUnavailable
18-7642AftermarketSierraPickup Assembly, Sensor, 3863130$257.99 $251.26 Available to Order: Usually ships within 10 days.
8M0156229OEMMercury QuicksilverSensor-HALL EFFCT$182.99 Available to Order: Usually ships within 10 days.
#8 884789 — GEAR ASSEMBLY (1 required per assembly)
0884789OEMOmcL/P 101.70Unavailable
#9 88731 — CLAMP (1 required per assembly)
54-88731OEMMercury QuicksilverClamp$9.99 Available to Order: Usually ships within 10 days.
#10 40011149 — SCREW, (M8 x 25) Stainless Steel (1 required per assembly)
10-40011149OEMMercury QuicksilverScrew$2.69 Available to Order: Usually ships within 10 days.
#11 34486 3 — GASKET (1 required per assembly)
27-34486 3OEMMercury QuicksilverGasket$2.69 Available to Order: Usually ships within 10 days.
#12 863656A 1 — CABLE KIT, Ignition (Spark Plugs and Coil) (1 required per assembly)
84-863656A 1OEMMercury QuicksilverSpark Plug Wire Set$160.99 In Stock
18-8828-1AftermarketSierraWire Set, 84-863656A1$132.99 $129.02 10+ In Stock.
#13 863657A 1 — CABLE ASSEMBLY, Coil Wire Assembly (1 required per assembly)
84-863657A 1OEMMercury QuicksilverCoil Wire$51.49 In Stock
#14 884019 — SPARK PLUG (8 required per assembly) (AC 41-932)
33-884019PartAC 41-932 Note: Priced IndividuallyUnavailable
33-884019001PartAC 41-993 Note: Priced IndividuallyUnavailable
33-8M2018369PartNGK Spark Plug ITR4A15, Priced IndividuallyUnavailable
ITR4A15AftermarketNgkNGK Spark Plug, 5599$17.62 10+ In Stock.
33-8M0204739OEMMercury QuicksilverNGK ITR4A15 @4Unavailable
#15 54676 — RETAINER, Two Wire (2 required per assembly)
54676OEMMercury QuicksilverRetainer$5.19 Available to Order: Usually ships within 10 days.
#16 32783 — RETAINER, Three Wire (2 required per assembly)
32783OEMMercury QuicksilverRetainer$4.09 Available to Order: Usually ships within 10 days.
#17 32784 — RETAINER, Four Wire (2 required per assembly)
32784OEMMercury QuicksilverRetainer$8.50 $7.21 1 In Stock.
#18 863704T — COIL, Ignition (1 required per assembly)
392-863704TPartIgnition CoilUnavailable
392-8M0054588OEMMercury QuicksilverIgnition Coil$400.49 Available to Order: Usually ships within 10 days.
8M0054588OEMMercury QuicksilverCOILUnavailable
300-30019AftermarketEmpIgnition Coil 8M0054588$334.99 $256.14 Available to Order: Usually ships within 10 days.
#19 65746 1 — SCREW AND LOCKWASHER, (.250-20 x .625) (2 required per assembly)
10-65746 1OEMMercury QuicksilverScrew$1.70 5 In Stock.
#20 863663 — BRACKET, Coil (1 required per assembly)
863663PartBracketUnavailable
863663TOEMMercury QuicksilverBracket$17.89 Available to Order: Usually ships within 10 days.
#21 98261 — SCREW, (.375-16 x .750) (2 required per assembly)
10-98261OEMMercury QuicksilverScrew$1.20 6 In Stock.
#22 90096A 1 — STUD ASSEMBLY, (#10-32 x Special) (2 required per assembly)
16-90096A 1OEMMercury QuicksilverStud Kit -Special$15.59 Available to Order: Usually ships within 10 days.
#23 72821 — RETAINER (2 required per assembly)
54-72821OEMMercury QuicksilverCable Retainer$5.49 Available to Order: Usually ships within 10 days.
Fuel Supply Module(Alpha)
11681_70 | 30 diagram reference numbers | 44 listed parts/equivalents
#1 863422T 1 — BRACKET, Fuel Cooler (1 required per assembly)
863422T 1OEMMercury QuicksilverBracket$44.99 Available to Order: Usually ships within 10 days.
#2 807685T — INSULATOR, Base (1 required per assembly)
807685TOEMMercury QuicksilverInsulator$250.99 Available to Order: Usually ships within 10 days.
#3 861156A 1 — PUMP ASSEMBLY, Fuel (1 required per assembly)
861156A 1OEMMercury QuicksilverFuel Pump, See Detail Page and Tech InfoUnavailable
1399-39519AftermarketEmpElectric Fuel Pump$239.99 $195.74 Available to Order: Usually ships within 10 days.
#4 807783A 1 — FITTING ASSEMBLY, 90 Degree (1 required per assembly)
22-807783A 1OEMMercury QuicksilverFitting Kit$42.99 Available to Order: Usually ships within 10 days.
#5 805063 — O-RING, (.301 x .070) (4 required per assembly)
25-805063PartO-ring, (.301 X .070)Unavailable
25-8M0204683OEMMercury QuicksilverO RING Note: Priced Individually$2.79 9 In Stock.
#6 808001A 1 — FITTING ASSEMBLY (1 required per assembly)
22-808001A 1OEMMercury QuicksilverFitting Assembly$34.99 Available to Order: Usually ships within 10 days.
#7 805062 — O-RING, (.530 x .082) (1 required per assembly)
25-805062OEMMercury QuicksilverO-ring, (.530 X .082)$4.19 Available to Order: Usually ships within 10 days.
#8 865356T — COOLER, Fuel (1 required per assembly)
865356TPartFuel CoolerUnavailable
8M0125853OEMMercury QuicksilverFuel Cooler 11.6IN X 1.25 Hose$362.49 In Stock
#9 861303 — SCREW, (.250-28) Special (1 required per assembly)
10-861303PartSCREWUnavailable
10-866114OEMMercury QuicksilverScrew$6.89 Available to Order: Usually ships within 10 days.
#10 861414 — RING, Retaining (1 required per assembly)
53-861414OEMMercury QuicksilverRing - Retaining$1.10 Available to Order: Usually ships within 10 days.
#11 807979T — BRACKET (1 required per assembly)
807979TOEMMercury QuicksilverBracket$114.49 Available to Order: Usually ships within 10 days.
#12 29598 — NUT, (.250-28) Stainless Steel (2 required per assembly)
11-29598OEMMercury QuicksilverNut (1/4-28)$2.89 10+ In Stock.
#13 861126A 1 — REGULATOR KIT, (43 PSI), Fuel Pressure (1 required per assembly)
861126A 1OEMMercury QuicksilverRegulator Kit$202.49 $194.49 In Stock
#14 805406 — FILTER, Fuel Pressure Regulator (1 required per assembly)
35-805406OEMMercury QuicksilverFilter$6.89 3 In Stock.
#15 805531 — O-RING, (.476 x .075) (1 required per assembly)
25-805531OEMMercury QuicksilverO-ring, (.476 X .075)$5.59 Available to Order: Usually ships within 10 days.
#16 89302 — WASHER, (.203 x .406 x .040) (2 required per assembly)
12-89302OEMMercury QuicksilverWasher (.203 X .406 X .040)$1.80 10+ In Stock.
#17 808002A 1 — FITTING KIT (1 required per assembly)
22-808002A 1OEMMercury QuicksilverFitting Kit$41.99 In Stock
#18 36533 — WASHER, (.328 x .562 x .0312) Copper (1 required per assembly)
12-36533OEMMercury QuicksilverWasher$1.50 Available to Order: Usually ships within 10 days.
#19 806173 82 — HOSE, (58.00 Inches Bulk) (1 required per assembly)
32-806173 82PartHose, 58 InchUnavailable
32-8M0063567OEMMercury QuicksilverHose -58 Inch$37.99 In Stock
#20 860273 — CONNECTOR, Hose (1 required per assembly)
22-860273OEMMercury QuicksilverConnector HoseUnavailable
#21 808005 — SCREW, (.250-20 x .500) (4 required per assembly)
10-808005OEMMercury QuicksilverScrew$3.59 Available to Order: Usually ships within 10 days.
#22 26901 1 — BUMPER, Rubber (8 required per assembly)
26901 1OEMMercury QuicksilverBumper$3.99 6 In Stock.
#23 807930 — INSULATOR, Cover (1 required per assembly)
807930PartInsulatorUnavailable
807930T01OEMMercury QuicksilverInsulator$31.79 Available to Order: Usually ships within 10 days.
#24 864513 — HOSE ASSEMBLY, Fuel Cooler to Fuel Rail (1 required per assembly)
32-864513PartLINE-FUELUnavailable
32-864513001PartFuel LineUnavailable
32-8M0122042OEMMercury QuicksilverFuel Line$128.49 Available to Order: Usually ships within 10 days.
#25 863151 — SEAL, Quad Ring (1 required per assembly)
26-863151PartSealUnavailable
26-8M0214975OEMMercury QuicksilverFUEL COOL QUAD RING SEAL Note: Priced Individually$2.69 3 In Stock.
#26 860069 — NUT, (.375-16) (2 required per assembly)
11-860069OEMMercury QuicksilverNut (3/8-16)$6.59 Available to Order: Usually ships within 10 days.
#27 19409 71 — HOSE, (54.00 Inches Bulk), Fuel Pressure Regulator to Intake Manifold (1 required per assembly)
32-19409 71PartHose-54 InchUnavailable
32-8M0062600PartHose - Lock OnUnavailable
32-8M0040618PartOil Reservoir Hose, 54 inchUnavailable
32-8M0214996OEMMercury QuicksilverOIL RESERVIOR HOSE 54IN ZZ$30.79 3 In Stock.
#28 807954T — HOSE ASSEMBLY, Fuel Pressure Regulator to Fuel Filter (1 required per assembly)
32-807954TPartFuel LineUnavailable
32-8M0045997OEMMercury QuicksilverFuel Line$238.99 Available to Order: Usually ships within 10 days.
#29 864152 1 — HOSE ASSEMBLY, Fuel Filter to Fuel Pump (1 required per assembly)
32-864152 1PartLINE-FUELUnavailable
32-8M0046000OEMMercury QuicksilverFuel Line$173.49 Available to Order: Usually ships within 10 days.
#30 852368 — SCREW, (#10-24 x .750) (2 required per assembly)
10-852368OEMMercury QuicksilverScrew$1.70 Available to Order: Usually ships within 10 days.
Fuel Supply Module, Bravo
11681_80 | 25 diagram reference numbers | 38 listed parts/equivalents
#1 892664 — HOUSING, Fuel Module (1 required per assembly)
892664PartHousing-FUEL MODUnavailable
892664T01OEMMercury QuicksilverREF MCM SB 09-01,NLAUnavailable
#2 892677 — COVER, Fuel Module Housing (1 required per assembly)
892677PartFuel Module CoverUnavailable
8M0086387OEMMercury QuicksilverFuel Module CoverUnavailable
#3 892683 — SEAL (1 required per assembly)
26-892683OEMMercury QuicksilverSeal$18.00 2 In Stock.
#4 892684 — SCREW (8 required per assembly)
10-892684OEMMercury QuicksilverScrew - Priced Individually$39.49 Available to Order: Usually ships within 10 days.
#5 892670A01 — CHECK VALVE KIT (1 required per assembly)
892670A01OEMMercury QuicksilverCheck Valve Kit$102.99 Available to Order: Usually ships within 10 days.
#9 865326 — STUD, (M8 x 30) (1 required per assembly)
16-865326OEMMercury QuicksilverStud$16.92 Available to Order: Usually ships within 10 days.
#10 892681 — REGULATOR (1 required per assembly)
892681OEMMercury QuicksilverRegulator$128.49 In Stock
18-33211AftermarketSierraFuel Pressure Regulator 892681$92.49 $92.35 3 In Stock.
#11 866170A01 — PUMP ASSEMBLY, Fuel - Low Pressure (1 required per assembly)
866170A01OEMMercury QuicksilverFuel Pump Kit$387.99 $372.99 In Stock
#15 866169A01 — PUMP ASSEMBLY, Fuel - High Pressure (1 required per assembly)
866169A01PartFuel Pump KitUnavailable
866169T01OEMMercury QuicksilverFuel Pump Kit$429.49 In Stock
1399-39541AftermarketEmpFuel Pump Kit$359.99 $275.27 3 In Stock.
#18 895013A02 — HARNESS ASSEMBLY (1 required per assembly)
84-895013A02PartFuel Module HarnessUnavailable
84-8M0056175OEMMercury QuicksilverHarness$169.49 Available to Order: Usually ships within 10 days.
#21 892665 — FILTER (1 required per assembly)
35-892665PartFilterUnavailable
35-8M0204703OEMMercury QuicksilverFuel Filter, GEN 3 Coolfuel$47.49 $46.83 In Stock
#22 892687A02 — CARTRIDGE ASSEMBLY, Fuel Filter (1 required per assembly)
892687A02OEMMercury QuicksilverCARTRIDGE ASSEMBLUnavailable
#26 866171A01 — FILTER (1 required per assembly)
35-866171A01PartFuel FilterUnavailable
35-13523-1AftermarketEmpFuel Filter, Gen III Cool Fuel$53.99 $41.29 6 In Stock.
35-8M0093688OEMMercury QuicksilverFuel Filter$75.49 In Stock
18-7977-1AftermarketSierraFuel Filter$58.47 $50.30 In Stock
#29 88517 — FITTING, Reducing (1 required per assembly)
22-88517OEMMercury QuicksilverFitting$19.29 $3.86 10 In Stock.
#30 40107 20 — SCREW, (M8 x 20) (4 required per assembly)
10-40107 20OEMMercury QuicksilverScrew$4.19 Available to Order: Usually ships within 10 days.
#31 40108 20 — SCREW, (M10 x 20) Hex Flange - Stainless Steel (1 required per assembly)
10-40108 20OEMMercury QuicksilverScrew - Priced Individually$4.79 2 In Stock.
#32 864458 — BRACKET (1 required per assembly)
864458OEMMercury QuicksilverBracket$60.99 Available to Order: Usually ships within 10 days.
#33 40001195 — SCREW, (M10 x 30) (2 required per assembly)
10-40001195OEMMercury QuicksilverScrew$5.19 2 In Stock.
#34 806173 82 — HOSE, (58.00 Inches Bulk) (1 required per assembly)
32-806173 82PartHose, 58 InchUnavailable
32-8M0063567OEMMercury QuicksilverHose -58 Inch$37.99 In Stock
#35 865257002 — HOSE, Fuel (1 required per assembly)
32-865257002PartHose - FuelUnavailable
32-865257A03OEMMercury QuicksilverFuel Line Kit$230.99 Available to Order: Usually ships within 10 days.
#36 NSS — NOT SOLD SEPARATE, Insulator Sleeve (1 required per assembly)
NSSOEMMercury QuicksilverNOT SOLD SEPARATEUnavailable
#37 863151 — SEAL, Quad Ring (1 required per assembly)
26-863151PartSealUnavailable
26-8M0214975OEMMercury QuicksilverFUEL COOL QUAD RING SEAL Note: Priced Individually$2.69 3 In Stock.
#38 866114 — SCREW, (.250-28) Special (1 required per assembly)
10-866114OEMMercury QuicksilverScrew$6.89 Available to Order: Usually ships within 10 days.
#39 865363 — O-RING (4 required per assembly)
25-865363OEMMercury QuicksilverO-Ring - Priced Individually$0.60 Available to Order: Usually ships within 10 days.
#40 864459 — BRACKET (1 required per assembly)
864459OEMMercury QuicksilverBracket$37.49 Available to Order: Usually ships within 10 days.
Fuel Filter(Alpha)
11681_90 | 14 diagram reference numbers | 24 listed parts/equivalents
#1 89876A 3 — BASE ASSEMBLY, Fuel Filter With Water Seperator (1 required per assembly)
89876A 3OEMMercury QuicksilverFilter Base Assembly$67.49 In Stock
18-7853-1AftermarketSierraFuel Water Separator$36.59 $35.36 In Stock
#2 816133 — FITTING (1 required per assembly)
22-816133OEMMercury QuicksilverFitting$13.19 Available to Order: Usually ships within 10 days.
#3 32561 — PLUG, Pipe - Allen Head (.250-18) (1 required per assembly)
22-32561OEMMercury QuicksilverPlug - Priced Individually$4.43 10+ In Stock.
22-8M0204652OEMMercury QuicksilverPLUG @2Unavailable
#4 802893Q — FILTER, Fuel/Water Separating - Quicksilver Brand (1 required per assembly)
35-802893QPartFuel FilterUnavailable
35-802893Q01OEMMercury QuicksilverFuel Filter - Priced Individually$19.79 8 In Stock.
18-7945AftermarketSierraFilter, Long Version$8.99 $8.86 10+ In Stock.
18-7944AftermarketSierraFilter, 35-802893Q$8.99 $8.86 10+ In Stock.
18-7845AftermarketSierraFilter, 35-60494-1$13.21 10+ In Stock.
18-7844AftermarketSierraFilter, 35-802893Q$13.21 10+ In Stock.
35-802893TOEMMercury QuicksilverFuel Filter$18.09 10 In Stock.
35-37800AftermarketEmpFuel Water Separator Filter, Mercury Mercruiser 802893Q01, 10 Micron$8.49 $8.34 10+ In Stock.
#4 802893T — FILTER, Fuel/Water Separating - Mercury Brand (1 required per assembly)
—No orderable products listed under this reference.
#5 33821 — CONNECTOR (1 required per assembly)
22-33821OEMMercury QuicksilverConnector$9.69 Available to Order: Usually ships within 10 days.
#6 808003 — CONNECTOR (1 required per assembly)
22-808003OEMMercury QuicksilverConnector$29.49 Available to Order: Usually ships within 10 days.
#7 865907 — FITTING, (3/8-18), Inlet (1 required per assembly)
22-865907OEMMercury QuicksilverFitting$18.69 Available to Order: Usually ships within 10 days.
#8 88641 — INSULATOR, Back (1 required per assembly)
88641OEMMercury QuicksilverInsulator$15.69 Available to Order: Usually ships within 10 days.
#9 807918T — BRACKET, Fuel Filter Base (1 required per assembly)
807918TOEMMercury QuicksilverBracket$224.49 Available to Order: Usually ships within 10 days.
#10 826708 11 — NUT, (.312-24) (2 required per assembly)
11-826708 11OEMMercury QuicksilverNut (5/16-24)$2.59 $0.53 10+ In Stock.
#11 864152 1 — HOSE ASSEMBLY, Fuel Pump to Filter (1 required per assembly)
32-864152 1PartLINE-FUELUnavailable
32-8M0046000OEMMercury QuicksilverFuel Line$173.49 Available to Order: Usually ships within 10 days.
#12 807954T — HOSE ASSEMBLY, Fuel Regulator to Filter (1 required per assembly)
32-807954TPartFuel LineUnavailable
32-8M0045997OEMMercury QuicksilverFuel Line$238.99 Available to Order: Usually ships within 10 days.
#13 860069 — NUT, (.375-16) (2 required per assembly)
11-860069OEMMercury QuicksilverNut (3/8-16)$6.59 Available to Order: Usually ships within 10 days.
Throttle Body(Mechanical)
11681_100 | 37 diagram reference numbers | 53 listed parts/equivalents
#1 888770T — THROTTLE BODY ASSEMBLY (1 required per assembly)
888770TPart8M0069801Unavailable
8M0069801Part8M0096994Unavailable
8M0096994OEMMercury QuicksilverThrottle Body$460.49 In Stock
#2 853678T — SENSOR, TPS (1 required per assembly)
853678TPartSensor, TPSUnavailable
8M0097035PartThrottle Position SensorUnavailable
18-7700AftermarketSierraThrottle Position Sensor, 853678T$143.09 $130.04 4 In Stock.
8M0221731OEMMercury QuicksilverThrottle Position Sensor TPS$128.99 In Stock
#4 853680 — SCREW KIT, TPS (2 required per assembly)
10-853680OEMMercury QuicksilverSCREW KIT,NLAUnavailable
#6 863829 — MUFFLER, Intake Air Control (1 required per assembly)
35-863829PartMuffler - IACUnavailable
35-8M0188224OEMMercury QuicksilverFILTER-IAC Note: Must be ordered in multiples of 2$6.79 4 In Stock.
#7 885172 — GASKET, Throttle Body (1 required per assembly)
27-885172PartThrottle Body GasketUnavailable
27-8M4502066PartGasketUnavailable
27-8M0162949OEMMercury QuicksilverGasket$83.99 Available to Order: Usually ships within 10 days.
#8 862999A 3 — PLUG KIT, IAC (1 required per assembly)
862999A 3PartAdaptor Kit-IACUnavailable
862999A5OEMMercury QuicksilverAdaptor Assembly$62.49 Available to Order: Usually ships within 10 days.
#9 863006 — O-RING (1 required per assembly)
25-863006OEMMercury QuicksilverO-ring, Throttle Body$2.59 Available to Order: Usually ships within 10 days.
#10 808547 — O-RING (1 required per assembly)
25-808547OEMMercury QuicksilverO-Ring$1.70 Available to Order: Usually ships within 10 days.
#11 40086 12 — SCREW, (M4 x 12) (2 required per assembly)
10-40086 12OEMMercury QuicksilverScrew$1.80 Available to Order: Usually ships within 10 days.
#12 863647T — BRACKET (1 required per assembly)
863647TOEMMercury QuicksilverBracket$43.49 Available to Order: Usually ships within 10 days.
#14 863419A 1 — VALVE ASSEMBLY, Air (1 required per assembly)
863419A 1OEMMercury QuicksilverFitting Assembly - Air$52.99 Available to Order: Usually ships within 10 days.
#15 863112 — GASKET, Air Valve (1 required per assembly)
27-863112PartAir Valve GasketUnavailable
27-8M0119616OEMMercury QuicksilverAir Valve Gasket$3.09 3 In Stock.
#16 862998 — VALVE, Idle Air (1 required per assembly)
862998PartIdle Air ValveUnavailable
18-7701AftermarketSierraIAC Idle Air Control Valve, 862998$147.99 $140.20 10+ In Stock.
1300-36067AftermarketEmpIdle Air Control Valve Sensor$149.99 $114.69 2 In Stock.
8M0181068OEMMercury QuicksilverIAC Idle Air Control Valve$231.49 $222.49 In Stock
#17 F2192 — SCREW (2 required per assembly)
10-F2192OEMMercury QuicksilverScrew$5.79 Available to Order: Usually ships within 10 days.
#19 863429 — HOSE (1 required per assembly)
32-863429OEMMercury QuicksilverHose$44.49 Available to Order: Usually ships within 10 days.
#20 863428 — HOSE (1 required per assembly)
32-863428OEMMercury QuicksilverHose$28.49 Available to Order: Usually ships within 10 days.
#21 815504210 — CLAMP, Worm Gear, Hose (4 required per assembly)
54-815504210OEMMercury QuicksilverClamp$4.19 $0.85 10+ In Stock.
#N.S. 807992 3 — COVER, Hose Clamp End (4 required per assembly)
19-807992 3OEMMercury QuicksilverCover-.375 - Priced Individually$0.58 4 In Stock.
198M0074364OEMMercury QuicksilverCover-Clamp - Priced Individually$3.29 $2.80 10+ In Stock.
#22 885171 — STUD (3 required per assembly)
16-885171PartStudUnavailable
168M0088142OEMMercury QuicksilverStud$45.99 Available to Order: Usually ships within 10 days.
#23 864338 — STUD, Special (3 required per assembly)
16-864338OEMMercury QuicksilverStud -Special$12.69 Available to Order: Usually ships within 10 days.
#24 863416T — FLAME ARRESTOR (1 required per assembly)
863416TOEMMercury QuicksilverFlame Arrestor$245.49 In Stock
#25 863423 — BRACKET, Cover Mount (1 required per assembly)
863423OEMMercury QuicksilverBracket$17.89 Available to Order: Usually ships within 10 days.
#26 40138 6 — NUT, (M6) Stainless Steel (3 required per assembly)
11-40138 6OEMMercury QuicksilverNut - Priced Individually$5.09 10+ In Stock.
#27 863681T — COVER, Black, Engine (1 required per assembly)
863681TOEMMercury QuicksilverCoverUnavailable
879288T66OEMMercury QuicksilverEngine Cover Black$176.99 Available to Order: Usually ships within 10 days.
#28 863701 — KNOB, Engine Cover (1 required per assembly)
11-863701OEMMercury QuicksilverKnob Nut$12.99 Available to Order: Usually ships within 10 days.
#29 15894 24 — HOSE, (16.50 Inches Bulk), Breather (1 required per assembly)
32-15894 24OEMMercury QuicksilverTubing - 16.5 InchUnavailable
#30 863420T — BRACKET, Throttle Anchor (1 required per assembly)
863420TOEMMercury QuicksilverThrottle Bracket$16.39 Available to Order: Usually ships within 10 days.
#31 863439 — STUD (1 required per assembly)
16-863439OEMMercury QuicksilverStud$6.59 Available to Order: Usually ships within 10 days.
#32 40136 6 — NUT, (M6) Stainless Steel (2 required per assembly)
11-40136 6OEMMercury QuicksilverNut - Priced Individually$3.59 2 In Stock.
#33 863417 — BRACKET, Throttle (1 required per assembly)
863417OEMMercury QuicksilverBracket$23.29 Available to Order: Usually ships within 10 days.
#34 826713 8 — NUT, (.25-20) (1 required per assembly)
11-826713 8OEMMercury QuicksilverNut$2.79 1 In Stock.
#35 97477A 3 — STUD KIT, Throttle Anchor (2 required per assembly)
16-97477A 3OEMMercury QuicksilverStud Kit$33.19 Available to Order: Usually ships within 10 days.
#36 NSS — NOT SOLD SEPARATE (1 required per assembly)
NSSOEMMercury QuicksilverNOT SOLD SEPARATEUnavailable
#37 826713 9 — NUT, (.250-28) (3 required per assembly)
11-826713 9OEMMercury QuicksilverNut$2.59 4 In Stock.
#38 20533 — WASHER (2 required per assembly)
12-20533OEMMercury QuicksilverWasher, 9/16 Inch O.D.$1.50 1 In Stock.
#39 31866 — SPACER, (.256 x .313 x .625) (2 required per assembly)
23-31866OEMMercury QuicksilverSpacer - .26 X .31 X .64$5.69 10+ In Stock.
#39 11284 — SPACER, (.62 Diameter) (1 required per assembly)
23-11284OEMMercury QuicksilverSpacer - .62 Diameter$4.19 Available to Order: Usually ships within 10 days.
Throttle Body(Digital Throttle & Shift)
11681_110 | 13 diagram reference numbers | 17 listed parts/equivalents
#1 863681T — COVER, Black (1 required per assembly)
863681TOEMMercury QuicksilverCoverUnavailable
879288T66OEMMercury QuicksilverEngine Cover Black$176.99 Available to Order: Usually ships within 10 days.
#2 863701 — KNOB (1 required per assembly)
11-863701OEMMercury QuicksilverKnob Nut$12.99 Available to Order: Usually ships within 10 days.
#3 86400 — WASHER (1 required per assembly)
12-86400OEMMercury QuicksilverWasher, Flame Arrestor$1.70 Available to Order: Usually ships within 10 days.
#4 826713 8 — NUT, (.25-20) (1 required per assembly)
11-826713 8OEMMercury QuicksilverNut$2.79 1 In Stock.
#5 866206T — FLAME ARRESTOR (1 required per assembly)
866206TOEMMercury QuicksilverFlame Arrestor$420.49 Available to Order: Usually ships within 10 days.
#6 866204 — STUD (1 required per assembly)
16-866204OEMMercury QuicksilverStud$23.49 Available to Order: Usually ships within 10 days.
#7 866232 — SEAL, Flame Arrestor (1 required per assembly)
26-866232OEMMercury QuicksilverSeal$5.09 Available to Order: Usually ships within 10 days.
#8 40088 55 — SCREW, (M6 x 55) (4 required per assembly)
10-40088 55OEMMercury QuicksilverScrewUnavailable
#9 866205 — MOUNT , Flame Arrestor (1 required per assembly)
866205PartMOUNTUnavailable
8M0046370OEMMercury QuicksilverMount$55.49 Available to Order: Usually ships within 10 days.
#10 877828T 1 — THROTTLE BODY ASSEMBLY (1 required per assembly)
877828T 1PartThrottle ControlUnavailable
866592A04PartThrottle Body AssemblyUnavailable
8M0046460OEMMercury QuicksilverThrottle Body$995.49 Available to Order: Usually ships within 10 days.
#11 40088 25 — SCREW, (M6 x 25) (3 required per assembly)
10-40088 25OEMMercury QuicksilverScrew$2.59 Available to Order: Usually ships within 10 days.
#12 862538001 — ADAPTOR, Throttle Body (1 required per assembly)
862538001OEMMercury QuicksilverAdaptor -tbu$70.49 Available to Order: Usually ships within 10 days.
#13 863215 — GASKET (1 required per assembly)
27-863215OEMMercury QuicksilverThrottle Body Gasket$9.79 Available to Order: Usually ships within 10 days.
Intake Manifold & Fuel Rail
11681_120 | 27 diagram reference numbers | 41 listed parts/equivalents
#1 885164 — MANIFOLD, Intake, Lower (1 required per assembly)
885164PartLower ManifoldUnavailable
8M0083536OEMMercury QuicksilverManifold - LowerUnavailable
#2 12524 — PLUG, (.375-18 x .475) Brass (1 required per assembly)
22-12524OEMMercury QuicksilverPlug$5.09 Available to Order: Usually ships within 10 days.
#3 807473A 1 — GASKET SET, Intake Manifold (1 required per assembly)
27-807473A 1OEMMercury QuicksilverIntake Manifold Gasket Set$73.99 Available to Order: Usually ships within 10 days.
18-0488AftermarketSierraIntake Gasket 27-807473A1$64.62 10+ In Stock.
#4 808010 — SCREW, (.312-18 x 1.375) (8 required per assembly)
10-808010OEMMercury QuicksilverScrew$4.02 $3.40 2 In Stock.
10-8M0214949OEMMercury QuicksilverSCREW @5Unavailable
#5 885167 — MANIFOLD, Intake, Upper (1 required per assembly)
885167PartUpper Manifold InUnavailable
8M0097033OEMMercury QuicksilverUpper Manifold$416.49 Available to Order: Usually ships within 10 days.
#6 885168 — GASKET, Intake Manifold (1 required per assembly)
27-885168PartIntake Manifold GasketUnavailable
27-8M0097034OEMMercury QuicksilverGasket - Manifold$51.99 In Stock
#7 885166 — SCREW (13 required per assembly)
10-885166OEMMercury QuicksilverScrew$18.39 Available to Order: Usually ships within 10 days.
#8 885165 — SENSOR, Manifold Air Pressure and Temperature (1 required per assembly)
885165PartNew part number 8M0087834Unavailable
8M0087834OEMMercury QuicksilverMAP Sensor - Temperature & Pressure$130.49 In Stock
1300-03776AftermarketEmpT MAP Sensor, 3859020$96.99 $81.05 In Stock
#9 881733 — SEAL (2 required per assembly)
25-881733OEMMercury QuicksilverSeal$20.99 Available to Order: Usually ships within 10 days.
#10 NSS — NOT SOLD SEPARATE, Bracket (Component of 885164) (1 required per assembly)
NSSOEMMercury QuicksilverNOT SOLD SEPARATEUnavailable
#11 885180 — SCREW (4 required per assembly)
10-885180OEMMercury QuicksilverScrew$25.79 Available to Order: Usually ships within 10 days.
#12 885173 — FUEL RAIL ASSEMBLY (1 required per assembly)
885173Part8M0070997Unavailable
8M0070997OEMMercury QuicksilverFuel Rail DeliverUnavailable
#13 885174 — REGULATOR, Fuel Pressure (1 required per assembly)
885174OEMMercury QuicksilverFuel Pressure Regulator$385.99 Available to Order: Usually ships within 10 days.
1399-39023AftermarketEmpFuel Pressure Regulator, 885174$104.99 $91.34 In Stock
#14 885175 — CLIP, Retaining (1 required per assembly)
885175OEMMercury QuicksilverClip$19.90 Available to Order: Usually ships within 10 days.
#15 885176 — INJECTOR (8 required per assembly)
885176OEMMercury QuicksilverFuel Injector$272.98 2 In Stock.
18-7688AftermarketSierraInjector, 885176$320.49 $313.76 3 In Stock.
#16 885177 — RETAINER, Injector (1 required per assembly)
885177PartRetainer - InjectorUnavailable
8M2001570OEMMercury QuicksilverClip$17.69 Available to Order: Usually ships within 10 days.
#17 892609 — O-RING KIT (1 required per assembly)
25-892609OEMMercury QuicksilverO-Ring KitUnavailable
#18 885178 — VALVE, Fuel Pressure Service (1 required per assembly)
885178OEMMercury QuicksilverValve - Fuel Pressu$20.99 Available to Order: Usually ships within 10 days.
#19 885179 — CAP, Fuel Pressure Sevice Valve (1 required per assembly)
885179OEMMercury QuicksilverCap$19.79 Available to Order: Usually ships within 10 days.
#21 806173 82 — HOSE, (58.00 Inches Bulk), Cut to Appropriate Length (2 required per assembly)
32-806173 82PartHose, 58 InchUnavailable
32-8M0063567OEMMercury QuicksilverHose -58 Inch$37.99 In Stock
#22 806689 — FITTING, Tee (1 required per assembly)
22-806689OEMMercury QuicksilverFitting$1.80 Available to Order: Usually ships within 10 days.
#23 37372 — PLUG, Pipe (.500) (1 required per assembly)
22-37372PartPipe PlugUnavailable
22-38407 1OEMMercury QuicksilverPipe Plug - Priced Individually$14.99 3 In Stock.
#23 806242 — CONNECTOR, Barb (1 required per assembly) (Closed Cooling)
22-806242OEMMercury QuicksilverConnector$73.49 $62.47 2 In Stock.
#24 863426 — FITTING, EGR Plug (1 required per assembly) (Mechanical Throttle and Shift)
22-863426OEMMercury QuicksilverFitting$7.19 Available to Order: Usually ships within 10 days.
#24 866157 — PLUG, EGR Port (1 required per assembly) (Digital Throttle and Shift)
22-866157OEMMercury QuicksilverPlugUnavailable
#25 862360 1 — PLUG, Fuel Rail Block Off (1 required per assembly)
22-862360 1OEMMercury QuicksilverPlug$27.91 1 In Stock.
#26 863432 — FITTING, 90 Degree Vent (1 required per assembly)
22-863432PartFittingUnavailable
22-863432TOEMMercury QuicksilverFitting$4.89 Available to Order: Usually ships within 10 days.
Cylinder Head & Rocker Cover
11681_130 | 37 diagram reference numbers | 52 listed parts/equivalents
#1 809995 — COVER, Rocker, With Oil Fill Hole (2 required per assembly)
809995OEMMercury QuicksilverRocker Cover - Stbd$247.99 In Stock
#1 809996 — COVER, Rocker, Without Oil Fill Hole (1 required per assembly)
809996OEMMercury QuicksilverRocker Cover - PortUnavailable
#2 18710002 — CAP, Oil Fill (1 required per assembly)
36-18710002OEMMercury QuicksilverOil Fill Cap$39.85 5 In Stock.
#3 17344 — SCREW (8 required per assembly)
10-17344PartScrewUnavailable
10-8M0084557OEMMercury QuicksilverScrew$34.73 4 In Stock.
#4 17467 — GASKET, Rocker Cover (2 required per assembly)
27-17467PartRocker Cover GasketUnavailable
18-0664AftermarketSierraValve Cover Gasket, 27-17467$32.67 6 In Stock.
27-8M0150306OEMMercury QuicksilverGasket$112.49 Available to Order: Usually ships within 10 days.
#5 52188 — GROMMET (2 required per assembly)
25-52188PartGrommet, Rocker Cover To Vent Hose ConnectorUnavailable
23-8M0071559OEMMercury QuicksilverGrommet$8.49 Available to Order: Usually ships within 10 days.
#6 97850 — ELBOW, 90 Degree (1 required per assembly)
97850OEMMercury QuicksilverElbow-Breather$3.99 10 In Stock.
97850TOEMMercury QuicksilverElbow$5.69 4 In Stock.
#7 861977 63 — HOSE, (33.00 Inches Bulk) (1 required per assembly)
32-861977 63PartHose-33 INCHUnavailable
32-8M0062321OEMMercury QuicksilverHose -33 Inch$53.49 Available to Order: Usually ships within 10 days.
#8 861476 — VALVE, PCV (1 required per assembly)
21-861476PartPCV ValveUnavailable
21-8M2017060OEMMercury QuicksilverPCV Valve Positive Crankcase Ventilation$13.19 Available to Order: Usually ships within 10 days.
#9 15894 24 — HOSE, (16.50 Inches Bulk), Breather (1 required per assembly)
32-15894 24OEMMercury QuicksilverTubing - 16.5 InchUnavailable
#10 815504105 — CLAMP, Worm Gear (2 required per assembly)
54-815504105PartClampUnavailable
54-8M0188618OEMMercury QuicksilverCLAMPUnavailable
#11 807688T — TUBE, Oil Fill (1 required per assembly)
807688TOEMMercury QuicksilverOil Fill Tube$106.99 $90.94 3 In Stock.
#12 17339 1 — PUSH ROD (16 required per assembly)
17339 1OEMMercury QuicksilverPush Rod$49.49 Available to Order: Usually ships within 10 days.
#13 824317 1 — VALVE, Exhaust (8 required per assembly) (Standard)
824317 1OEMMercury QuicksilverExhaust Valve - StdUnavailable
#13 824318 1 — VALVE, Exhaust (AR required per assembly) (.030 Oversize)
824318 1OEMMercury QuicksilverExhaust Valve -.030Unavailable
#14 802555 — VALVE, Intake (8 required per assembly) (5.0L Standard)
802555OEMMercury QuicksilverIntake Valve$100.49 Available to Order: Usually ships within 10 days.
#14 809992 — VALVE, Intake (8 required per assembly) (5.7L Standard)
809992OEMMercury QuicksilverIntake Valve - StdUnavailable
#15 97664 1 — SEAL, Intake (8 required per assembly)
26-97664 1OEMMercury QuicksilverSeal$6.66 10+ In Stock.
26-8M0050563OEMMercury QuicksilverSeal$11.79 10+ In Stock.
#15 804507 — SEAL, Exhaust (8 required per assembly)
26-804507PartSealUnavailable
268M0150312OEMMercury QuicksilverSeal$26.09 Available to Order: Usually ships within 10 days.
#16 48347 1 — SPRING (16 required per assembly)
24-48347 1OEMMercury QuicksilverSpring$44.99 Available to Order: Usually ships within 10 days.
#17 48348 1 — CAP (16 required per assembly)
48348 1OEMMercury QuicksilverCap$19.59 6 In Stock.
#18 54797 1 — KEY (32 required per assembly)
28-54797 1OEMMercury QuicksilverValve Stem Keeper Key - Priced Individually$17.09 10+ In Stock.
#19 35329 — ARM KIT, Rocker (16 required per assembly)
35329OEMMercury QuicksilverRocker Arm KitUnavailable
8M0173156OEMMercury QuicksilverROCKER ARM KIT$73.99 Available to Order: Usually ships within 10 days.
#20 35331 — BALL, Rocker Arm (16 required per assembly)
35331OEMMercury QuicksilverBall - Rocker Arm$2.50 $2.13 10+ In Stock.
#21 34516 — NUT (16 required per assembly)
11-34516OEMMercury QuicksilverNut - Priced Individually$23.29 $19.80 10+ In Stock.
#22 802556 — CYLINDER HEAD ASSEMBLY, Cylinder (2 required per assembly) (5.0L)
938-802556PartCylinder HeadUnavailable
938-802556TPartCylinder HeadUnavailable
9388M0087884OEMMercury QuicksilverCylinder HeadUnavailable
#22 803860T — CYLINDER HEAD ASSEMBLY, Cylinder (2 required per assembly) (5.7L)
938-803860TOEMMercury QuicksilverCylinder HeadUnavailable
#23 34522 — STUD (AR required per assembly) (.003 Oversized)
16-34522OEMMercury QuicksilverStud$15.09 2 In Stock.
#23 34521 — STUD (AR required per assembly) (.013 Oversized)
16-34521OEMMercury QuicksilverStudUnavailable
#24 75611 1 — GASKET (2 required per assembly)
27-75611 1OEMMercury QuicksilverORD 27-75611001Unavailable
27-75611001OEMMercury QuicksilverGasket$65.99 $64.94 Available to Order: Usually ships within 10 days.
#25 11968 — SCREW, (.437-14 x 1.750) (16 required per assembly)
10-11968OEMMercury QuicksilverScrew$16.29 10+ In Stock.
#26 11967 1 — SCREW, (.437-14 x 3.00) (4 required per assembly)
10-11967 1OEMMercury QuicksilverScrew$17.89 3 In Stock.
#27 11966 — SCREW, (.437-14 x 3.750) (14 required per assembly)
10-11966OEMMercury QuicksilverScrew$17.89 10+ In Stock.
#28 878187 — SENSOR ASSEMBLY, Knock (2 required per assembly)
878187PartKnock Sensor
8M6003194OEMMercury QuicksilverKnock Sensor$77.99 In Stock
#29 826709 12 — NUT, (.375-16) Stainless Steel (2 required per assembly) 5.0L
11-826709 12OEMMercury QuicksilverNut, (.375-16) Stainless Steel$6.79 $3.81 10+ In Stock.
#30 863414 — STUD, Knock Sensor (2 required per assembly) (5.0L)
16-863414OEMMercury QuicksilverStud$29.99 Available to Order: Usually ships within 10 days.
#31 865982007 — SCREW, (.375-16 x 1.25) Hex Flange, Knock Sensor (2 required per assembly) (350 Mag / 6.2L)
10-865982007OEMMercury QuicksilverScrew - - Priced Individually$5.09 $4.33 3 In Stock.
Front Cover & Circulating Pump
11681_140 | 33 diagram reference numbers | 59 listed parts/equivalents
#1 850399 1 — PUMP ASSEMBLY, Water, Water (2 required per assembly)
850399 1PartWater Pump AssemblyUnavailable
18-3599-2AftermarketSierraCirculating Water Pump, Small Block Chevy$154.99 $147.47 7 In Stock.
46-8M0113734OEMMercury QuicksilverWater Pump Assembly$180.99 $178.72 In Stock
95-03599AftermarketEmpWater Circulating Pump, 3853850$142.99 $132.49 3 In Stock.
#2 49146 — PLUG, Pipe (1 required per assembly) (Standard Cooling)
22-49146OEMMercury QuicksilverPLUG,NLAUnavailable
#3 34897 — GASKET, Water Pump (2 required per assembly)
27-34897OEMMercury QuicksilverWater Pump Gasket$13.89 Available to Order: Usually ships within 10 days.
18-0891-9AftermarketSierraGasket 27-34897 2-Pack$6.27 Available to Order: Usually ships within 10 days.
#4 860346 — FITTING, Elbow (90 Degree) (.750), 90 Degrees (1 required per assembly) (Closed Cooling)
22-860346OEMMercury QuicksilverElbow$44.99 Available to Order: Usually ships within 10 days.
#5 35342 — STUD, (.312-24/.375-16 x 2.5625) (2 required per assembly)
16-35342PartStudUnavailable
16-8M0076418OEMMercury QuicksilverStud$9.69 2 In Stock.
#6 32132 — SCREW, (.375-16 x 1.750) (1 required per assembly)
10-32132OEMMercury QuicksilverScrew$2.99 4 In Stock.
#6 47688 — SCREW, (.375-16 x 2.750) (1 required per assembly)
10-47688OEMMercury QuicksilverScrew$3.59 Available to Order: Usually ships within 10 days.
#7 807729T — PULLEY, Water Pump (1 required per assembly) (Standard Cooling)
807729TPartWater Pump PulleyUnavailable
8M0153706OEMMercury QuicksilverWater Pump Pulley$63.49 $59.99 In Stock
#7 865047T — PULLEY, Water Pump (1 required per assembly) (Closed Cooling)
865047TOEMMercury QuicksilverWater Pump Pulley$216.99 Available to Order: Usually ships within 10 days.
#8 47277 — SCREW, (.312-24 x .750) (4 required per assembly)
10-47277OEMMercury QuicksilverScrew - Priced Individually$1.20 Available to Order: Usually ships within 10 days.
#9 864297001 — SENSOR ASSEMBLY, Crankshaft Position (1 required per assembly)
864297001PartCrank Position SensorUnavailable
864297T01OEMMercury QuicksilverCrank Position Sensor$313.49 In Stock
18-7556AftermarketSierraCrankShaft Sensor 864297001$180.50 In Stock
#10 885192 — O-RING (1 required per assembly)
25-885192OEMMercury QuicksilverO-ring, Crankshaft Position Sensor$43.99 Available to Order: Usually ships within 10 days.
#11 884018 — SCREW (1 required per assembly)
10-884018OEMMercury QuicksilverScrew$6.67 1 In Stock.
10-884018001OEMMercury QuicksilverScrew$16.69 Available to Order: Usually ships within 10 days.
#12 807730T — PULLEY, Crankshaft (1 required per assembly)
807730TOEMMercury QuicksilverCrankShaft Pulley$110.49 $105.99 In Stock
#13 34352 — SCREW, (.375-24 x .875) (3 required per assembly)
10-34352OEMMercury QuicksilverScrew - Priced Individually$1.20 5 In Stock.
#14 863397 — HARMONIC BALANCER (1 required per assembly)
863397OEMMercury QuicksilverHarmonic Balancer$294.99 Available to Order: Usually ships within 10 days.
#15 32515 — SCREW, (.437-20 x 2.50) (1 required per assembly)
10-32515OEMMercury QuicksilverScrew - Priced Individually$2.57 10+ In Stock.
10-8M2021674OEMMercury QuicksilverScrew$3.19 Available to Order: Usually ships within 10 days.
#16 39131 — LOCKWASHER, (.437) (1 required per assembly)
13-39131OEMMercury QuicksilverLockWasher$1.00 Available to Order: Usually ships within 10 days.
#17 71458 — WASHER (1 required per assembly)
12-71458OEMMercury QuicksilverWasherUnavailable
#18 863396 — TIMING COVER ASSEMBLY, Screws, Grommets, Oil Seal, and Gasket are Not Sold Seperately (1 required per assembly)
863396PartTiming Cover AssemblyUnavailable
863396001PartTiming CoverUnavailable
8M0150310PartCover-TIMINGUnavailable
8M0181746OEMMercury QuicksilverCOVER TIMING$309.49 In Stock
#19 863398 — RELUCTOR WHEEL (1 required per assembly)
863398OEMMercury QuicksilverWheel -reluctor$45.49 Available to Order: Usually ships within 10 days.
#20 845941 — RETAINER, Camshaft (1 required per assembly)
845941OEMMercury QuicksilverRetainer$27.59 Available to Order: Usually ships within 10 days.
#21 845943 — SCREW, (.250-20 x .500) (2 required per assembly)
10-845943OEMMercury QuicksilverScrew$7.09 Available to Order: Usually ships within 10 days.
#22 17161T — CHAIN, Timing (1 required per assembly)
17161TPartTiming ChainUnavailable
8M0187687OEMMercury QuicksilverCHAINUnavailable
#23 811659 1 — SPROCKET, Camshaft (1 required per assembly)
43-811659 1OEMMercury QuicksilverTiming Sprocket$171.49 Available to Order: Usually ships within 10 days.
#24 845942 — SCREW, (.312-18 x .750) (3 required per assembly)
10-845942PartScrewUnavailable
10-8M0043993OEMMercury QuicksilverScrew$1.70 Available to Order: Usually ships within 10 days.
#25 17160 — SPROCKET, Crankshaft (1 required per assembly)
43-17160PartSprocketUnavailable
43-8M0184208OEMMercury QuicksilverSPROCKETUnavailable
#26 816565 — PLUG, Pipe(.468) (1 required per assembly)
19-816565OEMMercury QuicksilverPlug$10.69 $9.09 9 In Stock.
#27 865615004 — BELT (1 required per assembly) (Standard Cooling) (Alpha) (With Power Steering)
57-865615004PartSerpentine Belt -1941 MMUnavailable
57-865615Q04OEMMercury QuicksilverSerpentine Belt$123.49 $122.99 In Stock
18-15101AftermarketSierraSerpentine Belt$111.03 4 In Stock.
#27 865615009 — BELT (1 required per assembly) (Standard Cooling) (Alpha) (CHS and Non Power Steering)
57-865615009OEMMercury QuicksilverSerpentine Belt -1780 Mm$61.45 1 In Stock.
57-865615Q09OEMMercury QuicksilverBelt$83.49 In Stock
#27 865615003 — BELT (1 required per assembly) (Standard Cooling) (Bravo) (With Power Steering)
57-865615003PartBELT-SERP-2704 MMUnavailable
57-57030AftermarketEmpSerpentine Belt, Mercury 57-865615-003, 57-865615Q03$129.99 $99.40 2 In Stock.
57-865615Q03OEMMercury QuicksilverBelt$163.99 $161.92 In Stock
18-15100AftermarketSierraBelt$147.86 7 In Stock.
#27 865615008 — BELT (1 required per assembly) (Standard Cooling) (Bravo) (CHS and Non Power Steering)
57-865615008PartSerpentine Belt -2535 MmUnavailable
57-865615Q08OEMMercury QuicksilverBelt$121.49 In Stock
18-15104AftermarketSierraBelt$107.99 $105.11 2 In Stock.
#27 865615006 — BELT (1 required per assembly) (Alpha/Bravo) (Closed Cooling) (With Power Steering)
57-865615006PartSerpentine Belt -2667 MMUnavailable
57-865615Q06OEMMercury QuicksilverBelt$141.49 $139.69 In Stock
18-15102AftermarketSierraBelt$115.80 1 In Stock.
Cylinder Block(Camshaft & Crankshaft)
11681_150 | 30 diagram reference numbers | 35 listed parts/equivalents
#1 818465 — BEARING SET, 5 Pair (1 required per assembly) (Standard) (5.0L/350)
23-818465OEMMercury QuicksilverBearing Set - Standard$163.99 Available to Order: Usually ships within 10 days.
#1 818466 — BEARING SET, 5 Pair (AR required per assembly) (.001 Undersized) (5.0L/350)
23-818466OEMMercury QuicksilverBearing Set - Crankshaft - .001 Undersize$121.49 Available to Order: Usually ships within 10 days.
#1 818467 — BEARING SET, 5 Pair (AR required per assembly) (.010 Undersize) (5.0L/350)
23-818467OEMMercury QuicksilverBearing Set -.010 Undersized$134.49 Available to Order: Usually ships within 10 days.
#1 818468 — BEARING SET, 5 Pair (AR required per assembly) (.020 Undersized) (5.0L/350)
23-818468OEMMercury QuicksilverBearing Set - Crankshaft - .020 Undersize$121.49 Available to Order: Usually ships within 10 days.
#1 849396 — BEARING SET, Standard - 5 Pair (1 required per assembly) (Standard) (6.2L)
31-849396OEMMercury QuicksilverBearing Set - Std$297.99 Available to Order: Usually ships within 10 days.
#1 849395 — BEARING SET, (.001 Oversize) 5 Pair (AR required per assembly) (.001 Oversized) (6.2L)
31-849395OEMMercury QuicksilverBearing Set - .001 OsUnavailable
#1 849394 — BEARING SET, (.001 Undersize) 5 Pair (AR required per assembly) (.001 Undersize) (6.2L)
31-849394OEMMercury QuicksilverBearing Set - .001 Us$253.49 Available to Order: Usually ships within 10 days.
#2 43504 — PIN, Dowel (2 required per assembly)
17-43504OEMMercury QuicksilverPin, Dowel (.25 Inch)$10.69 Available to Order: Usually ships within 10 days.
#3 9521 1 — CRANKSHAFT (1 required per assembly) (5.0/350)
429-9521 1PartCrankshaft,NLAUnavailable
429-8M0054508OEMMercury QuicksilverCrankShaftUnavailable
#3 863323T 1 — CRANKSHAFT (1 required per assembly) (6.2L)
429-863323T 1OEMMercury QuicksilverCrankShaft AssemblyUnavailable
#4 34466 — KEY, Crankshaft (2 required per assembly) (5.0L/350)
28-34466OEMMercury QuicksilverKey$3.69 9 In Stock.
#4 862594 — KEY, Crankshaft (1 required per assembly) (MX-6.2L)
28-862594OEMMercury QuicksilverKey$15.69 Available to Order: Usually ships within 10 days.
#5 NSS — NOT SOLD SEPARATE, Cap, Crankshaft Bearing (0 required per assembly)
NSSOEMMercury QuicksilverNOT SOLD SEPARATEUnavailable
#6 862567 1 — SCREW, Carnkshaft Bearing Cap (10 required per assembly)
10-862567 1OEMMercury QuicksilverBolt - Main Cap$64.99 Available to Order: Usually ships within 10 days.
#7 850090 — STUD, (.437-14/.375-16 x 3.360), Crankshaft Bearing Cap (5 required per assembly)
16-850090OEMMercury QuicksilverStud, NLA$34.99 $29.74 10+ In Stock.
#8 85674 — BEARING SET (1 required per assembly)
23-85674OEMMercury QuicksilverBearing Unit - Camshaft$91.49 Available to Order: Usually ships within 10 days.
#9 17341 — GUIDE, Lifter (8 required per assembly)
17341PartGuideUnavailable
17341TOEMMercury QuicksilverGuide$19.99 Available to Order: Usually ships within 10 days.
#10 17340T 1 — LIFTER, Roller (16 required per assembly)
17340T 1OEMMercury QuicksilverLifter$143.49 Available to Order: Usually ships within 10 days.
#11 811658 — CAMSHAFT (11 required per assembly) (5.0L)
431-811658OEMMercury QuicksilverCamShaft$580.49 Available to Order: Usually ships within 10 days.
#11 866022T — CAMSHAFT (1 required per assembly) (350 Mag)
431-866022TOEMMercury QuicksilverCamShaft$694.49 $691.64 Available to Order: Usually ships within 10 days.
#11 862562T 1 — CAMSHAFT (1 required per assembly) (6.2L)
431-862562T 1OEMMercury QuicksilverCamShaft$583.49 $583.36 Available to Order: Usually ships within 10 days.
#12 843378 — PIN, Dowel (1 required per assembly)
17-843378OEMMercury QuicksilverPin, Dowel (.250)$15.99 1 In Stock.
#13 811662 — RETAINER, Lifter Guide (1 required per assembly)
811662OEMMercury QuicksilverRetainer$53.49 Available to Order: Usually ships within 10 days.
#14 34500 — SCREW, (.312-18 x .625) (3 required per assembly)
10-34500OEMMercury QuicksilverScrew - Priced Individually$18.99 $4.54 10+ In Stock.
#15 864669 — FITTING (1 required per assembly)
22-864669OEMMercury QuicksilverFitting$31.09 Available to Order: Usually ships within 10 days.
#16 881879A 2 — SENSOR KIT, (100 PSI), Oil Pressure (1 required per assembly)
881879A 2OEMMercury QuicksilverSensor Kit -100PSI$140.75 $139.03 1 In Stock.
#17 815425T — SENDER ASSEMBLY, Oil Pressure (1 required per assembly)
815425TPartSenderUnavailable
8M0068784OEMMercury QuicksilverSender Assembly$133.49 $131.62 In Stock
18-5899AftermarketSierraSender, 982650, 815425T$42.99 $41.78 10+ In Stock.
75-24301AftermarketEmpMercruiser and OMC Oil Pressure Sender$42.49 $34.16 3 In Stock.
#17 37293T — SENDER ASSEMBLY, Oil Pressure (OPT required per assembly) (Dual Station)
37293TOEMMercury QuicksilverOil Pressure Sender$205.99 Available to Order: Usually ships within 10 days.
#18 26996 — LOCKWASHER, (#10) Stainless Steel (1 required per assembly)
13-26996OEMMercury QuicksilverLockWasher - Priced Individually$1.20 3 In Stock.
#19 68219 — NUT, (#10-32) Stainless Steel (1 required per assembly)
11-68219OEMMercury QuicksilverNut (#10-32)$2.99 10+ In Stock.
Pistons & Connecting Rods
11681_160 | 23 diagram reference numbers | 27 listed parts/equivalents
#1 802557T — PISTON ASSEMBLY, Standard (Standard) (8 required per assembly) (5.0L)
735-802557TPartPiston & Pin - StdUnavailable
7358M0040555OEMMercury QuicksilverPiston/Pin-STD$365.07 Available to Order: Usually ships within 10 days.
#1 802558T — PISTON ASSEMBLY, .030 Oversize (.030 Oversize) (AR required per assembly) (5.0L)
735-802558TOEMMercury QuicksilverPiston/Pin -.030Unavailable
#1 835001T — PISTON ASSEMBLY (Standard) (8 required per assembly) (350 MAG)
735-835001TOEMMercury QuicksilverPiston & Pin - Std$337.99 Available to Order: Usually ships within 10 days.
#1 835002T — PISTON ASSEMBLY (.5MM Oversize) (AR required per assembly) (350 MAG)
735-835002TOEMMercury QuicksilverPiston/Pin -.5MM$471.49 Available to Order: Usually ships within 10 days.
#1 864175A 3 — PISTON ASSEMBLY (Standard) (8 required per assembly) (6.2L)
735-864175A 3OEMMercury QuicksilverOrd 735-879345T9, NLAUnavailable
#2 802559 — RING SET, Piston (Standard) (8 required per assembly) (5.0L)
39-802559OEMMercury QuicksilverRings - Standard$167.99 Available to Order: Usually ships within 10 days.
#2 808570 — RING SET (AR required per assembly)
39-808570OEMMercury QuicksilverPiston Ring -.030$134.49 Available to Order: Usually ships within 10 days.
#2 801861 1 — RING SET, Piston (Standard) (8 required per assembly) (350 MAG)
39-801861 1OEMMercury QuicksilverRings - Standard$194.99 Available to Order: Usually ships within 10 days.
#2 835000 — RING SET, Piston (.5mm Oversize) (AR required per assembly) (350 MAG)
39-835000OEMMercury QuicksilverRings - .5MM$164.49 Available to Order: Usually ships within 10 days.
#2 864176A 1 — RING SET, Piston,(Standard) (8 required per assembly) (6.2L)
39-864176A 1OEMMercury QuicksilverRings$80.99 Available to Order: Usually ships within 10 days.
#3 8164T — CONNECTING ROD ASSEMBLY (8 required per assembly) (350 MAG)
614-8164TOEMMercury QuicksilverConnecting Rod Assembly$305.49 Available to Order: Usually ships within 10 days.
#3 862587A 3 — CONNECTING ROD ASSEMBLY (8 required per assembly) (6.2L)
614-862587A 3OEMMercury QuicksilverConnecting Rod AssemblyUnavailable
#4 85802 — SCREW, (.375-24 x Special), Connecting Rod (16 required per assembly)
10-85802OEMMercury QuicksilverScrewUnavailable
#5 37493 — NUT, (.375-24) (16 required per assembly) (350 MAG)
11-37493OEMMercury QuicksilverNut, (.375-24)$6.49 10+ In Stock.
#5 862573 — NUT (16 required per assembly) (MX-6.2L)
11-862573OEMMercury QuicksilverNut ( Mx-6.2l )$2.39 1 In Stock.
#6 85701 — BEARING (Standard),Connecting Rod (8 required per assembly) (350 MAG)
23-85701OEMMercury QuicksilverBearing - Std$18.49 Available to Order: Usually ships within 10 days.
#6 85702 — BEARING (.001 Undersize),Connecting Rod (AR required per assembly) (350 MAG)
23-85702OEMMercury QuicksilverBearing - Connecting Rod - .001 US$16.49 Available to Order: Usually ships within 10 days.
#6 85703 — BEARING (.002 Undersize),Connecting Rod (AR required per assembly) (350 MAG)
23-85703OEMMercury QuicksilverBearing - .002 US$15.59 Available to Order: Usually ships within 10 days.
#6 85704 — BEARING (.010 Undersize),Connecting Rod (AR required per assembly) (350 MAG)
23-85704OEMMercury QuicksilverBearing -.010 Us$15.39 1 In Stock.
#6 85705 — BEARING (.020 Undersize),Connecting Rod (AR required per assembly) (350 MAG)
23-85705OEMMercury QuicksilverBearing -.020 Us$15.39 9 In Stock.
#6 849391 — BEARING SET, Standard - 8 Pair (Standard),Connecting Rod (1 required per assembly) (6.2L)
31-849391PartBRG SET-STDUnavailable
849391TOEMMercury QuicksilverBearing Set - 8 Pair - Standard$329.99 Available to Order: Usually ships within 10 days.
#6 849392 — BEARING SET, (.001 Oversize) 8 Pair (.001 Oversize),Connecting Rod (1 required per assembly) (6.2L)
31-849392PartBRG SET-.001 OSUnavailable
31-8M0050745OEMMercury QuicksilverBearing Set-.001 OS$329.49 Available to Order: Usually ships within 10 days.
#6 849393 — BEARING SET, (.001 Undersize) 8 Pair (.001 Undersize),Connecting Rod (1 required per assembly) (6.2L)
31-849393OEMMercury QuicksilverBearing Set - .001 US$99.00 3 In Stock.
31-8M0053548OEMMercury QuicksilverBearing Set-.001 USUnavailable
Oil Pan & Oil Pump
11681_170 | 27 diagram reference numbers | 33 listed parts/equivalents
#1 809907 1 — PUMP ASSEMBLY, Oil (11 required per assembly)
809907 1PartOil PumpUnavailable
809907002OEMMercury QuicksilverOil Pump Assembly$469.49 Available to Order: Usually ships within 10 days.
#2 17346 — SCREW, Oil Pump (1 required per assembly)
10-17346OEMMercury QuicksilverScrew, NLA$18.59 $3.73 10+ In Stock.
#3 809909 — SCREEN, Oil Pump Pick Up (1 required per assembly)
809909OEMMercury QuicksilverScreen$41.49 Available to Order: Usually ships within 10 days.
#4 36184 — SHAFT (1 required per assembly)
36184OEMMercury QuicksilverShaft$27.89 Available to Order: Usually ships within 10 days.
#5 36183 — RETAINER (1 required per assembly)
23-36183OEMMercury QuicksilverRetainer$5.49 $3.09 1 In Stock.
#6 98602 1 — DEFLECTOR, Oil (1 required per assembly)
98602 1OEMMercury QuicksilverOil Deflector$29.69 Available to Order: Usually ships within 10 days.
#7 843378 — PIN, Dowel, Alignment, Oil Pump (1 required per assembly)
17-843378OEMMercury QuicksilverPin, Dowel (.250)$15.99 1 In Stock.
#8 845602 — NUT, (.375-16) (5 required per assembly)
11-845602OEMMercury QuicksilverNut (3/8-16)$7.09 Available to Order: Usually ships within 10 days.
#9 809910 — PAN, Oil (1 required per assembly)
809910PartOil PanUnavailable
18-0612AftermarketSierraOil Pan, 809910$318.99 $302.87 1 In Stock.
8M0150300OEMMercury QuicksilverPAN-OIL$458.99 In Stock
#10 13865 1 — GASKET, Oil Pan (1 required per assembly)
27-13865 1OEMMercury QuicksilverGasketUnavailable
#11 49955 — GASKET, Drain Screw (1 required per assembly)
27-49955PartOil Pump Drain GasketUnavailable
278M0077608OEMMercury QuicksilverGasket$17.89 Available to Order: Usually ships within 10 days.
#12 27339 — WASHER (1 required per assembly)
12-27339OEMMercury QuicksilverWasher, Bracket Screw$4.69 $0.94 10+ In Stock.
#13 14070 — SCREW, (.250-20 x .625) (14 required per assembly)
10-14070OEMMercury QuicksilverScrew$13.19 6 In Stock.
#14 11989 — STUD, (.312-18 x 1.6718) (2 required per assembly)
16-11989OEMMercury QuicksilverStud$16.09 Available to Order: Usually ships within 10 days.
#15 14257 — REINFORCEMENT, Port (1 required per assembly)
14257OEMMercury QuicksilverReinforcement$36.49 In Stock
#16 14256 — REINFORCEMENT, Starboard (1 required per assembly)
14256OEMMercury QuicksilverReinforcement$34.49 In Stock
#17 11971 — NUT, (.312-18) (4 required per assembly)
11-11971PartNut, Oil Pan StudUnavailable
11-8M0148822OEMMercury QuicksilverNUT$17.09 4 In Stock.
#18 862704A 4 — TUBE, Dipstick (1 required per assembly)
862704A 4OEMMercury QuicksilverDipstick Tube$124.99 $123.23 In Stock
#19 861942T 9 — DIPSTICK, Oil Level (1 required per assembly)
861942T 9OEMMercury QuicksilverDipstick$74.99 $71.99 In Stock
#20 805625 — CLIP, Dipstick Tube (1 required per assembly)
54-805625OEMMercury QuicksilverClip$19.03 1 In Stock.
#21 35366 — SCREW, (.250-20 x .563) (1 required per assembly)
10-35366OEMMercury QuicksilverScrew - Priced Individually$18.88 10+ In Stock.
10-8M0040582OEMMercury QuicksilverDipstick Tube MT Screw - Priced Individually$18.59 Available to Order: Usually ships within 10 days.
#22 865281 — HOSE, Oil Drain (1 required per assembly)
32-865281OEMMercury QuicksilverOil Drain Hose$99.49 Available to Order: Usually ships within 10 days.
#22 865280 — HOSE, Oil Drain (1 required per assembly) (Jackshaft Models)
32-865280OEMMercury QuicksilverOil Drain HoseUnavailable
#23 863481 — CLAMP, Ty Strap (1 required per assembly)
54-863481OEMMercury QuicksilverClamp$2.29 Available to Order: Usually ships within 10 days.
#24 862777 — FLANGE, Drain (1 required per assembly)
862777OEMMercury QuicksilverFlange - Oil Drain$16.49 Available to Order: Usually ships within 10 days.
#25 862827 — TETHER ASSEMBLY (1 required per assembly)
862827OEMMercury QuicksilverTether Assembly$100.61 1 In Stock.
#26 805524 — CLIP (1 required per assembly)
54-805524OEMMercury QuicksilverClip$15.49 Available to Order: Usually ships within 10 days.
Remote Oil Filter Assembly
11681_180 | 14 diagram reference numbers | 23 listed parts/equivalents
#1 863732T 1 — BRACKET, Oil Filter (1 required per assembly)
863732T 1OEMMercury QuicksilverBracket Assembly$99.99 Available to Order: Usually ships within 10 days.
#2 863485 — FITTING (1 required per assembly)
22-863485OEMMercury QuicksilverFitting$9.99 Available to Order: Usually ships within 10 days.
#3 98261 — SCREW, (.375-16 x .750) (1 required per assembly)
10-98261OEMMercury QuicksilverScrew$1.20 6 In Stock.
#4 802885Q — FILTER, Oil (1 required per assembly) (Qicksilver Brand)
35-802885QPartOil FilterUnavailable
35-866340Q02PartOil FilterUnavailable
35-866340K01OEMMercury QuicksilverOil Filter$15.69 10+ In Stock.
35-866340Q03OEMMercury QuicksilverOil Filter - Priced Individually$14.19 2 In Stock.
18-7876-1AftermarketSierraOil Filter - GM/Chevy Long$10.99 $10.62 10+ In Stock.
35-57811AftermarketEmpOil Filter, Long$11.99 $10.35 10+ In Stock.
35-57801AftermarketEmpOil Filter, Standard Length Canister$10.69 $8.88 10+ In Stock.
#4 802885T — FILTER, Oil (1 required per assembly) (Mercury Brand)
35-802885TPartOil FilterUnavailable
18-7824-2AftermarketSierraOil Filter, Short$9.99 $9.32 10+ In Stock.
#5 864924 — HOSE, Oil (1 required per assembly) (To Adaptor)
32-864924OEMMercury QuicksilverOil Line$86.99 In Stock
#6 864925 — HOSE, Oil (1 required per assembly) (From Adaptor)
32-864925OEMMercury QuicksilverOil Line$101.99 Available to Order: Usually ships within 10 days.
#7 818400A 1 — ADAPTOR (1 required per assembly)
35-818400A 1OEMMercury QuicksilverADAPTER
#8 42077 — SEAL (1 required per assembly)
26-42077OEMMercury QuicksilverSeal$12.49 3 In Stock.
#9 806121 — FITTING (1 required per assembly)
22-806121OEMMercury QuicksilverFitting$31.19 In Stock
#10 91892 — GASKET (1 required per assembly)
27-91892PartAdaptor GasketUnavailable
27-8M0188440OEMMercury QuicksilverGASKET Note: Must be ordered in multiples of 2Unavailable
#11 53338 — VALVE ASSEMBLY, Filter (1 required per assembly)
53338OEMMercury QuicksilverValve Assembly-Filter *$36.49 4 In Stock.
71920OEMMercury QuicksilverOil Fill Valve Assembly$83.49 Available to Order: Usually ships within 10 days.
#12 54786 — SCREW, (.312-18 x 1.250) (2 required per assembly)
10-54786OEMMercury QuicksilverScrew$18.19 Available to Order: Usually ships within 10 days.
#13 20553 — WASHER, (.406 x .734 x .063) (2 required per assembly)
12-20553OEMMercury QuicksilverWasher - Priced Individually$1.50 10+ In Stock.
Cylinder Block(Flywheel Housing & Rear Main Seal)
11681_190 | 44 diagram reference numbers | 64 listed parts/equivalents
#1 843379 — PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location (2 required per assembly)
17-843379OEMMercury QuicksilverPin -DowelUnavailable
#2 34270 — EXPANSION PLUG, (1.625), Engine Core Hole (8 required per assembly)
19-34270OEMMercury QuicksilverFreeze Plug, 1-5/8 Inch$9.79 10+ In Stock.
#3 48340 — PLUG, (.250-18 x .41), Oil Galley (4 required per assembly)
22-48340PartPlugUnavailable
22-32561OEMMercury QuicksilverPlug - Priced Individually$4.43 10+ In Stock.
22-8M0204652OEMMercury QuicksilverPLUG @2Unavailable
#4 72640 — PLUG, Expansion, Camshaft Bearing Hole (1 required per assembly)
22-72640OEMMercury QuicksilverPlug$14.19 Available to Order: Usually ships within 10 days.
#5 14827 — STUD, (.250-20 x 2.180) (2 required per assembly)
16-14827OEMMercury QuicksilverStud$17.89 Available to Order: Usually ships within 10 days.
#6 881715 — GASKET, Crankshaft Oil Seal Housing (1 required per assembly)
27-881715OEMMercury QuicksilverCylinder Block Gasket$19.89 Available to Order: Usually ships within 10 days.
18-0322-9AftermarketSierraGasket 27-139376 2-Pack$25.99 $24.70 Available to Order: Usually ships within 10 days.
#7 852940 — HOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal (1 required per assembly)
852940OEMMercury QuicksilverOil Seal Housing Assembly$231.99 Available to Order: Usually ships within 10 days.
#8 852941 — SEAL, Cranskshaft Oil (1 required per assembly)
26-852941OEMMercury QuicksilverSeal$149.49 In Stock
#9 11989 — STUD, (.312-18 x 1.6718) (2 required per assembly)
16-11989OEMMercury QuicksilverStud$16.09 Available to Order: Usually ships within 10 days.
#10 816730 1 — NUT (1 required per assembly)
11-816730 1PartNutUnavailable
11-8M0098315OEMMercury QuicksilverNut$4.19 Available to Order: Usually ships within 10 days.
#11 14242 — BOLT, (.250-20 x .875) (2 required per assembly)
10-14242OEMMercury QuicksilverBolt, NLA$23.59 $5.66 10+ In Stock.
#12 14243 — BOLT, (.250-20 x 1.750) (1 required per assembly)
10-14243PartBOLTUnavailable
10-8M0064241OEMMercury QuicksilverBolt$9.09 Available to Order: Usually ships within 10 days.
#13 11971 — NUT, (.312-18) (2 required per assembly)
11-11971PartNut, Oil Pan StudUnavailable
11-8M0148822OEMMercury QuicksilverNUT$17.09 4 In Stock.
#14 14263 — PIN, Dowel, Oil Seal Housing Location (1 required per assembly)
17-14263OEMMercury QuicksilverPin -Dowel, NLA$6.79 $1.36 10+ In Stock.
#15 807260A 2 — COVER KIT, Flywheel (1 required per assembly)
807260A 2OEMMercury QuicksilverCover Assembly$96.49 In Stock
#NS 807296 — NUT, (.250-20) (2 required per assembly)
11-807296OEMMercury QuicksilverWell Nut - Priced Individually$2.79 Available to Order: Usually ships within 10 days.
#16 76596 — SCREW, (.250-20 x 1.250) (2 required per assembly)
10-76596OEMMercury QuicksilverScrew$2.49 Available to Order: Usually ships within 10 days.
#17 9520 — FLYWHEEL (1 required per assembly)
222-9520PartFlywheelUnavailable
222-9520001PartFlywheelUnavailable
222-8M0047213OEMMercury QuicksilverFlywheel$998.49 Available to Order: Usually ships within 10 days.
#18 43504 — PIN, Dowel, Flywheel (2 required per assembly)
17-43504OEMMercury QuicksilverPin, Dowel (.25 Inch)$10.69 Available to Order: Usually ships within 10 days.
#19 845757 — SCREW, (.437-20 x 1.00) (6 required per assembly)
10-845757OEMMercury QuicksilverScrew$5.60 4 In Stock.
10-8M0214958OEMMercury QuicksilverFlywheel MOUNTING SCREW ZZ$5.89 Available to Order: Usually ships within 10 days.
#20 18643A 5 — COUPLING ASSEMBLY (1 required per assembly) (Alpha)
18643A 5OEMMercury QuicksilverCoupling Assembly$400.49 In Stock
93-93203AftermarketEmpMercruiser Coupling 18643A5$299.99 $263.03 10+ In Stock.
#NS 74036 — FITTING, Grease (1 required per assembly) (Alpha)
22-74036PartFitting - Priced IndividuallyUnavailable
228M0169589OEMMercury QuicksilverFitting Note: Priced Individually$4.79 Available to Order: Usually ships within 10 days.
#21 18644 — BUMPER, Rubber (3 required per assembly) (Alpha)
18644OEMMercury QuicksilverBumper$3.79 3 In Stock.
#22 14883 — SCREW, (.375-16 x 1.12) (3 required per assembly) (Alpha)
10-14883OEMMercury QuicksilverScrew$1.39 2 In Stock.
10-8M0204643OEMMercury QuicksilverSCREWUnavailable
#23 13510 — WASHER (3 required per assembly) (Alpha)
12-13510OEMMercury QuicksilverWasher, Coupling Screw$9.49 $5.33 4 In Stock.
#24 861523A 9 — COUPLER ASSEMBLY, Engine - Short Aluminum Hub (1 required per assembly) (Bravo and All Jacksahft Models)
861523A 9PartCoupler AssemblyUnavailable
8M0098795OEMMercury QuicksilverCoupler Assembly$744.49 In Stock
#24 861523A11 — COUPLER ASSEMBLY, Engine (OPT required per assembly) (Bravo) (Steel Hub for Work Application)
861523A11OEMMercury QuicksilverCoupler Assembly$988.49 In Stock
#25 49099 — FITTING (2 required per assembly) (Bravo)
22-49099PartFittingUnavailable
22-8M0169590OEMMercury QuicksilverFITTINGUnavailable
#26 863480 — SCREW, (.375-16 x 1.125) (6 required per assembly) (Bravo)
10-863480OEMMercury QuicksilverScrew$3.79 Available to Order: Usually ships within 10 days.
#28 865657A03 — HOUSING ASSEMBLY, Flywheel, Flywheel (1 required per assembly) (Alpha/Bravo)
865657A03OEMMercury QuicksilverFlywheel Housing$990.99 Available to Order: Usually ships within 10 days.
#29 865329A02 — MOUNT KIT, Rubber (1 required per assembly) (Alpha/Bravo)
865329A02OEMMercury QuicksilverMotor Mount KitUnavailable
18-2193AftermarketSierraEngine Mount, Single Mount Only, 99297A1$58.40 In Stock
99297A 1OEMMercury QuicksilverMotor Mount$31.50 1 In Stock.
8M0103028OEMMercury QuicksilverMount Kit$118.69 2 In Stock.
#30 99322 — SPACER (2 required per assembly)
23-99322OEMMercury QuicksilverSpacer - Ruber Mount$6.69 10+ In Stock.
#31 97934 — SCREW, (.500-20 x 5.370) Special (2 required per assembly)
10-97934PartScrewUnavailable
10-8M0215010OEMMercury QuicksilverScrew$5.99 Available to Order: Usually ships within 10 days.
#32 35777 — WASHER, (.5156 x 1.375 x .125) Aluminum (2 required per assembly)
12-35777OEMMercury QuicksilverWasher, (.5156 X 1.375 X .125) Aluminum$2.59 Available to Order: Usually ships within 10 days.
#33 99299 — SPACER, (.520 x .870 x .630) (2 required per assembly)
23-99299OEMMercury QuicksilverSpacer - .52 X .87 X .63$7.49 1 In Stock.
#34 35048 — LOCKWASHER, (.375) (2 required per assembly)
13-35048OEMMercury QuicksilverLockWasher - Priced Individually$1.20 10+ In Stock.
#35 64066 — STUD, (.375-16 x 2.750) Special (2 required per assembly)
16-64066PartStudUnavailable
16-861316OEMMercury QuicksilverStud$15.09 Available to Order: Usually ships within 10 days.
#35 861316 — STUD (2 required per assembly) (Horizon)
—No orderable products listed under this reference.
#36 863332 — NUT, (.500-20) Aluminum (2 required per assembly)
11-863332OEMMercury QuicksilverNut, (.500-20) Aluminum$7.19 Available to Order: Usually ships within 10 days.
18-3728AftermarketSierraNut, 11-99298, 11-863332$4.85 Available to Order: Usually ships within 10 days.
#37 20572 — WASHER, (.390 x .750 x .093) (1 required per assembly)
12-20572OEMMercury QuicksilverWasher, (.390 X .750 X .093)$1.60 Available to Order: Usually ships within 10 days.
#38 37612 — SCREW, (.375-16 x 1.250) (3 required per assembly)
10-37612OEMMercury QuicksilverScrew - Priced Individually$2.49 1 In Stock.
#38 32132 — SCREW, (.375-16 x 1.750) (1 required per assembly)
10-32132OEMMercury QuicksilverScrew$2.99 4 In Stock.
#39 32219 — NUT, (.375-16) (1 required per assembly)
11-32219OEMMercury QuicksilverNut (3/8-16)$2.79 10+ In Stock.
#40 62826A 6 — CABLE ASSEMBLY, Ground (13.00 Inches) Black (2 required per assembly)
84-62826A 6PartCable AssemblyUnavailable
84-62826T06OEMMercury QuicksilverCable Assembly$16.99 Available to Order: Usually ships within 10 days.
Exhaust Manifold & Elbow
11681_200 | 20 diagram reference numbers | 35 listed parts/equivalents
#1 865049T01 — MANIFOLD ASSEMBLY, Exhaust, Exhaust (2 required per assembly)
865049T01PartExhaust ManifoldUnavailable
865735A02PartExhaust Manifold, Dry JointUnavailable
18-1843AftermarketSierraExhaust Manifold, Dry Joint, V8 Small Block GM$540.22 4 In Stock.
8M0185794OEMMercury QuicksilverExhaust Manifold$534.99 In Stock
#3 39072 1 — PLUG, Pipe (.125-27) Brass (2 required per assembly)
22-39072 1OEMMercury QuicksilverPlug - Priced Individually$9.29 1 In Stock.
#5 33395 — GASKET, Manifold (2 required per assembly)
27-33395OEMMercury QuicksilverExhaust Manifold Gasket$14.19 7 In Stock.
#6 53728 — SCREW, (.375-16 x 4.75) (8 required per assembly)
10-53728PartScrewUnavailable
10-8M0214937OEMMercury QuicksilverSM BLOCK EXH MANI BOLT Note: Priced Individually MZ$5.09 4 In Stock.
#8 863786A 1 — FITTING ASSEMBLY, Drain (2 required per assembly) (Standard Cooling)
22-863786A 1OEMMercury QuicksilverT Fitting Assembly$53.49 $52.60 In Stock
22-05158AftermarketEmpDrain T-Fitting 863786A 1$44.99 $34.41 1 In Stock.
#9 864701 — O-RING, (1.112 x .103) (1 required per assembly)
25-864701OEMMercury QuicksilverO-ring, (1.112 X .103)$3.59 Available to Order: Usually ships within 10 days.
#10 863129 — BALL, Check (1 required per assembly)
30-863129OEMMercury QuicksilverBall - Check$2.79 Available to Order: Usually ships within 10 days.
#11 862994T — FITTING (1 required per assembly)
862994TOEMMercury QuicksilverConnector$9.49 Available to Order: Usually ships within 10 days.
#12 864850A02 — GASKET, Elbow, Resitrictor (2 required per assembly) (Standard Cooling)
27-864850A02OEMMercury QuicksilverElbow Gasket$67.99 In Stock
18-0722AftermarketSierraRiser Gasket, Restricted, Dry Joint, 27-864850A02$77.99 $74.90 10+ In Stock.
27-14850AftermarketEmpRiser Gasket, Dry Joint, Restricted, 27-864850A02$54.99 $42.06 7 In Stock.
#12 864549A02 — GASKET, Elbow, Block Off (2 required per assembly) (Closed Cooling)
27-864549A02OEMMercury QuicksilverElbow Gasket$56.49 $55.99 In Stock
18-0720AftermarketSierraRiser Gasket, Closed, Dry Joint, 27-864549A02$76.99 $74.38 5 In Stock.
27-14549AftermarketEmpRiser Gasket, Dry Joint, Closed, 27-864549A02$51.49 $39.38 8 In Stock.
#13 864591T02 — ELBOW ASSEMBLY (2 required per assembly)
864591T02OEMMercury QuicksilverExhaust Elbow$475.49 In Stock
18-1845AftermarketSierraExhaust Elbow, Dry Joint, V6 and V8$458.19 $438.16 In Stock
MC-20-864591AftermarketBarrDry Joint Riser, 864591T02 (14 degree)$580.99 $444.74 10+ In Stock.
#14 864689 — PLUG, Expansion (4 required per assembly)
19-864689OEMMercury QuicksilverPlug -expand - Priced Individually$2.79 4 In Stock.
#15 73379 — PLUG, (.250-18) (1 required per assembly)
22-73379PartPlug - Priced IndividuallyUnavailable
22-8M0180564OEMMercury QuicksilverPlug, Sold Individually$7.59 3 In Stock.
#16 42861 1 — FITTING, Pipe - Brass (.750-14) (2 required per assembly)
22-42861 1OEMMercury QuicksilverPipe Plug$6.99 10+ In Stock.
#17 863804 — FITTING, (.750-14) (1 required per assembly)
22-863804PartFittingUnavailable
22-866725OEMMercury QuicksilverBrass Fitting, 3/4 NPT$18.29 1 In Stock.
18-4461AftermarketSierraBrass Connector$13.99 $13.86 1 In Stock.
#17 865159 — FITTING, 45 Degree (1 required per assembly)
22-865159OEMMercury QuicksilverFitting$25.39 In Stock
#18 865982057 — SCREW, (.375-16 x 7.50), Exhaust Elbow (8 required per assembly)
10-865982057OEMMercury QuicksilverScrew$19.99 $16.92 1 In Stock.
10-8M0214977OEMMercury QuicksilverSCREW
#19 16604 — FITTING, Straight (.125-27) (1 required per assembly)
22-16604OEMMercury QuicksilverFitting$11.49 Available to Order: Usually ships within 10 days.
#20 12524 — PLUG, (.375-18 x .475) Brass (2 required per assembly)
22-12524OEMMercury QuicksilverPlug$5.09 Available to Order: Usually ships within 10 days.
#22 864263 — BRACKET, Flushing Attachment (1 required per assembly)
864263OEMMercury QuicksilverBracket -Flush$11.79 Available to Order: Usually ships within 10 days.
Exhaust Risers
11681_210 | 23 diagram reference numbers | 35 listed parts/equivalents
#1 865995A01 — RISER EXTENSION KIT, 1.7 Inch (1 required per assembly) (Standard Cooling)
865995A01OEMMercury QuicksilverDry Joint Spacer Kit, 1.7 Inch$816.49 In Stock
MC-20-865996A3AftermarketBarrDry Joint Spacer Kit, 1.7 Inch$633.99 $485.64 2 In Stock.
#1 865996A01 — RISER EXTENSION KIT, 1.7 Inch (1 required per assembly) (Closed Cooling)
865996A01OEMMercury QuicksilverExhaust Riser$718.49 In Stock
#2 NSS — NOT SOLD SEPARATE, 1.7 Inch Riser (2 required per assembly)
NSSOEMMercury QuicksilverNOT SOLD SEPARATEUnavailable
#3 864689 — PLUG (2 required per assembly)
19-864689OEMMercury QuicksilverPlug -expand - Priced Individually$2.79 4 In Stock.
#4 42861 1 — FITTING, Pipe - Brass (.750-14) (2 required per assembly)
22-42861 1OEMMercury QuicksilverPipe Plug$6.99 10+ In Stock.
#5 864850A02 — GASKET, Restrictor (2 required per assembly)
27-864850A02OEMMercury QuicksilverElbow Gasket$67.99 In Stock
18-0722AftermarketSierraRiser Gasket, Restricted, Dry Joint, 27-864850A02$77.99 $74.90 10+ In Stock.
27-14850AftermarketEmpRiser Gasket, Dry Joint, Restricted, 27-864850A02$54.99 $42.06 7 In Stock.
#5 864549A02 — GASKET, Block Off (2 required per assembly)
27-864549A02OEMMercury QuicksilverElbow Gasket$56.49 $55.99 In Stock
18-0720AftermarketSierraRiser Gasket, Closed, Dry Joint, 27-864549A02$76.99 $74.38 5 In Stock.
27-14549AftermarketEmpRiser Gasket, Dry Joint, Closed, 27-864549A02$51.49 $39.38 8 In Stock.
#5 864547A02 — GASKET, Full Flow (2 required per assembly)
27-864547A02OEMMercury QuicksilverElbow Gasket$66.99 $60.18 In Stock
18-0721AftermarketSierraRiser Gasket, Open, Dry Joint, 27-864547A02$91.99 $89.09 10+ In Stock.
27-14547AftermarketEmpRiser Gasket, Dry Joint, Open, 27-864547A02$52.49 $40.14 7 In Stock.
#6 865982071 — SCREW, (.375-16 x 9.250) (8 required per assembly)
10-865982071PartScrewUnavailable
108M0214978OEMMercury QuicksilverSCREW$21.59 Available to Order: Usually ships within 10 days.
#7 860008 — SCREW, (.250-20 x .625) Torx (1 required per assembly)
10-860008OEMMercury QuicksilverBolt$3.19 Available to Order: Usually ships within 10 days.
#8 863714T01 — BRACKET (1 required per assembly)
863714T01OEMMercury QuicksilverBracket$28.99 $24.64 4 In Stock.
#9 864378 — SCREW, (.250-20 x .375) Torx (1 required per assembly)
10-864378OEMMercury QuicksilverScrew - Priced Individually$2.29 Available to Order: Usually ships within 10 days.
#10 864929A 3 — RISER EXTENSION KIT, 3 Inch (1 required per assembly) (Standard Cooling)
864929A 3OEMMercury QuicksilverRiser Kit$922.99 In Stock
18-1847KAftermarketSierraDry Joint Spacer Kit, 3 inch - Standard Cooling Mercruiser$829.99 $829.20 Available to Order: Usually ships within 10 days.
MC-20-864929A3AftermarketBarrRiser Spacer Kit 3 Inch - Dry Joint Standard Cooling$744.99 $570.84 1 In Stock.
#10 864929A 4 — RISER EXTENSION KIT, 3 Inch (1 required per assembly) (Closed Cooling)
864929A 4OEMMercury QuicksilverRiser Kit$869.49 In Stock
#14 865982077 — SCREW, (.375-16 x 10.500) (8 required per assembly)
10-865982077OEMMercury QuicksilverScrew$40.99 Available to Order: Usually ships within 10 days.
#18 866208A02 — RISER EXTENSION KIT, 4.7 Inch (1 required per assembly) (Standard Cooling)
866208A02OEMMercury Quicksilver4.7 Riser Kit$734.99 In Stock
#18 866208A03 — RISER EXTENSION KIT, 4.7 Inch (1 required per assembly) (Closed Cooling)
866208A03OEMMercury Quicksilver4.7 Riser Kit$718.99 Available to Order: Usually ships within 10 days.
#22 865982092 — SCREW, (.375-16 x 12.380) (8 required per assembly)
10-865982092OEMMercury QuicksilverScrew$30.99 Available to Order: Usually ships within 10 days.
#24 863715T01 — BRACKET (2 required per assembly)
863715T01OEMMercury QuicksilverECM Bracket$35.49 Available to Order: Usually ships within 10 days.
#26 864908A 1 — RISER EXTENSION KIT, 6 Inch (1 required per assembly) (Standard Cooling)
864908A 1OEMMercury QuicksilverRiser Kit 6 Inch - Dry Joint Kit for Standard Cooling$931.49 In Stock
MC-20-864908A1AftermarketBarrRiser Spacer Kit 6 Inch - Dry Joint Std Cooling$737.99 $565.73 1 In Stock.
#26 864908A 2 — RISER EXTENSION KIT, 6 Inch (1 required per assembly) (Closed Cooling)
864908A 2OEMMercury QuicksilverRiser Kit 6 Inch$885.49 Available to Order: Usually ships within 10 days.
#30 865982005 — SCREW, (.375-16 x 1.00) (8 required per assembly)
10-865982005OEMMercury QuicksilverScrew$2.59 5 In Stock.
#31 865982057 — SCREW, (.375-16 x 7.50) (8 required per assembly)
10-865982057OEMMercury QuicksilverScrew$19.99 $16.92 1 In Stock.
10-8M0214977OEMMercury QuicksilverSCREW
Thermostat & Housing(Single & 3 Point Drain)
11681_220 | 23 diagram reference numbers | 42 listed parts/equivalents
#1 863457A 2 — HOUSING ASSEMBLY, Thermostat (1 required per assembly)
863457A 2OEMMercury QuicksilverThermostat Housing$435.99 In Stock
#5 68219 — NUT, (#10-32) Stainless Steel (1 required per assembly)
11-68219OEMMercury QuicksilverNut (#10-32)$2.99 10+ In Stock.
#6 805218T — SENSOR (1 required per assembly)
805218TOEMMercury QuicksilverTemperature Sensor$80.99 $69.49 In Stock
18-7600AftermarketSierraSensor 805218T$57.49 $56.90 4 In Stock.
75-03752AftermarketEmpTemperature Sensor$58.99 $45.11 1 In Stock.
#7 806871 — GASKET, Thermostat Housing (1 required per assembly)
27-806871PartThermostat GasketUnavailable
27-8M0204687PartThermostat Gasket, Priced IndividuallyUnavailable
27-8M0238323OEMMercury QuicksilverGASKET$10.20 Available to Order: Usually ships within 10 days.
#8 807252T 2 — THERMOSTAT, 71°C (160°F) (1 required per assembly)
807252T 2PartThermostat, 160 DegreesUnavailable
8M0091470PartThermostat, 160 DegreesUnavailable
18-3649AftermarketSierraThermostat, 160 Degree, 807252T2$27.89 10+ In Stock.
8M0109441OEMMercury QuicksilverThermostat, 160 Degree$34.49 3 In Stock.
75-03058AftermarketEmpThermostat 807252T2, 8M0109441 160 Degree$27.49 $21.63 Available to Order: Usually ships within 10 days.
#9 806922 — SLEEVE, Thermostat (1 required per assembly)
23-806922PartSleeveUnavailable
23-8M0214947OEMMercury QuicksilverThermostat Housing Sleeve, Plastic$17.89 2 In Stock.
#10 53045 1 — GASKET, Lower Thermostat Housing (1 required per assembly)
27-53045 1OEMMercury QuicksilverGasket - Priced Individually$5.69 6 In Stock.
18-2917-9AftermarketSierraGasket 27-530451 2-Pack$7.99 $7.95 Available to Order: Usually ships within 10 days.
27-53045Q01OEMMercury QuicksilverGasket$5.89 5 In Stock.
#11 40107 75 — SCREW, (M8 x 75) (2 required per assembly)
10-40107 75OEMMercury QuicksilverScrew$12.89 Available to Order: Usually ships within 10 days.
#12 12552 — LIFTING EYE (1 required per assembly)
12552OEMMercury QuicksilverLifting Eye$19.89 Available to Order: Usually ships within 10 days.
#13 806608A 1 — PLUG KIT, (.500-13) Royal Blue (1 required per assembly)
22-806608A 1PartPlug Kit, Priced IndividuallyUnavailable
22-806608A02PartPlug Assembly - Priced IndividuallyUnavailable
18-4226AftermarketSierraBlue Drain Plug, 22-806608A1$4.10 10+ In Stock.
22-806608Q01OEMMercury QuicksilverPlug - Priced Individually$10.29 1 In Stock.
22-8M0119211OEMMercury QuicksilverDrain Plug, Priced Individually, .5 inch x 13$10.19 8 In Stock.
#14 32509 — O-RING, (.489 x .070) (1 required per assembly)
25-32509OEMMercury QuicksilverO-ring, (.489 X .070)$2.39 10+ In Stock.
18-7165-9AftermarketSierraO-Ring (PK5) , 0304174$10.38 Available to Order: Usually ships within 10 days.
#15 864398T 1 — HOUSING ASSEMBLY, Thermostat (1 required per assembly) (Mechanical Throttle and Shift)
864398T 1OEMMercury QuicksilverThermostat Housing$430.49 Available to Order: Usually ships within 10 days.
#15 864398T04 — HOUSING ASSEMBLY, Thermostat (1 required per assembly) (Digital Throttle and Shift)
864398T04OEMMercury QuicksilverThermostat HousingUnavailable
#17 32803 — PLUG, Pipe (.375-18) Brass (2 required per assembly)
22-32803PartPlugUnavailable
18-4264AftermarketSierraPipe Plug, 3/8-18 NPT$5.49 $4.69 8 In Stock.
228M0180565OEMMercury QuicksilverPLUG$7.99 Available to Order: Usually ships within 10 days.
#18 807134 1 — SEAL, Thermostat (1 required per assembly)
25-807134 1OEMMercury QuicksilverThermostat Seal$9.89 2 In Stock.
#19 40011151 — SCREW, (M8 x 35) Stainless Steel (2 required per assembly)
10-40011151OEMMercury QuicksilverScrew$6.89 2 In Stock.
#21 806490T — SENDER, Temperature (1 required per assembly)
806490TOEMMercury QuicksilverWater Temperature Sender$41.49 1 In Stock.
18-5897AftermarketSierraSender, 97257A1$36.01 10+ In Stock.
#21 49734 — SENDER, Water Temperature (OPT required per assembly) (Dual Station)
49734OEMMercury QuicksilverSender Assembly$90.49 Available to Order: Usually ships within 10 days.
#22 26996 — LOCKWASHER, (#10) Stainless Steel (1 required per assembly)
13-26996OEMMercury QuicksilverLockWasher - Priced Individually$1.20 3 In Stock.
#24 864493 — THERMOSTAT, 77°C (170°F) (1 required per assembly)
864493OEMMercury QuicksilverThermostat, 170 Degrees$33.99 In Stock
#25 807075A 1 — COVER, Thermostat Housing (1 required per assembly)
807075A 1OEMMercury QuicksilverThermostat Cover Kit$230.49 Available to Order: Usually ships within 10 days.
#26 818390 — DRAIN COCK (1 required per assembly)
22-818390OEMMercury QuicksilverPlug Assembly$20.39 Available to Order: Usually ships within 10 days.
#27 29198 — SCREW AND LOCKWASHER, (.312-18 x .875), With Lockwasher (2 required per assembly)
10-29198OEMMercury QuicksilverScrew w/ Lw - Priced Individually$4.59 $2.58 1 In Stock.
Thermostat & Housing(7 Point Drain)
11681_230 | 19 diagram reference numbers | 34 listed parts/equivalents
#1 864592T 1 — HOUSING, Thermostat, Thermostat (1 required per assembly)
864592T 1OEMMercury QuicksilverThermostat HousingUnavailable
#2 32803 — PLUG, Pipe (.375-18) Brass (1 required per assembly)
22-32803PartPlugUnavailable
18-4264AftermarketSierraPipe Plug, 3/8-18 NPT$5.49 $4.69 8 In Stock.
228M0180565OEMMercury QuicksilverPLUG$7.99 Available to Order: Usually ships within 10 days.
#3 806490T — SENDER, Water Temperature (1 required per assembly)
806490TOEMMercury QuicksilverWater Temperature Sender$41.49 1 In Stock.
18-5897AftermarketSierraSender, 97257A1$36.01 10+ In Stock.
#3 49734 — SENDER, Water Temperature (OPT required per assembly) (Dual Station)
49734OEMMercury QuicksilverSender Assembly$90.49 Available to Order: Usually ships within 10 days.
#4 26996 — LOCKWASHER, (#10) Stainless Steel (1 required per assembly)
13-26996OEMMercury QuicksilverLockWasher - Priced Individually$1.20 3 In Stock.
#5 68219 — NUT, (#10-32) Stainless Steel (1 required per assembly)
11-68219OEMMercury QuicksilverNut (#10-32)$2.99 10+ In Stock.
#6 805218T — SENSOR (1 required per assembly)
805218TOEMMercury QuicksilverTemperature Sensor$80.99 $69.49 In Stock
18-7600AftermarketSierraSensor 805218T$57.49 $56.90 4 In Stock.
75-03752AftermarketEmpTemperature Sensor$58.99 $45.11 1 In Stock.
#7 806871 — GASKET, Thermostat Housing (1 required per assembly)
27-806871PartThermostat GasketUnavailable
27-8M0204687PartThermostat Gasket, Priced IndividuallyUnavailable
27-8M0238323OEMMercury QuicksilverGASKET$10.20 Available to Order: Usually ships within 10 days.
#8 807252T 2 — THERMOSTAT, 71°C (160°F) (1 required per assembly)
807252T 2PartThermostat, 160 DegreesUnavailable
8M0091470PartThermostat, 160 DegreesUnavailable
18-3649AftermarketSierraThermostat, 160 Degree, 807252T2$27.89 10+ In Stock.
8M0109441OEMMercury QuicksilverThermostat, 160 Degree$34.49 3 In Stock.
75-03058AftermarketEmpThermostat 807252T2, 8M0109441 160 Degree$27.49 $21.63 Available to Order: Usually ships within 10 days.
#9 806922 — SLEEVE, Thermostat (1 required per assembly)
23-806922PartSleeveUnavailable
23-8M0214947OEMMercury QuicksilverThermostat Housing Sleeve, Plastic$17.89 2 In Stock.
#10 53045 1 — GASKET, Lower Thermostat Housing (1 required per assembly)
27-53045 1OEMMercury QuicksilverGasket - Priced Individually$5.69 6 In Stock.
18-2917-9AftermarketSierraGasket 27-530451 2-Pack$7.99 $7.95 Available to Order: Usually ships within 10 days.
27-53045Q01OEMMercury QuicksilverGasket$5.89 5 In Stock.
#11 817427 80 — SCREW, (M8 x 80) (2 required per assembly)
10-817427 80OEMMercury QuicksilverScrew$4.49 Available to Order: Usually ships within 10 days.
#12 12552 — LIFTING EYE (1 required per assembly)
12552OEMMercury QuicksilverLifting Eye$19.89 Available to Order: Usually ships within 10 days.
#13 98477A 2 — VALVE ASSEMBLY (1 required per assembly)
22-98477A 2OEMMercury QuicksilverValve Assembly$108.99 Available to Order: Usually ships within 10 days.
#14 98475 — BALL, Nylon, Check (2 required per assembly)
30-98475OEMMercury QuicksilverBall - Priced Individually$11.19 6 In Stock.
#15 75533 — SPRING (2 required per assembly)
24-75533OEMMercury QuicksilverSpring, Brush$2.99 6 In Stock.
#16 89302 — WASHER, (.203 x .406 x .040) (2 required per assembly)
12-89302OEMMercury QuicksilverWasher (.203 X .406 X .040)$1.80 10+ In Stock.
#17 98476 — SCREW, (#10-32 x 6.00) (1 required per assembly)
10-98476OEMMercury QuicksilverScrew$7.49 Available to Order: Usually ships within 10 days.
#18 826709106 — NUT, (#10-32) Stainless Steel (1 required per assembly)
11-826709106OEMMercury QuicksilverNut, (#10-32) Stainless Steel$4.50 10+ In Stock.
11-8M0204718OEMMercury QuicksilverNUT$4.69 Available to Order: Usually ships within 10 days.
Standard Cooling System (Alpha)(Single & 3 Point Drain)
11681_240 | 30 diagram reference numbers | 35 listed parts/equivalents
#1 863489 — HOSE, Power Steering Cooler to Check Valve (1 required per assembly)
32-863489OEMMercury QuicksilverHoseUnavailable
#2 864206A 1 — CHECK VALVE ASSEMBLY (1 required per assembly)
21-864206A 1OEMMercury QuicksilverCheck Valve$68.49 In Stock
#3 863623 — HOSE, Check Valve to Fuel Cooler (1 required per assembly)
32-863623OEMMercury QuicksilverHose - Check Valve To Fuel Cooler$47.99 Available to Order: Usually ships within 10 days.
#4 863456A 1 — HOSE ASSEMBLY, Thermostat Housing to Circulating Pump (1 required per assembly)
32-863456A 1OEMMercury QuicksilverHoseUnavailable
#5 863458 — HOSE, Thermostat Housing to Port Manifold (1 required per assembly)
32-863458OEMMercury QuicksilverHose - Thermostat Housing To Port Manifold$63.49 Available to Order: Usually ships within 10 days.
#6 863459 — HOSE, Thermostat Housing to Starboard Manifold (1 required per assembly)
32-863459OEMMercury QuicksilverHose - Thermostat Housing To Starboard ManifoldUnavailable
#7 807661 — HOSE, Transom Assembly to Power Steering Cooler (1 required per assembly) (Alpha)
32-807661OEMMercury QuicksilverMolded Hose$66.99 In Stock
#8 863670 — HOSE, Fuel Cooler to Water Distribution Housing (1 required per assembly)
32-863670OEMMercury QuicksilverHose - Fuel Cooler$35.49 Available to Order: Usually ships within 10 days.
#9 864621A 1 — FITTING ASSEMBLY, Lower Distribution (1 required per assembly)
22-864621A 1OEMMercury QuicksilverDrain Fit Assembly$93.49 In Stock
#10 862317 5 — HOSE, Cylinder Block Drain to Distribution Fitting (2 required per assembly) (Port-23 Inches) (Starboard 17 Inches)
32-8623175PartHoseUnavailable
32-8M0062590OEMMercury QuicksilverHose=3/8 Push Lck$34.99 Available to Order: Usually ships within 10 days.
#11 863490 — HOSE, Water Drain Accumulator to Distribution Fitting (1 required per assembly)
32-863490OEMMercury QuicksilverHose - Distribution Fitting To Accumulator Housing$42.99 Available to Order: Usually ships within 10 days.
#12 863491 — HOSE, Distribution Fitting to "Y" Fitting (1 required per assembly)
32-863491OEMMercury QuicksilverHose -Distribution Fitting To Y Fitting$149.49 Available to Order: Usually ships within 10 days.
#13 42850 69 — HOSE, (44.00 Inches Bulk), Starboard Manifold to Distribution Fitting (1 required per assembly) (Cut to 22 Inch Length)
32-42850 69PartHose -44 InchUnavailable
32-8M0062634OEMMercury QuicksilverTransom to Thermostat Housing Hose -44I$40.99 Available to Order: Usually ships within 10 days.
#15 815504232 — CLAMP, Worm Gear (2.50 Diameter), Hose (AR required per assembly)
54-815504232OEMMercury QuicksilverClamp$8.89 10+ In Stock.
#16 862603 — FITTING, Male Quick Connector, Threaded (2 required per assembly)
22-862603PartAdaptor -quick CntUnavailable
228M0180470OEMMercury QuicksilverAdaptor-QUICK CNT$8.19 Available to Order: Usually ships within 10 days.
#17 863841T — TUBE, Water, Brass (1 required per assembly) (Compact Hydraulic Steering)
863841TOEMMercury QuicksilverTube - Extender$166.49 Available to Order: Usually ships within 10 days.
#18 862225 — FITTING, Pushlock (4 required per assembly)
22-862225OEMMercury QuicksilverCoupling Assembly$19.09 3 In Stock.
#19 863465 — HOSE, Drain Accumulator to Tee Fitting (1 required per assembly)
32-863465OEMMercury QuicksilverHose - Drain Accumulator To Tee Fitting$95.49 Available to Order: Usually ships within 10 days.
#20 863464A 1 — FITTING ASSEMBLY (1 required per assembly) (Alpha Only)
22-863464A 1PartFitting KitUnavailable
228M0065823OEMMercury QuicksilverFitting -tee$17.09 Available to Order: Usually ships within 10 days.
#NS 864327 — BUSHING, Orifice (1 required per assembly) (Alpha Only)
23-864327OEMMercury QuicksilverBushingUnavailable
#NS 864353 — O-RING (1 required per assembly) (Alpha Only)
25-864353OEMMercury QuicksilverO-RingUnavailable
#21 62702 1 — O-RING, (.301 x .070) (2 required per assembly)
25-62702 1OEMMercury QuicksilverO-Ring$1.70 10+ In Stock.
#22 864560 — HOSE, Tee Fitting to Port Elbow (1 required per assembly) (Non Riser, 1.7 inch and 3 Inch Riser)
32-864560OEMMercury QuicksilverHose - Tee Fitting To Port Elbow$38.49 Available to Order: Usually ships within 10 days.
#22 864965 — HOSE, Tee Fitting to Port Elbow (1 required per assembly) (4.7 Inch and 6 Inch Riser)
32-864965OEMMercury QuicksilverHose$44.55 1 In Stock.
#23 864561 — HOSE, Tee Fitting to Starboard Elbow (1 required per assembly) (Non Riser, 1.7 inch and 3 Inch Riser)
32-864561OEMMercury QuicksilverHose - Tee Fitting To Starboard Elbow$51.99 Available to Order: Usually ships within 10 days.
#23 864966 — HOSE, Tee Fitting to Starboard Elbow (1 required per assembly) (4.7 Inch and 6 Inch Riser)
32-864966OEMMercury QuicksilverHose$48.49 Available to Order: Usually ships within 10 days.
#24 815504212 — CLAMP, Worm Gear (2 required per assembly)
54-815504212OEMMercury QuicksilverClamp$5.89 Available to Order: Usually ships within 10 days.
#25 815504216 — CLAMP, Worm Gear (1.56 Diameter) (AR required per assembly)
54-815504216OEMMercury QuicksilverClampUnavailable
#26 815504222 — CLAMP, Worm Gear (1.98 DIameter) (2 required per assembly)
54-815504222PartClamp - See Note On Detail PageUnavailable
54-8M0188622OEMMercury QuicksilverCLAMPUnavailable
#27 815504228 — CLAMP, Worm Gear (1 required per assembly)
54-815504228OEMMercury QuicksilverClamp$17.29 Available to Order: Usually ships within 10 days.
Standard Cooling System (Bravo)(Single & 3 Point Drain)
11681_250 | 35 diagram reference numbers | 47 listed parts/equivalents
#1 865255 — HOSE, Power Steering Cooler to Accumulator Housing (1 required per assembly)
32-865255OEMMercury QuicksilverHose$70.49 Available to Order: Usually ships within 10 days.
#2 862993 — FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb (1 required per assembly)
22-862993OEMMercury QuicksilverFitting - Water$5.59 Available to Order: Usually ships within 10 days.
#3 42850 69 — HOSE, (44.00 Inches Bulk), Exhaust Manifold to Y Fitting (1 required per assembly) (Port)(Cut to 9.00 Inches)
32-42850 69PartHose -44 InchUnavailable
32-8M0062634OEMMercury QuicksilverTransom to Thermostat Housing Hose -44I$40.99 Available to Order: Usually ships within 10 days.
#4 863456A 1 — HOSE ASSEMBLY, Thermostat Housing to Circulating Pump (1 required per assembly)
32-863456A 1OEMMercury QuicksilverHoseUnavailable
#5 863458 — HOSE, Thermostat Housing to Port Manifold (1 required per assembly)
32-863458OEMMercury QuicksilverHose - Thermostat Housing To Port Manifold$63.49 Available to Order: Usually ships within 10 days.
#6 863459 — HOSE, Thermostat Housing to Starboard Manifold (1 required per assembly)
32-863459OEMMercury QuicksilverHose - Thermostat Housing To Starboard ManifoldUnavailable
#7 807694075 — HOSE, Y Fitting to Accumulator (1 required per assembly)
32-807694075PartHoseUnavailable
32-866331OEMMercury QuicksilverHose$14.59 Available to Order: Usually ships within 10 days.
#8 862603 — FITTING, Male Quick Connector, Threaded - Engine Block (2 required per assembly)
22-862603PartAdaptor -quick CntUnavailable
228M0180470OEMMercury QuicksilverAdaptor-QUICK CNT$8.19 Available to Order: Usually ships within 10 days.
#9 864989A01 — FITTING ASSEMBLY, Lower Distribution (1 required per assembly)
22-864989A01PartDrain Fitting AssemblyUnavailable
22-8M0219211OEMMercury QuicksilverFITTING-DRAIN ASYUnavailable
#10 862317 5 — HOSE, Cylinder Block Drain to Distribution Fitting (2 required per assembly) (Port-23 Inches)(Starboard 17 Inches)
32-8623175PartHoseUnavailable
32-8M0062590OEMMercury QuicksilverHose=3/8 Push Lck$34.99 Available to Order: Usually ships within 10 days.
#11 863490 — HOSE, Water Drain Accumulator to Distribution Fitting (1 required per assembly)
32-863490OEMMercury QuicksilverHose - Distribution Fitting To Accumulator Housing$42.99 Available to Order: Usually ships within 10 days.
#12 865394 — HOSE (1 required per assembly)
32-865394OEMMercury QuicksilverHose$100.49 Available to Order: Usually ships within 10 days.
#13 865337 — HOSE, Sea Pump to Water Orifice (1 required per assembly) (3 Point Manual Drain)
32-865337PartHose - Sea Water Pump To Water OrificeUnavailable
32-8M2021656OEMMercury QuicksilverHose$31.99 Available to Order: Usually ships within 10 days.
#13 865234 — HOSE, Sea Pump to Water Orifice (1 required per assembly) (Single Point Air Actuated Drain)
32-865234OEMMercury QuicksilverHose - Sea Water Pump To Water Orifice$30.49 Available to Order: Usually ships within 10 days.
#14 865208T01 — HOSE ASSEMBLY, 3 Bib Orfice Meter (1 required per assembly)
22-865208T01OEMMercury QuicksilverHose Fitting Assembly$136.99 In Stock
#15 865235 — HOSE, Water Orifice to Power Steering Cooler (1 required per assembly)
32-865235PartHoseUnavailable
32-8M2021655OEMMercury QuicksilverHose$81.49 Available to Order: Usually ships within 10 days.
#16 863343 79 — HOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump (1 required per assembly)
32-863343 79PartHose-96 INCHUnavailable
32-865672079PartHose-96 InchUnavailable
32-8M0062666OEMMercury QuicksilverWater Hose Bulk -96"$220.99 Available to Order: Usually ships within 10 days.
#17 863841T — TUBE, Water, Brass (1 required per assembly) (Compact Hydraulic Steering)
863841TOEMMercury QuicksilverTube - Extender$166.49 Available to Order: Usually ships within 10 days.
#18 862225 — FITTING, Pushlock - Block Drain Hose (4 required per assembly)
22-862225OEMMercury QuicksilverCoupling Assembly$19.09 3 In Stock.
#19 863465 — HOSE, Drain Accumulator to Tee Fitting (1 required per assembly)
32-863465OEMMercury QuicksilverHose - Drain Accumulator To Tee Fitting$95.49 Available to Order: Usually ships within 10 days.
#20 863464A 1 — FITTING ASSEMBLY, Tee (1 required per assembly) (Bravo Only)
22-863464A 1PartFitting KitUnavailable
228M0065823OEMMercury QuicksilverFitting -tee$17.09 Available to Order: Usually ships within 10 days.
#21 62702 1 — O-RING, (.301 x .070) (2 required per assembly)
25-62702 1OEMMercury QuicksilverO-Ring$1.70 10+ In Stock.
#22 864560 — HOSE, Tee Fitting to Port Elbow (1 required per assembly) (Non Riser, 1.7 Inch and 3 Inch Riser)
32-864560OEMMercury QuicksilverHose - Tee Fitting To Port Elbow$38.49 Available to Order: Usually ships within 10 days.
#22 864965 — HOSE, Tee Fitting to Port Elbow (1 required per assembly) (4.7 Inch and 6 Inch Riser)
32-864965OEMMercury QuicksilverHose$44.55 1 In Stock.
#23 864561 — HOSE, Tee Fitting to Starboard Elbow (1 required per assembly) (Non Riser, 1.7 Inch and 3 Inch Riser)
32-864561OEMMercury QuicksilverHose - Tee Fitting To Starboard Elbow$51.99 Available to Order: Usually ships within 10 days.
#23 864966 — HOSE, Tee Fitting to Starboard Elbow (1 required per assembly) (4.7 Inch and 6 Inch Riser)
32-864966OEMMercury QuicksilverHose$48.49 Available to Order: Usually ships within 10 days.
#24 815504212 — CLAMP, Worm Gear (2 required per assembly)
54-815504212OEMMercury QuicksilverClamp$5.89 Available to Order: Usually ships within 10 days.
#25 815504216 — CLAMP, Worm Gear (1.56 Diameter) (AR required per assembly)
54-815504216OEMMercury QuicksilverClampUnavailable
#26 815504222 — CLAMP, Worm Gear (1.98 DIameter) (2 required per assembly)
54-815504222PartClamp - See Note On Detail PageUnavailable
54-8M0188622OEMMercury QuicksilverCLAMPUnavailable
#27 815504228 — CLAMP, Worm Gear (1 required per assembly)
54-815504228OEMMercury QuicksilverClamp$17.29 Available to Order: Usually ships within 10 days.
#28 815504232 — CLAMP, Worm Gear (2.50 Diameter) (AR required per assembly)
54-815504232OEMMercury QuicksilverClamp$8.89 10+ In Stock.
#29 815504220 — CLAMP, Worm Gear (3 required per assembly)
54-815504220OEMMercury QuicksilverClamp$7.59 Available to Order: Usually ships within 10 days.
#30 865672013 — HOSE, (4.00 Inches), Transom Hose (1 required per assembly)
32-865672013PartHose - 4 InchUnavailable
32-8M0062653OEMMercury QuicksilverWater Hose 4 IN$7.39 Available to Order: Usually ships within 10 days.
#31 865362 — QUICK CONNECT, Transom Hose (1 required per assembly)
22-865362OEMMercury QuicksilverSpigot-q/C$9.69 Available to Order: Usually ships within 10 days.
#32 865324 — QUICK CONNECT (2 required per assembly)
22-865324OEMMercury QuicksilverFitting -q/C$11.79 Available to Order: Usually ships within 10 days.
Standard Cooling System (Alpha)(7 Point Drain)
11681_260 | 22 diagram reference numbers | 33 listed parts/equivalents
#1 860089 1 — HOSE, Molded, Power Steering to Fuel Cooler (1 required per assembly)
32-860089 1OEMMercury QuicksilverWater Hose$86.99 Available to Order: Usually ships within 10 days.
#2 807694075 — HOSE, Fuel Cooler to Drain Fitting (1 required per assembly) (Cut to Length)
32-807694075PartHoseUnavailable
32-866331OEMMercury QuicksilverHose$14.59 Available to Order: Usually ships within 10 days.
#3 864578 — HOSE, Drain Fitting to Check Valve (1 required per assembly)
32-864578OEMMercury QuicksilverHose - Drain Fitting To Check Valve$37.99 Available to Order: Usually ships within 10 days.
#4 864579 — HOSE, Check Valve to Thermostat Housing (1 required per assembly)
32-864579OEMMercury QuicksilverHose - Check Valve To Thermostat Housing$29.19 1 In Stock.
#5 864703A 1 — HOSE, Circulating Pump to Drain Elbow (1 required per assembly)
32-864703A 1OEMMercury QuicksilverHose Assembly$84.49 Available to Order: Usually ships within 10 days.
#6 864979 — HOSE, Starboard Exhaust Elbow to Thermostat Housing (1 required per assembly)
32-864979OEMMercury QuicksilverHose$49.49 Available to Order: Usually ships within 10 days.
#7 863459 — HOSE, Thermostat Housing to Starboard Manifold (1 required per assembly)
32-863459OEMMercury QuicksilverHose - Thermostat Housing To Starboard ManifoldUnavailable
#8 863458 — HOSE, Thermostat Housing to Port Manifold (1 required per assembly)
32-863458OEMMercury QuicksilverHose - Thermostat Housing To Port Manifold$63.49 Available to Order: Usually ships within 10 days.
#9 863841T — TUBE, Water, Brass (1 required per assembly) (Compact Hydralic Steering)
863841TOEMMercury QuicksilverTube - Extender$166.49 Available to Order: Usually ships within 10 days.
#10 807661 — HOSE, Transom Assembly to Power Steering Cooler (1 required per assembly)
32-807661OEMMercury QuicksilverMolded Hose$66.99 In Stock
#11 863804 — FITTING, (.750-14), Barb (1 required per assembly)
22-863804PartFittingUnavailable
22-866725OEMMercury QuicksilverBrass Fitting, 3/4 NPT$18.29 1 In Stock.
18-4461AftermarketSierraBrass Connector$13.99 $13.86 1 In Stock.
#12 861505 — FITTING, Drain Tee (1 required per assembly)
861505OEMMercury QuicksilverDrain Insert$15.69 Available to Order: Usually ships within 10 days.
#13 862271A 1 — CHECK VALVE (1 required per assembly)
21-862271A 1OEMMercury QuicksilverCheck Valve Kit$214.49 Available to Order: Usually ships within 10 days.
#14 864435 — HOSE, Port Exhaust Elbow to Thermostat Housing (1 required per assembly)
32-864435OEMMercury QuicksilverHose - Port Exhaust Elbow To Thermostat Housing$56.49 Available to Order: Usually ships within 10 days.
#15 862210A01 — ELBOW KIT, Drain (1 required per assembly)
22-862210A01OEMMercury QuicksilverElbow Kit$29.09 In Stock
18-4224AftermarketSierraDrain Elbow 22-806926A1$11.15 10+ In Stock.
#16 806608A 1 — PLUG KIT, (.500-13) Royal Blue (9 required per assembly)
22-806608A 1PartPlug Kit, Priced IndividuallyUnavailable
22-806608A02PartPlug Assembly - Priced IndividuallyUnavailable
18-4226AftermarketSierraBlue Drain Plug, 22-806608A1$4.10 10+ In Stock.
22-806608Q01OEMMercury QuicksilverPlug - Priced Individually$10.29 1 In Stock.
22-8M0119211OEMMercury QuicksilverDrain Plug, Priced Individually, .5 inch x 13$10.19 8 In Stock.
#17 32509 — O-RING, (.489 x .070) (9 required per assembly)
25-32509OEMMercury QuicksilverO-ring, (.489 X .070)$2.39 10+ In Stock.
18-7165-9AftermarketSierraO-Ring (PK5) , 0304174$10.38 Available to Order: Usually ships within 10 days.
#18 860088 — BUSHING (4 required per assembly)
22-860088PartBushingUnavailable
22-8M0214973OEMMercury QuicksilverCylinder Block Adaptor Bushing ZZ$12.79 4 In Stock.
#19 46982 — FITTING, (90 Degree) (1 required per assembly)
22-46982OEMMercury QuicksilverFitting$28.51 10+ In Stock.
#20 815504216 — CLAMP, Worm Gear (1.56 Diameter) (4 required per assembly)
54-815504216OEMMercury QuicksilverClampUnavailable
#21 815504222 — CLAMP, Worm Gear (1.98 DIameter) (11 required per assembly)
54-815504222PartClamp - See Note On Detail PageUnavailable
54-8M0188622OEMMercury QuicksilverCLAMPUnavailable
#22 815504228 — CLAMP, Worm Gear (4 required per assembly)
54-815504228OEMMercury QuicksilverClamp$17.29 Available to Order: Usually ships within 10 days.
Standard Cooling System (Bravo)(7 Point Drain)
11681_270 | 27 diagram reference numbers | 41 listed parts/equivalents
#1 865674 — HOSE, Power Steering Cooler to Drain Fitting (1 required per assembly)
32-865674OEMMercury QuicksilverHose - Power Steering Cooler To Drain Fitting$73.49 Available to Order: Usually ships within 10 days.
#2 865235 — HOSE, Water Orifice to Power Steering Cooler (1 required per assembly)
32-865235PartHoseUnavailable
32-8M2021655OEMMercury QuicksilverHose$81.49 Available to Order: Usually ships within 10 days.
#3 865409 — HOSE, Drain Fitting to Thermostat Housing (1 required per assembly)
32-865409OEMMercury QuicksilverHose - Drain Fitting To Thermostat Housing$54.99 Available to Order: Usually ships within 10 days.
#4 863804 — FITTING, (.750-14), Barb (1 required per assembly)
22-863804PartFittingUnavailable
22-866725OEMMercury QuicksilverBrass Fitting, 3/4 NPT$18.29 1 In Stock.
18-4461AftermarketSierraBrass Connector$13.99 $13.86 1 In Stock.
#5 864703A 1 — HOSE, Circulating Pump to Drain Elbow (1 required per assembly)
32-864703A 1OEMMercury QuicksilverHose Assembly$84.49 Available to Order: Usually ships within 10 days.
#6 864979 — HOSE, Starboard Exhaust Elbow to Thermostat Housing (1 required per assembly)
32-864979OEMMercury QuicksilverHose$49.49 Available to Order: Usually ships within 10 days.
#7 863459 — HOSE, Thermostat Housing to Starboard Manifold (1 required per assembly)
32-863459OEMMercury QuicksilverHose - Thermostat Housing To Starboard ManifoldUnavailable
#8 863458 — HOSE, Thermostat Housing to Port Manifold (1 required per assembly)
32-863458OEMMercury QuicksilverHose - Thermostat Housing To Port Manifold$63.49 Available to Order: Usually ships within 10 days.
#9 865337 — HOSE, Sea Water Pump to Water Orifice (1 required per assembly)
32-865337PartHose - Sea Water Pump To Water OrificeUnavailable
32-8M2021656OEMMercury QuicksilverHose$31.99 Available to Order: Usually ships within 10 days.
#10 865317T01 — FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter (1 required per assembly)
22-865317T01OEMMercury QuicksilverHose Fitting Assembly$79.99 $78.70 In Stock
#11 865672079 — HOSE, (96.00 Inches Bulk), Transom Assembly to Power Steering Coller (1 required per assembly) (Alpha)
32-865672079PartHose-96 InchUnavailable
32-8M0062666OEMMercury QuicksilverWater Hose Bulk -96"$220.99 Available to Order: Usually ships within 10 days.
#12 861505 — FITTING, Drain Tee (1 required per assembly)
861505OEMMercury QuicksilverDrain Insert$15.69 Available to Order: Usually ships within 10 days.
#13 863841T — TUBE, Water, Brass (1 required per assembly) (Compact Hydralic Steering)
863841TOEMMercury QuicksilverTube - Extender$166.49 Available to Order: Usually ships within 10 days.
#14 864435 — HOSE, Port Exhaust Elbow to Thermostat Housing (1 required per assembly)
32-864435OEMMercury QuicksilverHose - Port Exhaust Elbow To Thermostat Housing$56.49 Available to Order: Usually ships within 10 days.
#15 862210A01 — ELBOW KIT, Drain (2 required per assembly)
22-862210A01OEMMercury QuicksilverElbow Kit$29.09 In Stock
18-4224AftermarketSierraDrain Elbow 22-806926A1$11.15 10+ In Stock.
#16 806608A 1 — PLUG KIT, (.500-13) Royal Blue (9 required per assembly)
22-806608A 1PartPlug Kit, Priced IndividuallyUnavailable
22-806608A02PartPlug Assembly - Priced IndividuallyUnavailable
18-4226AftermarketSierraBlue Drain Plug, 22-806608A1$4.10 10+ In Stock.
22-806608Q01OEMMercury QuicksilverPlug - Priced Individually$10.29 1 In Stock.
22-8M0119211OEMMercury QuicksilverDrain Plug, Priced Individually, .5 inch x 13$10.19 8 In Stock.
#17 32509 — O-RING, (.489 x .070) (9 required per assembly)
25-32509OEMMercury QuicksilverO-ring, (.489 X .070)$2.39 10+ In Stock.
18-7165-9AftermarketSierraO-Ring (PK5) , 0304174$10.38 Available to Order: Usually ships within 10 days.
#18 860088 — BUSHING (4 required per assembly)
22-860088PartBushingUnavailable
22-8M0214973OEMMercury QuicksilverCylinder Block Adaptor Bushing ZZ$12.79 4 In Stock.
#19 46982 — FITTING, (90 Degree) (1 required per assembly)
22-46982OEMMercury QuicksilverFitting$28.51 10+ In Stock.
#20 815504216 — CLAMP, Worm Gear (1.56 Diameter) (4 required per assembly)
54-815504216OEMMercury QuicksilverClampUnavailable
#21 815504222 — CLAMP, Worm Gear (1.98 DIameter) (11 required per assembly)
54-815504222PartClamp - See Note On Detail PageUnavailable
54-8M0188622OEMMercury QuicksilverCLAMPUnavailable
#22 815504228 — CLAMP, Worm Gear (4 required per assembly)
54-815504228OEMMercury QuicksilverClamp$17.29 Available to Order: Usually ships within 10 days.
#23 866729 — FITTING, (.250 x .250 NPTF) (1 required per assembly)
22-866729OEMMercury QuicksilverFitting - Adapter$3.09 Available to Order: Usually ships within 10 days.
#24 815504220 — CLAMP, Worm Gear (3 required per assembly)
54-815504220OEMMercury QuicksilverClamp$7.59 Available to Order: Usually ships within 10 days.
#25 865672013 — HOSE, (4.00 Inches) (1 required per assembly)
32-865672013PartHose - 4 InchUnavailable
32-8M0062653OEMMercury QuicksilverWater Hose 4 IN$7.39 Available to Order: Usually ships within 10 days.
#26 865362 — QUICK CONNECT (1 required per assembly)
22-865362OEMMercury QuicksilverSpigot-q/C$9.69 Available to Order: Usually ships within 10 days.
#27 865324 — QUICK CONNECT (2 required per assembly)
22-865324OEMMercury QuicksilverFitting -q/C$11.79 Available to Order: Usually ships within 10 days.
Closed Cooling System (Alpha)
11681_280 | 46 diagram reference numbers | 56 listed parts/equivalents
#1 863489 — HOSE, Power Steering to Check Valve (1 required per assembly)
32-863489OEMMercury QuicksilverHoseUnavailable
#2 864206A 1 — CHECK VALVE ASSEMBLY (1 required per assembly)
21-864206A 1OEMMercury QuicksilverCheck Valve$68.49 In Stock
#3 863623 — HOSE, Check Valve to Fuel Cooler (1 required per assembly)
32-863623OEMMercury QuicksilverHose - Check Valve To Fuel Cooler$47.99 Available to Order: Usually ships within 10 days.
#4 864551 — HOSE, Intake Bypass to Circulating Pump (1 required per assembly)
32-864551OEMMercury QuicksilverHose - Intake Bypass To Circulating Pump$20.83 1 In Stock.
#5 864431 — HOSE, Distribution Fitting to Heat Exchanger (1 required per assembly)
32-864431OEMMercury QuicksilverHose - Distribution Housing To Heat Exchanger$52.99 Available to Order: Usually ships within 10 days.
#6 864539 — HOSE, Thermostat Housing to Upper Manifold (1 required per assembly) (Starboard) (Non Riser)
32-864539OEMMercury QuicksilverHose - Thermostat Housing To Upper Manifold$29.69 $15.66 7 In Stock.
#6 864956 — HOSE, Thermostat Housing to Upper Manifold (1 required per assembly) (Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
32-864956OEMMercury QuicksilverHose - Thermostat Housing To Upper Manifold$39.99 $26.83 2 In Stock.
#7 864552 — HOSE, Thermostat Housing to Upper Manifold (1 required per assembly) (Port) (Non Riser)
32-864552OEMMercury QuicksilverHose - Thermostat Housing To Upper Manifold$32.79 Available to Order: Usually ships within 10 days.
#7 864954 — HOSE, Thermostat Housing to Upper Manifold (1 required per assembly) (Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
32-864954OEMMercury QuicksilverHose - Thermostat Housing To Upper Manifold$62.49 Available to Order: Usually ships within 10 days.
#8 864509 — HOSE, Thermostat Housing to Lower Manifold (1 required per assembly) (Starboard)
32-864509OEMMercury QuicksilverHose$63.49 Available to Order: Usually ships within 10 days.
#9 864508 — HOSE, Thermostat Housing to Lower Manifold (1 required per assembly) (Port)
32-864508OEMMercury QuicksilverHose$47.49 Available to Order: Usually ships within 10 days.
#10 863670 — HOSE, Fuel Cooler to Accumulator Housing (1 required per assembly)
32-863670OEMMercury QuicksilverHose - Fuel Cooler$35.49 Available to Order: Usually ships within 10 days.
#11 864506 — HOSE, Heat Exchanger to Thermostat Housing (1 required per assembly)
32-864506OEMMercury QuicksilverHose - Heat Exchanger To Thermostat Housing$19.59 Available to Order: Usually ships within 10 days.
#12 864507 — HOSE, Heat Exchanger to Thermostat Housing (1 required per assembly)
32-864507OEMMercury QuicksilverHose - Heat Exchanger To Thermostat Housing$18.39 Available to Order: Usually ships within 10 days.
#13 864542 — HOSE, Heat Exchanger to Starboard Elbow (1 required per assembly) (Non Riser, 1.7 Inch and 3 Inch Riser)
864542OEMMercury QuicksilverHOSE NLAUnavailable
#13 864955 — HOSE, Heat Exchanger to Starboard Elbow (1 required per assembly) (4.7 Inch and 6 Inch Riser)
32-864955OEMMercury QuicksilverHose - Heat Exchanger To Starboard Elbow$40.92 Available to Order: Usually ships within 10 days.
#14 864726 — HOSE, Heat Exchanger to Port Elbow (1 required per assembly) (Non Riser, 1.7 Inch and 3 Inch Riser)
32-864726OEMMercury QuicksilverHose - Heat Exchanger To Port Elbow$39.49 $33.57 1 In Stock.
#14 864953 — HOSE, Heat Exchanger to Port Elbow (1 required per assembly) (4.7 Inch and 6 Inch Riser)
32-864953OEMMercury QuicksilverHose - Heat Exchanger To Port ElbowUnavailable
#15 863611 — HOSE, Sea Pump to Power Steering Cooler (1 required per assembly)
32-863611OEMMercury QuicksilverHose$81.49 Available to Order: Usually ships within 10 days.
#16 815504212 — CLAMP, Worm Gear (1 required per assembly)
54-815504212OEMMercury QuicksilverClamp$5.89 Available to Order: Usually ships within 10 days.
#17 815504216 — CLAMP, Worm Gear (1.56 Diameter) (1 required per assembly)
54-815504216OEMMercury QuicksilverClampUnavailable
#18 815504222 — CLAMP, Worm Gear (1.98 DIameter) (1 required per assembly)
54-815504222PartClamp - See Note On Detail PageUnavailable
54-8M0188622OEMMercury QuicksilverCLAMPUnavailable
#19 815504228 — CLAMP, Worm Gear (1 required per assembly)
54-815504228OEMMercury QuicksilverClamp$17.29 Available to Order: Usually ships within 10 days.
#20 815504232 — CLAMP, Worm Gear (2.50 Diameter) (1 required per assembly)
54-815504232OEMMercury QuicksilverClamp$8.89 10+ In Stock.
#21 864886 — HOSE, Heat Exchanger to Circulating Pump (1 required per assembly)
32-864886OEMMercury QuicksilverHose - Circulating Pump To Heat Exchanger$45.99 Available to Order: Usually ships within 10 days.
#22 815504224 — CLAMP, Worm Gear, Hose (1 required per assembly)
54-815504224OEMMercury QuicksilverClamp$5.19 1 In Stock.
#23 864395T01 — HEAT EXCHANGER, Closed Cooling (1 required per assembly)
864395T01OEMMercury QuicksilverHeat Exchanger$4,007.99 In Stock
#24 864708 — COVER, End, Heat Exchanger (2 required per assembly)
864708OEMMercury QuicksilverHeat Exchanger Cover$104.99 Available to Order: Usually ships within 10 days.
#25 818679 — O-RING (4 required per assembly)
25-818679OEMMercury QuicksilverO-Ring - Priced Individually$8.19 5 In Stock.
#26 94247 — SCREW, (.375-16 x .750) Stainless Steel (2 required per assembly)
10-94247OEMMercury QuicksilverScrew - Priced Individually$1.50 $0.30 10 In Stock.
#27 864707 — SEAL (2 required per assembly)
25-864707PartSEALUnavailable
27-866152PartGasketUnavailable
25-8M0084884OEMMercury QuicksilverSeal$15.89 Available to Order: Usually ships within 10 days.
#28 814879 1 — CAP, Pressure (1 required per assembly)
36-814879 1OEMMercury QuicksilverPressure Cap$60.49 Available to Order: Usually ships within 10 days.
#29 805559 — SCREW, (.375-16 x .875) Stainless Steel (1 required per assembly)
10-805559OEMMercury QuicksilverScrew$10.29 Available to Order: Usually ships within 10 days.
#30 34353 — SCREW, (.375-16 x 1.00) (3 required per assembly)
10-34353OEMMercury QuicksilverScrew - Priced Individually$2.59 10+ In Stock.
#31 815504396 — CLAMP, Worm Gear, Heat Exchanger (1 required per assembly)
54-815504396OEMMercury QuicksilverClamp$23.79 Available to Order: Usually ships within 10 days.
#32 71587A10 — RECOVERY KIT, Coolant (1 required per assembly)
71587A10OEMMercury QuicksilverCoolant Recovery Kit$97.49 $96.06 In Stock
#33 71587A11 — BOTTLE, Plastic, Coolant Recovery Kit (1 required per assembly)
71587A11OEMMercury QuicksilverCoolant Recovery Bottle$74.99 Available to Order: Usually ships within 10 days.
#34 72058 — CAP, Coolant Recovery Bottle (1 required per assembly)
72058OEMMercury QuicksilverBottle Cap$11.29 Available to Order: Usually ships within 10 days.
#35 865672079 — HOSE, (96.00 Inches Bulk), Sea Water Pump to Water Pick Up (1 required per assembly)
32-865672079PartHose-96 InchUnavailable
32-8M0062666OEMMercury QuicksilverWater Hose Bulk -96"$220.99 Available to Order: Usually ships within 10 days.
#36 18431 — PAD, Heat Exchanger (1 required per assembly)
18431OEMMercury QuicksilverPad$34.99 Available to Order: Usually ships within 10 days.
#37 864494T — BRACKET, Cooler (1 required per assembly)
864494TOEMMercury QuicksilverHeat Exchanger Bracket$471.49 Available to Order: Usually ships within 10 days.
#38 864533 — HOSE (1 required per assembly)
32-864533PartHoseUnavailable
328M0171028OEMMercury QuicksilverHose$30.69 Available to Order: Usually ships within 10 days.
#39 863841T — TUBE, Water, Brass (1 required per assembly) (Compact Hydralic Steering)
863841TOEMMercury QuicksilverTube - Extender$166.49 Available to Order: Usually ships within 10 days.
#40 806608A 1 — PLUG KIT, (.500-13) Royal Blue (1 required per assembly)
22-806608A 1PartPlug Kit, Priced IndividuallyUnavailable
22-806608A02PartPlug Assembly - Priced IndividuallyUnavailable
18-4226AftermarketSierraBlue Drain Plug, 22-806608A1$4.10 10+ In Stock.
22-806608Q01OEMMercury QuicksilverPlug - Priced Individually$10.29 1 In Stock.
22-8M0119211OEMMercury QuicksilverDrain Plug, Priced Individually, .5 inch x 13$10.19 8 In Stock.
#41 32509 — O-RING, (.489 x .070) (1 required per assembly)
25-32509OEMMercury QuicksilverO-ring, (.489 X .070)$2.39 10+ In Stock.
18-7165-9AftermarketSierraO-Ring (PK5) , 0304174$10.38 Available to Order: Usually ships within 10 days.
#42 19833 89 — HOSE (Included with Coolant Recovery Kit) (1 required per assembly)
32-19833 89OEMMercury QuicksilverHose$41.99 Available to Order: Usually ships within 10 days.
Closed Cooling System (Bravo)
11681_290 | 56 diagram reference numbers | 73 listed parts/equivalents
#1 865247 — HOSE, Power Steering Cooler to Accumulator Housing (1 required per assembly)
32-865247OEMMercury QuicksilverHose$86.99 Available to Order: Usually ships within 10 days.
#2 864727 — FITTING, Y, (3) 1-1/4 In. OD Hose Barbs, To Water Pickup (1 required per assembly)
22-864727OEMMercury QuicksilverFitting$32.99 In Stock
#3 865234 — HOSE, Sea Water Pump to Water Orifice ( required per assembly)
32-865234OEMMercury QuicksilverHose - Sea Water Pump To Water Orifice$30.49 Available to Order: Usually ships within 10 days.
#4 864551 — HOSE, Intake Bypass to Circulating Pump (1 required per assembly)
32-864551OEMMercury QuicksilverHose - Intake Bypass To Circulating Pump$20.83 1 In Stock.
#5 864431 — HOSE, Distribution Fitting to Heat Exchanger (1 required per assembly)
32-864431OEMMercury QuicksilverHose - Distribution Housing To Heat Exchanger$52.99 Available to Order: Usually ships within 10 days.
#6 864539 — HOSE, Thermostat Housing to Upper Manifold (1 required per assembly) (Starboard) (Non Riser)
32-864539OEMMercury QuicksilverHose - Thermostat Housing To Upper Manifold$29.69 $15.66 7 In Stock.
#6 864956 — HOSE, Thermostat Housing to Upper Manifold (1 required per assembly) (Starboard)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
32-864956OEMMercury QuicksilverHose - Thermostat Housing To Upper Manifold$39.99 $26.83 2 In Stock.
#7 864552 — HOSE, Thermostat Housing to Upper Manifold (1 required per assembly) (Port) (Non Riser)
32-864552OEMMercury QuicksilverHose - Thermostat Housing To Upper Manifold$32.79 Available to Order: Usually ships within 10 days.
#7 864954 — HOSE, Thermostat Housing to Upper Manifold (1 required per assembly) (Port)(1.7 Inch, 3 Inch, 4.7 Inch and 6 Inch Riser)
32-864954OEMMercury QuicksilverHose - Thermostat Housing To Upper Manifold$62.49 Available to Order: Usually ships within 10 days.
#8 864509 — HOSE, Thermostat Housing to Lower Manifold (1 required per assembly) (Starboard)
32-864509OEMMercury QuicksilverHose$63.49 Available to Order: Usually ships within 10 days.
#9 864508 — HOSE, Thermostat Housing to Lower Manifold (1 required per assembly) (Port)
32-864508OEMMercury QuicksilverHose$47.49 Available to Order: Usually ships within 10 days.
#10 865317T01 — FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter (1 required per assembly)
22-865317T01OEMMercury QuicksilverHose Fitting Assembly$79.99 $78.70 In Stock
#11 864506 — HOSE, Heat Exchanger to Thermostat Housing (1 required per assembly)
32-864506OEMMercury QuicksilverHose - Heat Exchanger To Thermostat Housing$19.59 Available to Order: Usually ships within 10 days.
#12 864507 — HOSE, Heat Exchanger to Thermostat Housing (1 required per assembly)
32-864507OEMMercury QuicksilverHose - Heat Exchanger To Thermostat Housing$18.39 Available to Order: Usually ships within 10 days.
#13 864542 — HOSE, Heat Exchanger to Starboard Elbow (1 required per assembly) (Non Riser, 1.7 Inch and 3 Inch Riser)
864542OEMMercury QuicksilverHOSE NLAUnavailable
#13 864955 — HOSE, Heat Exchanger to Starboard Elbow (1 required per assembly) (4.7 Inch and 6 Inch Riser)
32-864955OEMMercury QuicksilverHose - Heat Exchanger To Starboard Elbow$40.92 Available to Order: Usually ships within 10 days.
#14 864726 — HOSE, Heat Exchanger to Port Elbow (1 required per assembly) (Non Riser, 1.7 Inch and 3 Inch Riser)
32-864726OEMMercury QuicksilverHose - Heat Exchanger To Port Elbow$39.49 $33.57 1 In Stock.
#14 864953 — HOSE, Heat Exchanger to Port Elbow (1 required per assembly) (4.7 Inch and 6 Inch Riser)
32-864953OEMMercury QuicksilverHose - Heat Exchanger To Port ElbowUnavailable
#15 865235 — HOSE, Water Orifice to Power Steering Cooler (1 required per assembly)
32-865235PartHoseUnavailable
32-8M2021655OEMMercury QuicksilverHose$81.49 Available to Order: Usually ships within 10 days.
#17 815504216 — CLAMP, Worm Gear (1.56 Diameter) (1 required per assembly)
54-815504216OEMMercury QuicksilverClampUnavailable
#18 815504222 — CLAMP, Worm Gear (1.98 DIameter) (1 required per assembly)
54-815504222PartClamp - See Note On Detail PageUnavailable
54-8M0188622OEMMercury QuicksilverCLAMPUnavailable
#19 815504228 — CLAMP, Worm Gear (1 required per assembly)
54-815504228OEMMercury QuicksilverClamp$17.29 Available to Order: Usually ships within 10 days.
#20 815504232 — CLAMP, Worm Gear (2.50 Diameter) (1 required per assembly)
54-815504232OEMMercury QuicksilverClamp$8.89 10+ In Stock.
#21 864886 — HOSE, Heat Exchanger to Circulating Pump (1 required per assembly)
32-864886OEMMercury QuicksilverHose - Circulating Pump To Heat Exchanger$45.99 Available to Order: Usually ships within 10 days.
#22 815504224 — CLAMP, Worm Gear (1 required per assembly)
54-815504224OEMMercury QuicksilverClamp$5.19 1 In Stock.
#23 864395T01 — HEAT EXCHANGER, Closed Cooling (1 required per assembly)
864395T01OEMMercury QuicksilverHeat Exchanger$4,007.99 In Stock
#24 864708 — COVER, End, Heat Exchanger (2 required per assembly)
864708OEMMercury QuicksilverHeat Exchanger Cover$104.99 Available to Order: Usually ships within 10 days.
#25 818679 — O-RING (4 required per assembly)
25-818679OEMMercury QuicksilverO-Ring - Priced Individually$8.19 5 In Stock.
#26 94247 — SCREW, (.375-16 x .750) Stainless Steel (2 required per assembly)
10-94247OEMMercury QuicksilverScrew - Priced Individually$1.50 $0.30 10 In Stock.
#27 864707 — SEAL (2 required per assembly)
25-864707PartSEALUnavailable
27-866152PartGasketUnavailable
25-8M0084884OEMMercury QuicksilverSeal$15.89 Available to Order: Usually ships within 10 days.
#28 814879 1 — CAP, Pressure (1 required per assembly)
36-814879 1OEMMercury QuicksilverPressure Cap$60.49 Available to Order: Usually ships within 10 days.
#29 805559 — SCREW, (.375-16 x .875) Stainless Steel (1 required per assembly)
10-805559OEMMercury QuicksilverScrew$10.29 Available to Order: Usually ships within 10 days.
#30 34353 — SCREW, (.375-16 x 1.00) (3 required per assembly)
10-34353OEMMercury QuicksilverScrew - Priced Individually$2.59 10+ In Stock.
#31 815504396 — CLAMP, Worm Gear, Heat Exchanger (1 required per assembly)
54-815504396OEMMercury QuicksilverClamp$23.79 Available to Order: Usually ships within 10 days.
#32 71587A10 — RECOVERY KIT, Coolant (1 required per assembly)
71587A10OEMMercury QuicksilverCoolant Recovery Kit$97.49 $96.06 In Stock
#33 71587A11 — BOTTLE, Plastic, Coolant Recovery Kit (1 required per assembly)
71587A11OEMMercury QuicksilverCoolant Recovery Bottle$74.99 Available to Order: Usually ships within 10 days.
#34 72058 — CAP, Coolant Recovery Bottle (1 required per assembly)
72058OEMMercury QuicksilverBottle Cap$11.29 Available to Order: Usually ships within 10 days.
#35 865672 31 — HOSE, (13.00 Inches), Sea Water Pump (1 required per assembly)
32-865672 31PartHose - 13 InchUnavailable
328M0062657OEMMercury QuicksilverHose 13 IN$24.19 Available to Order: Usually ships within 10 days.
#35 865672079 — HOSE, (96.00 Inches Bulk), Sea Water Pump (1 required per assembly)
32-865672079PartHose-96 InchUnavailable
32-8M0062666OEMMercury QuicksilverWater Hose Bulk -96"$220.99 Available to Order: Usually ships within 10 days.
#36 18431 — PAD, Heat Exchanger (1 required per assembly)
18431OEMMercury QuicksilverPad$34.99 Available to Order: Usually ships within 10 days.
#37 864494T — BRACKET, Cooler (1 required per assembly)
864494TOEMMercury QuicksilverHeat Exchanger Bracket$471.49 Available to Order: Usually ships within 10 days.
#38 864533 — HOSE (1 required per assembly)
32-864533PartHoseUnavailable
328M0171028OEMMercury QuicksilverHose$30.69 Available to Order: Usually ships within 10 days.
#39 863841T — TUBE, Water, Brass (1 required per assembly) (Compact Hydraulic Steering)
863841TOEMMercury QuicksilverTube - Extender$166.49 Available to Order: Usually ships within 10 days.
#40 806608A 1 — PLUG KIT, (.500-13) Royal Blue (1 required per assembly)
22-806608A 1PartPlug Kit, Priced IndividuallyUnavailable
22-806608A02PartPlug Assembly - Priced IndividuallyUnavailable
18-4226AftermarketSierraBlue Drain Plug, 22-806608A1$4.10 10+ In Stock.
22-806608Q01OEMMercury QuicksilverPlug - Priced Individually$10.29 1 In Stock.
22-8M0119211OEMMercury QuicksilverDrain Plug, Priced Individually, .5 inch x 13$10.19 8 In Stock.
#41 32509 — O-RING, (.489 x .070) (1 required per assembly)
25-32509OEMMercury QuicksilverO-ring, (.489 X .070)$2.39 10+ In Stock.
18-7165-9AftermarketSierraO-Ring (PK5) , 0304174$10.38 Available to Order: Usually ships within 10 days.
#42 862993 — FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb, To Flush Adaptor (1 required per assembly)
22-862993OEMMercury QuicksilverFitting - Water$5.59 Available to Order: Usually ships within 10 days.
#43 861427 — CAP (1 required per assembly)
861427PartCap - DustUnavailable
19-858240OEMMercury QuicksilverCap$12.49 Available to Order: Usually ships within 10 days.
#44 861405 — FITTING (1 required per assembly)
22-861405PartPLUG-QUICK CONNUnavailable
22-857175OEMMercury QuicksilverCoupling$58.49 Available to Order: Usually ships within 10 days.
#45 861406 — SOCKET (1 required per assembly)
22-861406OEMMercury QuicksilverSocket-quick Connector, NLA$109.49 Available to Order: Usually ships within 10 days.
#46 815504212 — CLAMP, Worm Gear (1 required per assembly)
54-815504212OEMMercury QuicksilverClamp$5.89 Available to Order: Usually ships within 10 days.
#47 864387 65 — HOSE, (34 Inches), Exhaust Manifold to Y Fitting (1 required per assembly)
32-864387 65PartHose - 34 InchUnavailable
32-8M2019902PartHOSE (42 Inches) - Replaced by 32-8M0062635Unavailable
32-8M0062635OEMMercury QuicksilverWater Hose 42 IN$23.89 Available to Order: Usually ships within 10 days.
#48 815504220 — CLAMP, Worm Gear (1 required per assembly)
54-815504220OEMMercury QuicksilverClamp$7.59 Available to Order: Usually ships within 10 days.
#49 865672013 — HOSE, (4.00 Inches), To Seawater Pump (1 required per assembly)
32-865672013PartHose - 4 InchUnavailable
32-8M0062653OEMMercury QuicksilverWater Hose 4 IN$7.39 Available to Order: Usually ships within 10 days.
#50 865362 — QUICK CONNECT (1 required per assembly)
22-865362OEMMercury QuicksilverSpigot-q/C$9.69 Available to Order: Usually ships within 10 days.
#51 865324 — QUICK CONNECT (1 required per assembly)
22-865324OEMMercury QuicksilverFitting -q/C$11.79 Available to Order: Usually ships within 10 days.
#52 19833 89 — HOSE (Included with Coolant Recovery Kit) (1 required per assembly)
32-19833 89OEMMercury QuicksilverHose$41.99 Available to Order: Usually ships within 10 days.
Water Distribution Housing
11681_300 | 18 diagram reference numbers | 24 listed parts/equivalents
#1 863631T 1 — HOUSING, Water Distribution (1 required per assembly) (Manual Drain)
863631T 1OEMMercury QuicksilverHousing Assembly$324.49 In Stock
#1 863444T 1 — HOUSING, Water Distribution (1 required per assembly) (Rod Actuated)
863444T 1OEMMercury QuicksilverHousing Assembly$314.02 2 In Stock.
#1 863802T 2 — HOUSING, Water Distribution (1 required per assembly) (Air Actuated) (Closed Cool)
863802T 2OEMMercury QuicksilverHousing Assembly$359.49 In Stock
#1 863444T 2 — HOUSING, Water Distribution (1 required per assembly) (Air Actuated) (Standard Cool)
863444T 2OEMMercury QuicksilverHousing Assembly$393.49 Available to Order: Usually ships within 10 days.
#2 806608A 1 — PLUG KIT, (.500-13) Royal Blue (1 required per assembly)
22-806608A 1PartPlug Kit, Priced IndividuallyUnavailable
22-806608A02PartPlug Assembly - Priced IndividuallyUnavailable
18-4226AftermarketSierraBlue Drain Plug, 22-806608A1$4.10 10+ In Stock.
22-806608Q01OEMMercury QuicksilverPlug - Priced Individually$10.29 1 In Stock.
22-8M0119211OEMMercury QuicksilverDrain Plug, Priced Individually, .5 inch x 13$10.19 8 In Stock.
#3 32509 — O-RING, (.489 x .070) (1 required per assembly)
25-32509OEMMercury QuicksilverO-ring, (.489 X .070)$2.39 10+ In Stock.
18-7165-9AftermarketSierraO-Ring (PK5) , 0304174$10.38 Available to Order: Usually ships within 10 days.
#4 817505 1 — SCREW, (.250-20 x .625) (3 required per assembly)
10-817505 1OEMMercury QuicksilverScrew$2.39 Available to Order: Usually ships within 10 days.
#5 863839 — COVER (1 required per assembly) (Rod Actuated)
863839OEMMercury QuicksilverCover$5.09 Available to Order: Usually ships within 10 days.
#6 863865 — COVER (1 required per assembly) (Manual Drain)
863865OEMMercury QuicksilverDust Cover$5.39 Available to Order: Usually ships within 10 days.
#7 863449T — BRACKET, Water Distribution Housing (1 required per assembly)
863449TOEMMercury QuicksilverBracket$45.99 Available to Order: Usually ships within 10 days.
#8 34353 — SCREW, (.375-16 x 1.00) (1 required per assembly)
10-34353OEMMercury QuicksilverScrew - Priced Individually$2.59 10+ In Stock.
#9 805357 — STUD, (.375-16 x 2.130) (1 required per assembly)
16-805357PartStudUnavailable
16-8M2004610OEMMercury QuicksilverStud$5.19 Available to Order: Usually ships within 10 days.
#10 863451T — BRACKET, Water Drain Actuator (1 required per assembly)
863451TOEMMercury QuicksilverBracket$37.49 Available to Order: Usually ships within 10 days.
#12 863381A 1 — DRAIN ROD ASSEMBLY (1 required per assembly)
863381A 1OEMMercury QuicksilverDrain Rod Assembly$45.49 Available to Order: Usually ships within 10 days.
#13 826711 12 — NUT, (.375-16) (1 required per assembly)
11-826711 12OEMMercury QuicksilverNut, (.375-16)$3.59 1 In Stock.
#14 863499 — FITTING, Air Valve, Orange (1 required per assembly) (Component of Air Actuated Housing Only)
22-863499OEMMercury QuicksilverFitting - Air$9.99 Available to Order: Usually ships within 10 days.
#15 863467 — FITTING, Air Valve, Gray (1 required per assembly) (Component of Air Actuated Housing Only)
22-863467OEMMercury QuicksilverFitting - Air$15.49 Available to Order: Usually ships within 10 days.
#16 863741 — E-RING (1 required per assembly)
53-863741OEMMercury QuicksilverE Ring$2.59 Available to Order: Usually ships within 10 days.
Water Drain(Air Manifold & Pump)
11681_310 | 11 diagram reference numbers | 13 listed parts/equivalents
#1 863057 — PUMP, Bracket Assembly (1 required per assembly)
863057OEMMercury QuicksilverAir Pump$26.49 In Stock
#2 863474 1 — BRACKET, Air Pump (1 required per assembly) (Bravo Standard Cooling)
863474 1OEMMercury QuicksilverBracket - Air Pump$13.59 Available to Order: Usually ships within 10 days.
#2 863474 2 — BRACKET, Air Pump (1 required per assembly) (Bravo Closed Cooling)
863474 2OEMMercury QuicksilverPump Bracket$21.09 Available to Order: Usually ships within 10 days.
#3 40011106 — SCREW, (M5 x 13) Stainless Steel (1 required per assembly) (Bravo Standard Cooling)
10-40011106OEMMercury QuicksilverScrew$1.70 Available to Order: Usually ships within 10 days.
#4 863053T — MANIFOLD ASSEMBLY, Air (1 required per assembly)
863053TOEMMercury QuicksilverAir Manifold$185.49 Available to Order: Usually ships within 10 days.
#5 883503 — CAP, Service Point (1 required per assembly)
19-883503OEMMercury QuicksilverCap -service Point$1.50 Available to Order: Usually ships within 10 days.
#6 40007112 — SCREW, (M5 x 40) (2 required per assembly)
10-40007112OEMMercury QuicksilverScrew$3.69 Available to Order: Usually ships within 10 days.
#7 40023 14 — WASHER (2 required per assembly)
12-40023 14OEMMercury QuicksilverWasher - Priced Individually$3.69 $3.14 10+ In Stock.
#8 863055 2 — HOSE, (40.00 Inches Bulk) Green (Cut to 32 Inch Length) (2 required per assembly)
32-863055 2PartTUBING-GREEN-40INUnavailable
32-8M0062605OEMMercury QuicksilverTubing -40 InUnavailable
#9 863054 2 — HOSE, (40.00 Inches Bulk) Grey (Cut to 32 Inch Lenght) (2 required per assembly)
32-863054 2PartTUBING-GREY-40 INUnavailable
32-8M0062601OEMMercury QuicksilverTubing - Pressureer 40$28.39 Available to Order: Usually ships within 10 days.
#NS 863056 1 — HOSE, (42.00 Inches Bulk) Black (Cut to 28 Inch Length) (2 required per assembly)
32-863056 1OEMMercury QuicksilverHose -42 Inch$13.89 Available to Order: Usually ships within 10 days.
Sea Water Pump Assembly
11681_320 | 21 diagram reference numbers | 40 listed parts/equivalents
#1 862914A13 — HOUSING ASSEMBLY, Impeller (1 required per assembly)
46-862914A13PartImpeller HousingUnavailable
8M0118062PartImpeller Housing AssemblyUnavailable
8M0139984OEMMercury QuicksilverImpeller Housing$542.99 Available to Order: Usually ships within 10 days.
18-32888AftermarketSierraSea Water Pump Repair Kit$132.09 $130.06 10+ In Stock.
18-3160-1AftermarketSierraSea Water Pump, 46-862914A13$376.71 $353.37 Available to Order: Usually ships within 10 days.
46-46301AftermarketEmpSea Water Pump Assembly$389.99 $298.20 1 In Stock.
#2 862232A 2 — IMPELLER (1 required per assembly)
47-862232A 2PartImpeller KitUnavailable
47-8M0104229OEMMercury QuicksilverImpeller Kit, Sea Water Pump$52.49 7 In Stock.
18-3016-1AftermarketSierraImpeller Kit, 47-862232A2$34.49 $33.66 10+ In Stock.
#3 841807 — O-RING, (3.500 x .103) (Also included with Reference 8 and 9) (1 required per assembly)
25-841807OEMMercury QuicksilverO-ring, (3.500 X .103)$5.79 8 In Stock.
#4 862037 — SEAL, Oil (1 required per assembly)
26-862037PartSEALUnavailable
26-8M2001645PartSealUnavailable
268M0146317OEMMercury QuicksilverSeal$6.79 Available to Order: Usually ships within 10 days.
#5 862235A 1 — DRIVESHAFT ASSEMBLY (1 required per assembly)
862235A 1OEMMercury QuicksilverShaftUnavailable
8M0140001OEMMercury QuicksilverImpeller Driveshaft Kit$135.99 $134.27 In Stock
#6 862039 — TOLERANCE RING (1 required per assembly)
862039OEMMercury QuicksilverTolerance Ring$26.49 Available to Order: Usually ships within 10 days.
#7 862040 — SEAL, Lip (1 required per assembly)
26-862040OEMMercury QuicksilverSeal$10.59 Available to Order: Usually ships within 10 days.
#8 863674A05 — COVER KIT, Impeller Housing (1 required per assembly) (With Air Fittings)
863674A05OEMMercury QuicksilverImpeller Housing Cover$519.99 Available to Order: Usually ships within 10 days.
#9 862776A01 — COVER KIT, Impeller Housing (1 required per assembly) (Without Air Fittings)
862776A01OEMMercury QuicksilverImpeller Housing Cover$140.49 In Stock
#10 806608A 1 — PLUG KIT, (.500-13) Royal Blue (2 required per assembly)
22-806608A 1PartPlug Kit, Priced IndividuallyUnavailable
22-806608A02PartPlug Assembly - Priced IndividuallyUnavailable
18-4226AftermarketSierraBlue Drain Plug, 22-806608A1$4.10 10+ In Stock.
22-806608Q01OEMMercury QuicksilverPlug - Priced Individually$10.29 1 In Stock.
22-8M0119211OEMMercury QuicksilverDrain Plug, Priced Individually, .5 inch x 13$10.19 8 In Stock.
#11 32509 — O-RING, (.489 x .070) (2 required per assembly)
25-32509OEMMercury QuicksilverO-ring, (.489 X .070)$2.39 10+ In Stock.
18-7165-9AftermarketSierraO-Ring (PK5) , 0304174$10.38 Available to Order: Usually ships within 10 days.
#12 40003 28 — SCREW, (M6 x 16) (4 required per assembly)
10-40003 28OEMMercury QuicksilverScrewUnavailable
#13 863718 — FITTING, Gray - Straight, Male Air (1 required per assembly) (.1562)(Component of 46-862914T11)
22-863718PartFittingUnavailable
228M0082319OEMMercury QuicksilverFitting$12.99 Available to Order: Usually ships within 10 days.
#14 863719 — FITTING, Orange - Straight, Male Air (1 required per assembly) (.1875)(Component of 46-862914T11)
22-863719PartFittingUnavailable
228M0082320OEMMercury QuicksilverFitting$12.99 Available to Order: Usually ships within 10 days.
#16 865143T — BRACKET, Sea Water Pump (1 required per assembly)
865143TPartBracket - Sea PumpUnavailable
865143T01OEMMercury QuicksilverBracket - Sea Pump$91.99 In Stock
#17 40003 31 — SCREW, (M6 x 30) (1 required per assembly)
10-40003 31OEMMercury QuicksilverScrew$3.79 5 In Stock.
#18 862351T — PULLEY (1 required per assembly)
862351TPartPulley - SeaWater PumpUnavailable
8M0150724OEMMercury QuicksilverSeaWater Pump Pulley$124.49 $119.99 In Stock
#19 863853 — STUD (2 required per assembly)
16-863853OEMMercury QuicksilverStud$4.69 Available to Order: Usually ships within 10 days.
#20 826711 12 — NUT, (.375-16) (2 required per assembly)
11-826711 12OEMMercury QuicksilverNut, (.375-16)$3.59 1 In Stock.
#21 32132 — SCREW, (.375-16 x 1.750) (1 required per assembly)
10-32132OEMMercury QuicksilverScrew$2.99 4 In Stock.
#22 35048 — LOCKWASHER, (.375) (1 required per assembly)
13-35048OEMMercury QuicksilverLockWasher - Priced Individually$1.20 10+ In Stock.
Power Steering Components
11681_330 | 21 diagram reference numbers | 34 listed parts/equivalents
#1 16792A39 — PUMP ASSEMBLY, Power Steering (1 required per assembly)
16792A39OEMMercury QuicksilverPower Steering Pump without Pulley$957.49 In Stock
18-7508AftermarketSierraPower Steering Pump Assembly, 16792A39$860.99 $749.12 1 In Stock.
#2 41877 — STUD, (M10) (2 required per assembly)
16-41877OEMMercury QuicksilverStudUnavailable
#3 95805 — CAP (1 required per assembly)
36-95805OEMMercury QuicksilverCap$29.49 Available to Order: Usually ships within 10 days.
#4 861578 — PULLEY (1 required per assembly)
861578PartPulleyUnavailable
18-8297AftermarketSierraPulley, 861578$96.73 In Stock
8M0150723OEMMercury QuicksilverPulley-Power Steering Pump$107.99 In Stock
#5 862082T — BRACE, Power Steering (1 required per assembly)
862082TOEMMercury QuicksilverBrace$8.79 Available to Order: Usually ships within 10 days.
#6 40001188 — SCREW, (M10 x 20) (2 required per assembly)
10-40001188OEMMercury QuicksilverScrewUnavailable
#7 90517 — NUT, (M10) (2 required per assembly)
11-90517OEMMercury QuicksilverNut, (M10)$2.69 Available to Order: Usually ships within 10 days.
#8 865387053 — HOSE, Female Quick Connect (Fittings on Both Ends) (1 required per assembly)
32-865387053PartHydraulic HoseUnavailable
32-866685PartHose - Power SteeringUnavailable
32-8M0063020OEMMercury QuicksilverHose - Power Steering$224.99 In Stock
#8 865389139 — HOSE, Female Quick Connect (Fittings on Both Ends) (1 required per assembly) (Jackshaft Models)
32-865389139PartHydraulic HoseUnavailable
32-866689PartHose - Power SteeringUnavailable
328M0063022OEMMercury QuicksilverHose - Power Steering$291.99 Available to Order: Usually ships within 10 days.
#9 89879 — O-RING, (.301 x .064) (1 required per assembly)
25-89879OEMMercury QuicksilverO-ring, (.301 X .064)$1.60 Available to Order: Usually ships within 10 days.
#10 865390015 — HOSE, Male Quick Connect (Fitting on One End) (1 required per assembly)
32-865390015OEMMercury QuicksilverHydraulic Hose$63.99 In Stock
#10 865390134 — HOSE, Male Quick Connect (Fitting on One End) (1 required per assembly) (Jackshaft Models)
32-865390134OEMMercury QuicksilverHydraulic Hose$179.49 Available to Order: Usually ships within 10 days.
#11 52519 14 — HOSE, (53.00 Inches Bulk), Pump to Oil Cooler (37 Inch) (1 required per assembly)
32-52519 14OEMMercury QuicksilverHose - 53 Inch$39.99 7 In Stock.
32-8M0062341OEMMercury QuicksilverHose -53 Inch$54.99 In Stock
#12 815504105 — CLAMP, Worm Gear, Hose (3 required per assembly)
54-815504105PartClampUnavailable
54-8M0188618OEMMercury QuicksilverCLAMPUnavailable
#13 90520 1 — SPACER, (.750 x .250) (1 required per assembly)
23-90520 1OEMMercury QuicksilverSpacer$7.39 Available to Order: Usually ships within 10 days.
#14 863820T 1 — COOLER, Power Steering (1 required per assembly)
863820T 1OEMMercury QuicksilverPower Steering Oil CoolerUnavailable
#15 816585 — SCREW, (.375-18 x .875) (1 required per assembly)
10-816585OEMMercury QuicksilverScrew$3.39 Available to Order: Usually ships within 10 days.
#16 881879 3 — SENSOR (1 required per assembly)
881879 3PartSensorUnavailable
881879010PartSensorUnavailable
8M6000623PartSensorUnavailable
71-8M0157742OEMMercury QuicksilverWater Pressure Sensor 50PSI$209.99 $209.49 In Stock
#NS 807992 1 — COVER, Hose Clamp End (AR required per assembly) (.25 Inside Diameter)
19-807992 1OEMMercury QuicksilverCover-.250 - Priced IndividuallyUnavailable
#NS 807992 3 — COVER, Hose Clamp End (1 required per assembly) (.375 Inside Diameter)
19-807992 3OEMMercury QuicksilverCover-.375 - Priced Individually$0.58 4 In Stock.
198M0074364OEMMercury QuicksilverCover-Clamp - Priced Individually$3.29 $2.80 10+ In Stock.
#NS 77054 — TIE STRAP, (14.50 Inches) (1 required per assembly)
77054OEMMercury QuicksilverTie Strap$1.70 Available to Order: Usually ships within 10 days.
Exhaust System Components
11681_340 | 16 diagram reference numbers | 27 listed parts/equivalents
#1 44348001 — TUBE, Exhaust, Exhaust (2 required per assembly)
32-44348001PartExhaust TubeUnavailable
18-2748AftermarketSierraExhaust Boot 32-44348T$45.06 10+ In Stock.
328M0199681OEMMercury QuicksilverExhaust Tube$84.49 $84.25 Available to Order: Usually ships within 10 days.
#3 865951A01 — ELBOW KIT, Intermediate (1 required per assembly) (Non Riser)
865951A01OEMMercury QuicksilverExhaust Elbow$307.99 Available to Order: Usually ships within 10 days.
#3 866003A01 — ELBOW KIT, Intermediate (1 required per assembly) (1.7 Inch Riser)
866003A01OEMMercury QuicksilverExhaust Elbow$372.49 In Stock
#3 866004A01 — ELBOW KIT, Intermediate (1 required per assembly) (3 Inch Riser)
866004A01OEMMercury QuicksilverExhaust Elbow$532.49 Available to Order: Usually ships within 10 days.
#3 866209A01 — ELBOW KIT, Intermediate (1 required per assembly) (4.7 Inch Riser)
866209A01OEMMercury QuicksilverElbow Kit$394.99 Available to Order: Usually ships within 10 days.
#3 866005A01 — ELBOW KIT, Intermediate (1 required per assembly) (6 Inch Riser)
866005A01OEMMercury QuicksilverExhaust Elbow$630.99 Available to Order: Usually ships within 10 days.
#4 815504272 — CLAMP, Worm Gear (8 required per assembly)
54-815504272OEMMercury QuicksilverClamp$5.69 Available to Order: Usually ships within 10 days.
#5 14358001 — TUBE, Exhaust, Exhaust (2 required per assembly)
32-14358001PartExhaust Tube
18-2746AftermarketSierraHose, 32-14358T$50.52 10+ In Stock.
32-8M0199680OEMMercury QuicksilverExhaust Tube (328M0199680)$81.99 $81.83 Available to Order: Usually ships within 10 days.
61-01525AftermarketEmpLower Tube Exhaust Bellow, Mercruiser 32-14358T$49.99 $40.19 10+ In Stock.
#6 807130A 4 — PIPE, Exhaust (1 required per assembly)
807130A 4PartExhaust Pipe AssemblyUnavailable
8M0115149OEMMercury QuicksilverExhaust Pipe Assembly$1,017.99 In Stock
#7 807166A 1 — SHUTTER ASSEMBLY, Water (2 required per assembly)
807166A 1OEMMercury QuicksilverWater Shutter, Sold Individually$100.99 In Stock
32-08306AftermarketEmpWater Shutter$43.58 In Stock
#8 807167 — GROMMET (4 required per assembly)
25-807167OEMMercury QuicksilverGrommet - Priced Individually$3.32 10+ In Stock.
25-8M0204688OEMMercury QuicksilverGrommet Note: Priced Individually FOR EXH.SHUTTER ZZ$3.59 Available to Order: Usually ships within 10 days.
#9 58640 — SCREW, (.375-16 x 1.25) (4 required per assembly)
10-58640OEMMercury QuicksilverScrew - Priced Individually$4.00 4 In Stock.
10-8M0113174OEMMercury QuicksilverScrew, .375-16, Priced Individually$7.29 Available to Order: Usually ships within 10 days.
#10 41471 — LOCKWASHER, (.375) (4 required per assembly)
13-41471OEMMercury QuicksilverLockWasher$2.29 Available to Order: Usually ships within 10 days.
#NS 807992 3 — COVER, Hose Clamp (AR required per assembly)
19-807992 3OEMMercury QuicksilverCover-.375 - Priced Individually$0.58 4 In Stock.
198M0074364OEMMercury QuicksilverCover-Clamp - Priced Individually$3.29 $2.80 10+ In Stock.
#11 861776A 2 — PLATE KIT (1 required per assembly) (Through Transome Exhaust)
861776A 2OEMMercury QuicksilverExhaust Plate Kit$119.49 $117.81 1 In Stock.
#12 98794 — SCREW, (.375-16 x 1.00) (4 required per assembly) (Through Transom Exhaust)
10-98794PartScrewUnavailable
10-8M0113180OEMMercury QuicksilverMTG Screw AL/BRAV TOP Cover ZZ$5.09 Available to Order: Usually ships within 10 days.
Shift Bracket(Alpha)
11681_350 | 19 diagram reference numbers | 25 listed parts/equivalents
#1 807962A15 — BRACKET ASSEMBLY, Shift (1 required per assembly)
807962A15OEMMercury QuicksilverShift Plate Kit$166.99 In Stock
#2 865149A02 — STUD, With Cotter Pin (1 required per assembly)
865149A02OEMMercury QuicksilverStud$10.69 Available to Order: Usually ships within 10 days.
#3 865433A02 — LEVER ASSEMBLY, Actuator, With Cotter Pin (1 required per assembly)
865433A02OEMMercury QuicksilverArm Assembly - Switch$39.99 Available to Order: Usually ships within 10 days.
#4 864907 — SPRING (1 required per assembly)
24-864907PartSPRINGUnavailable
24-864907TOEMMercury QuicksilverSpring$5.49 Available to Order: Usually ships within 10 days.
#6 32857 1 — COTTER PIN (1 required per assembly)
18-32857 1OEMMercury QuicksilverCotter PinUnavailable
#7 98880 — SPRING (1 required per assembly)
24-98880PartSpring-shift Cable StudUnavailable
248M0207784OEMMercury QuicksilverSPRING$8.29 Available to Order: Usually ships within 10 days.
#8 56720 — WASHER, (.330 x .750 x .060) Stainless Steel (1 required per assembly)
12-56720OEMMercury QuicksilverWasher, (.330 X .750 X .060) Stainless Steel$1.80 Available to Order: Usually ships within 10 days.
#11 13898A06 — LEVER ASSEMBLY, Shift (1 required per assembly)
13898A06PartLEVER ASSY-SHIFTUnavailable
13898T06OEMMercury QuicksilverShift Lever Assembly$58.99 Available to Order: Usually ships within 10 days.
#12 35462 — WASHER, (.2656 x .625 x .0625) Stainless Steel (3 required per assembly)
12-35462OEMMercury QuicksilverWasher, (.2656 X .625 X .0625) Stainless Steel$1.80 10+ In Stock.
#13 865393A02 — STUD KIT, (.250-28 x 1.90), With Cotter Pin (1 required per assembly)
16-865393A02OEMMercury QuicksilverStud Kit$8.39 Available to Order: Usually ships within 10 days.
#14 63341 — TEE NUT (1 required per assembly)
11-63341OEMMercury QuicksilverNut -tee$2.79 10+ In Stock.
#15 814001 — PIN, Clevis (1 required per assembly)
17-814001OEMMercury QuicksilverClevis Pin$13.89 1 In Stock.
#16 21071 1 — COTTER PIN (1 required per assembly)
18-21071 1OEMMercury QuicksilverCotter Pin - Priced Individually$3.69 10+ In Stock.
#17 13743 — SCREW, (.312-18 x 1.843), Shoulder (1 required per assembly)
10-13743OEMMercury QuicksilverScrew$3.71 10+ In Stock.
10-865148PartScrewUnavailable
108M0207774OEMMercury QuicksilverSCREW$10.69 Available to Order: Usually ships within 10 days.
#18 808009T10 — SWITCH ASSEMBLY, Shift Interupt (1 required per assembly)
87-808009T10OEMMercury QuicksilverSwitch Assembly$92.08 1 In Stock.
#19 865147 — SCREW, (#6-32 x .750) Stainless Steel (2 required per assembly)
10-865147PartSCREW Note: Priced IndividuallyUnavailable
10-865147T01OEMMercury QuicksilverScrew - Priced Individually$2.39 Available to Order: Usually ships within 10 days.
#20 808009T11 — SWITCH ASSEMBLY, Gear Indicator (1 required per assembly)
87-808009T11OEMMercury QuicksilverSwitch Assembly$69.49 Available to Order: Usually ships within 10 days.
#22 813995A 1 — GUIDE ASSEMBLY, Spring (1 required per assembly)
813995A 1OEMMercury QuicksilverSpring,Guide Assembly$47.96 1 In Stock.
#23 65746 1 — SCREW AND LOCKWASHER, (.250-20 x .625) (3 required per assembly)
10-65746 1OEMMercury QuicksilverScrew$1.70 5 In Stock.
Shift Bracket(Bravo)
11681_360 | 19 diagram reference numbers | 27 listed parts/equivalents
#1 807962A15 — BRACKET ASSEMBLY, Shift (1 required per assembly)
807962A15OEMMercury QuicksilverShift Plate Kit$166.99 In Stock
#2 865154A02 — STUD KIT, (.250-20/.250-28 x 2.120), With Cotter Pin (1 required per assembly)
16-865154A02OEMMercury QuicksilverStud Kit$11.89 Available to Order: Usually ships within 10 days.
#3 865434A02 — RETAINER KIT, Shift Cable, With Cotter Pin (1 required per assembly)
865434A02OEMMercury QuicksilverRetainer Kit$56.49 Available to Order: Usually ships within 10 days.
#4 98828 — SPACER (1 required per assembly)
23-98828PartSpacerUnavailable
238M0207783OEMMercury QuicksilverSPACER$7.29 Available to Order: Usually ships within 10 days.
#5 53167 — SCREW, (.312-18 x .880) (1 required per assembly)
10-53167PartScrew - Priced IndividuallyUnavailable
10-53167TOEMMercury QuicksilverScrew - Priced Individually$1.50 $0.85 10+ In Stock.
#6 32857 1 — COTTER PIN (1 required per assembly)
18-32857 1OEMMercury QuicksilverCotter PinUnavailable
#7 98880 — SPRING (1 required per assembly)
24-98880PartSpring-shift Cable StudUnavailable
248M0207784OEMMercury QuicksilverSPRING$8.29 Available to Order: Usually ships within 10 days.
#8 56720 — WASHER, (.330 x .750 x .060) Stainless Steel (1 required per assembly)
12-56720OEMMercury QuicksilverWasher, (.330 X .750 X .060) Stainless Steel$1.80 Available to Order: Usually ships within 10 days.
#9 35462 — WASHER, (.2656 x .625 x .0625) Stainless Steel (3 required per assembly)
12-35462OEMMercury QuicksilverWasher, (.2656 X .625 X .0625) Stainless Steel$1.80 10+ In Stock.
#10 21071 1 — COTTER PIN (2 required per assembly)
18-21071 1OEMMercury QuicksilverCotter Pin - Priced Individually$3.69 10+ In Stock.
#11 865393A02 — STUD KIT, (.250-28 x 1.90), With Cotter Pin (1 required per assembly)
16-865393A02OEMMercury QuicksilverStud Kit$8.39 Available to Order: Usually ships within 10 days.
#12 63341 — TEE NUT (1 required per assembly)
11-63341OEMMercury QuicksilverNut -tee$2.79 10+ In Stock.
#13 863911A12 — LEVER ASSEMBLY, Shift (1 required per assembly)
863911A12OEMMercury QuicksilverShift Lever Assembly$60.99 Available to Order: Usually ships within 10 days.
#14 13743 — SCREW, (.312-18 x 1.843), Shoulder (1 required per assembly)
10-13743OEMMercury QuicksilverScrew$3.71 10+ In Stock.
10-865148PartScrewUnavailable
108M0207774OEMMercury QuicksilverSCREW$10.69 Available to Order: Usually ships within 10 days.
#15 68402 — PIN, (.250 x 1.13), Clevis (1 required per assembly)
17-68402OEMMercury QuicksilverPin, (.250 X 1.13)$10.69 Available to Order: Usually ships within 10 days.
#17 65746 1 — SCREW AND LOCKWASHER, (.250-20 x .625) (3 required per assembly)
10-65746 1OEMMercury QuicksilverScrew$1.70 5 In Stock.
#18 808009T11 — SWITCH ASSEMBLY, Gear Indicator (1 required per assembly)
87-808009T11OEMMercury QuicksilverSwitch Assembly$69.49 Available to Order: Usually ships within 10 days.
#19 865147 — SCREW, (#6-32 x .750) Stainless Steel (2 required per assembly)
10-865147PartSCREW Note: Priced IndividuallyUnavailable
10-865147T01OEMMercury QuicksilverScrew - Priced Individually$2.39 Available to Order: Usually ships within 10 days.
#20 12427 — TOOL, Shift Adjust (1 required per assembly)
91-12427PartShift Adjust ToolUnavailable
91-12427TOEMMercury QuicksilverTool - Shift Adjust$15.19 Available to Order: Usually ships within 10 days.
18-9807AftermarketSierraTool, 91-12427$11.80 Available to Order: Usually ships within 10 days.
Shift Bracket(Digital Throttle & Shift)
11681_370 | 19 diagram reference numbers | 27 listed parts/equivalents
#1 864289A02 — SHIFT ACTUATOR (1 required per assembly)
864289A02PartSHIFT ACTURATORUnavailable
864289A03PartSHIFT ACTURATORUnavailable
864289A04OEMMercury QuicksilverCHECK EPC FOR P/Unavailable
#2 865481T — BRACKET, Shift Plate (1 required per assembly)
865481TPartBRACKET - Replaced by -865481Unavailable
865481OEMMercury QuicksilverBracket$90.50 Available to Order: Usually ships within 10 days.
#3 864616 — RETAINER, Shift Cable (1 required per assembly)
864616OEMMercury QuicksilverRetainer$22.99 Available to Order: Usually ships within 10 days.
#4 98828 — SPACER (1 required per assembly)
23-98828PartSpacerUnavailable
238M0207783OEMMercury QuicksilverSPACER$7.29 Available to Order: Usually ships within 10 days.
#5 32857 1 — COTTER PIN (1 required per assembly)
18-32857 1OEMMercury QuicksilverCotter PinUnavailable
#6 863133 — SPACER, Actuator (1 required per assembly)
23-863133OEMMercury QuicksilverSpacer - Actuator$15.09 Available to Order: Usually ships within 10 days.
#7 863134 1 — LEVER, Shift Arm (1 required per assembly)
863134 1PartLeverUnavailable
8M2018371OEMMercury QuicksilverLever$112.49 Available to Order: Usually ships within 10 days.
#8 863132 — SPACER, Shift Arm (1 required per assembly)
23-863132OEMMercury QuicksilverSpacer - Shift Arm$23.59 Available to Order: Usually ships within 10 days.
#9 40011151 — SCREW, (M8 x 35) Stainless Steel (1 required per assembly)
10-40011151OEMMercury QuicksilverScrew$6.89 2 In Stock.
#10 864361 — STUD (1 required per assembly)
16-864361OEMMercury QuicksilverStud$29.79 Available to Order: Usually ships within 10 days.
#11 96112 — STUD, (.250-28 x 2.00), Throttle Cable Anchor (1 required per assembly)
16-96112PartStudUnavailable
16-8M0113178OEMMercury QuicksilverStud$3.09 Available to Order: Usually ships within 10 days.
#12 826711 9 — NUT, (.250-28) (3 required per assembly)
11-826711 9OEMMercury QuicksilverNut$2.59 10+ In Stock.
#13 46335 — NUT, (.375-24) (1 required per assembly)
11-46335OEMMercury QuicksilverNut (.375-24)$2.97 Available to Order: Usually ships within 10 days.
#14 35462 — WASHER, (.2656 x .625 x .0625) Stainless Steel (5 required per assembly)
12-35462OEMMercury QuicksilverWasher, (.2656 X .625 X .0625) Stainless Steel$1.80 10+ In Stock.
#15 34931 — WASHER, (.406 x .734 x .063) Stainless Steel (2 required per assembly)
12-34931OEMMercury QuicksilverWasher, (.406 X .734 X .063 - Stainless Steel)$2.59 10+ In Stock.
#16 40011155 — SCREW, (M8 x 55) Stainless Steel (1 required per assembly)
10-40011155OEMMercury QuicksilverScrew$6.09 2 In Stock.
#17 889514A01 — SWITCH (1 required per assembly)
87-889514A01PartSwitchUnavailable
87-8M0052939PartSwitchUnavailable
87-8M0207794OEMMercury QuicksilverSWITCH$58.99 $58.29 In Stock
#18 865076 — SCREW, (6-32 x 1.25) (2 required per assembly)
10-865076OEMMercury QuicksilverScrew - Priced Individually$1.60 Available to Order: Usually ships within 10 days.
#19 864386 — SPACER, Switch (1 required per assembly)
23-864386OEMMercury QuicksilverSpacer - Switch$21.59 Available to Order: Usually ships within 10 days.
Engine Mounts
11681_380 | 8 diagram reference numbers | 9 listed parts/equivalents
#1 79550A 1 — BRACKET, Mount (2 required per assembly)
79550A 1OEMMercury QuicksilverBracket Assembly$246.53 4 In Stock.
#2 68101 — SCREW, (.375-16 x 1.375) (2 required per assembly)
10-68101OEMMercury QuicksilverScrew$2.59 Available to Order: Usually ships within 10 days.
#3 805357 — STUD, (.375-16 x 2.130) (4 required per assembly)
16-805357PartStudUnavailable
16-8M2004610OEMMercury QuicksilverStud$5.19 Available to Order: Usually ships within 10 days.
#4 66284A 2 — BASE ASSEMBLY (2 required per assembly)
66284A 2OEMMercury QuicksilverEngine Mount Base Assembly$145.99 2 In Stock.
#5 20739 — NUT, (.750-16), Jam (2 required per assembly)
11-20739OEMMercury QuicksilverNut (.750X16)$5.89 10+ In Stock.
#6 12657 — TAB WASHER, Tab (2 required per assembly)
14-12657OEMMercury QuicksilverTab Washer$4.69 6 In Stock.
#7 68102 — LOCKWASHER, (.750) (2 required per assembly)
13-68102OEMMercury QuicksilverLockWasher - Priced Individually$2.59 Available to Order: Usually ships within 10 days.
#9 860069 — NUT, (.375-16) (2 required per assembly)
11-860069OEMMercury QuicksilverNut (3/8-16)$6.59 Available to Order: Usually ships within 10 days.
Mercathode Components
11681_390 | 13 diagram reference numbers | 18 listed parts/equivalents
#1 98869A17 — ELECTRODE ASSEMBLY (1 required per assembly) (With Quick Connectors)
98869A17PartHousing -mercathodUnavailable
8M0085692OEMMercury QuicksilverMercathode System$316.99 In Stock
#2 865181T01 — HARNESS ASSEMBLY, Mercathode (1 required per assembly)
84-865181T01OEMMercury QuicksilverHarness Assembly$43.49 $36.97 5 In Stock.
#3 26992 — LOCKWASHER, (.250) Stainless Steel (2 required per assembly)
13-26992OEMMercury QuicksilverLockWasher - Priced Individually$1.20 10+ In Stock.
#4 29245 — WASHER, (.281 x .500 x .060) Stainless Steel (2 required per assembly)
12-29245OEMMercury QuicksilverWasher$0.89 10+ In Stock.
12-8M0204649OEMMercury QuicksilverWASHER Note: Priced Individually$1.20 6 In Stock.
#5 42600A 3 — CONTROLLER ASSEMBLY (1 required per assembly)
42600A 3PartController AssemblyUnavailable
42600A09OEMMercury QuicksilverMercathode Kit$164.99 $162.58 Available to Order: Usually ships within 10 days.
#6 68219 — NUT, (#10-32) Stainless Steel (4 required per assembly)
11-68219OEMMercury QuicksilverNut (#10-32)$2.99 10+ In Stock.
#7 88543A 3 — CABLE ASSEMBLY (1 required per assembly)
84-88543A 3OEMMercury QuicksilverCable Assembly$16.29 Available to Order: Usually ships within 10 days.
#8 62568 — SCREW, (#10-16 x .375) (1 required per assembly)
10-62568OEMMercury QuicksilverScrew - Priced Individually$1.10 $0.94 10+ In Stock.
#9 40105 16 — SCREW, (M5 x 16) Stainless Steel (2 required per assembly)
10-40105 16OEMMercury QuicksilverScrew$1.80 Available to Order: Usually ships within 10 days.
#10 79091 — FUSE, 20 Ampere (1 required per assembly)
88-79091OEMMercury QuicksilverFuse - 20 Amp - Priced Individually$5.54 10+ In Stock.
888M0207796OEMMercury QuicksilverFUSE-20 AMP Note: Priced Individually$9.09 Available to Order: Usually ships within 10 days.
#11 95084A 9 — CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (1 required per assembly)
84-95084A 9OEMMercury QuicksilverCable Assembly$30.49 Available to Order: Usually ships within 10 days.
#11 95084A10 — CABLE ASSEMBLY, (5.00 Inches) Red (1 required per assembly)
84-95084A10PartCable AssemblyUnavailable
84-8M0207788OEMMercury QuicksilverCABLE ASSYUnavailable
#12 69067 — SCREW, (.250-20 x 1.375) (2 required per assembly)
10-69067OEMMercury QuicksilverScrew - Priced Individually$3.19 10+ In Stock.
Jackshaft Components
11681_400 | 62 diagram reference numbers | 72 listed parts/equivalents
#1 93911A 4 — HOUSING ASSEMBLY, Shaft Extension Support (1 required per assembly)
93911A 4OEMMercury QuicksilverHousing Assembly$985.99 Available to Order: Usually ships within 10 days.
#3 47651 — SCREW, (.437-14 x 1.50) (6 required per assembly)
10-47651OEMMercury QuicksilverScrew$2.39 Available to Order: Usually ships within 10 days.
#5 96995 — SCREW, (.375-16 x .880) (3 required per assembly)
10-96995OEMMercury QuicksilverScrew$1.70 Available to Order: Usually ships within 10 days.
#6 93919A 1 — SHIELD, Upper, Upper (2 required per assembly)
93919A 1OEMMercury QuicksilverShield- Upper$325.49 Available to Order: Usually ships within 10 days.
#7 826709 12 — NUT, (.375-16) Stainless Steel (8 required per assembly)
11-826709 12OEMMercury QuicksilverNut, (.375-16) Stainless Steel$6.79 $3.81 10+ In Stock.
#9 93923A 1 — MOUNT ASSEMBLY, Flywheel Housing (2 required per assembly)
93923A 1OEMMercury QuicksilverMount Assembly$157.99 Available to Order: Usually ships within 10 days.
#10 814263A 1 — BASE ASSEMBLY, Mount Assembly (2 required per assembly)
814263A 1OEMMercury QuicksilverMount Base Assembly$129.99 In Stock
#11 816331 — NUT, (.750-16), Jam (1 required per assembly)
11-816331OEMMercury QuicksilverNut, (.750-16)$7.59 10+ In Stock.
#12 12657 — TAB WASHER, Tab (1 required per assembly)
14-12657OEMMercury QuicksilverTab Washer$4.69 6 In Stock.
#13 859126 — NUT, (.750-16) (1 required per assembly)
11-859126OEMMercury QuicksilverNut, (.750-16)$17.49 5 In Stock.
#14 93906A 2 — SHAFT, Output (1 required per assembly)
93906A 2OEMMercury QuicksilverShaft Assembly - Output$912.99 Available to Order: Usually ships within 10 days.
#15 29845 — O-RING, (.924 x .103) (2 required per assembly)
25-29845OEMMercury QuicksilverO-ring, (.924 X .103)$2.21 10+ In Stock.
25-8M0204650OEMMercury QuicksilverO RING @3 Q=TUnavailable
#16 94104 — RING, Retaining (1 required per assembly)
53-94104OEMMercury QuicksilverRing - Retaining$10.79 Available to Order: Usually ships within 10 days.
#17 62780T — BEARING, Ball (1 required per assembly)
30-62780TPartBall BearingUnavailable
30-879194A03OEMMercury QuicksilverJackshaft Gimbal Bearing$167.49 Available to Order: Usually ships within 10 days.
#18 841897T — RING, Retaining (1 required per assembly)
53-841897TOEMMercury QuicksilverRing - Retaining$19.69 Available to Order: Usually ships within 10 days.
#21 814309A 1 — HOUSING ASSEMBLY (1 required per assembly)
814309A 1OEMMercury QuicksilverFlywheel Housing Assembly$533.99 Available to Order: Usually ships within 10 days.
MC-24-44187AftermarketBarrBellhousing$473.00 $362.70 Available to Order: Usually ships within 10 days.
#22 12304 — PLUG, Timing Window (1 required per assembly)
19-12304OEMMercury QuicksilverPlug$16.69 Available to Order: Usually ships within 10 days.
#23 49126 — BUSHING, Pilot (1 required per assembly)
23-49126OEMMercury QuicksilverBushing - Pilot - Crankshaft$59.99 Available to Order: Usually ships within 10 days.
#24 34353 — SCREW, (.375-16 x 1.00) (1 required per assembly)
10-34353OEMMercury QuicksilverScrew - Priced Individually$2.59 10+ In Stock.
#24 47688 — SCREW, (.375-16 x 2.750) (2 required per assembly)
10-47688OEMMercury QuicksilverScrew$3.59 Available to Order: Usually ships within 10 days.
#26 93920 1 — PLATE, Cover (1 required per assembly)
93920 1OEMMercury QuicksilverPlate - Cover$53.99 Available to Order: Usually ships within 10 days.
#27 92913 — SCREW, (.437-14 x .750) (2 required per assembly)
10-92913OEMMercury QuicksilverScrew$15.49 $13.17 3 In Stock.
#28 32993 — LOCKWASHER, (.437) (2 required per assembly)
13-32993OEMMercury QuicksilverLockWasher - Priced Individually$1.70 Available to Order: Usually ships within 10 days.
#29 818718A 3 — COVER KIT, Flywheel Insection (1 required per assembly)
818718A 3OEMMercury QuicksilverCover Assembly$70.99 Available to Order: Usually ships within 10 days.
MC-24-14043AftermarketBarrFlywheel Housing Dust Cover$52.00 $39.87 2 In Stock.
#30 86015 — GASKET, Flywheel Inspection Cover (1 required per assembly)
27-86015OEMMercury QuicksilverFlywheel Housing Cover Gasket$11.49 Available to Order: Usually ships within 10 days.
#31 98253 — SCREW, (.250-20 x .500) (7 required per assembly)
10-98253OEMMercury QuicksilverScrew$1.10 Available to Order: Usually ships within 10 days.
#32 26992 — LOCKWASHER, (.250) Stainless Steel (7 required per assembly)
13-26992OEMMercury QuicksilverLockWasher - Priced Individually$1.20 10+ In Stock.
#33 817416A 4 — HOUSING ASSEMBLY, Bearing (1 required per assembly)
817416A 4OEMMercury QuicksilverHousing Assembly$1,735.99 Available to Order: Usually ships within 10 days.
#35 817417T — SPACER (1 required per assembly)
23-817417TOEMMercury QuicksilverSpacer - Bearing$265.99 Available to Order: Usually ships within 10 days.
#36 93944A 2 — BEARING SET, Ball (Includes Part Number 34) (1 required per assembly)
30-93944A 2OEMMercury QuicksilverJackshaft Gimbal Bearing$138.49 Available to Order: Usually ships within 10 days.
#37 93914 — RING, Retaining (1 required per assembly)
53-93914OEMMercury QuicksilverRing - Retaining$95.99 Available to Order: Usually ships within 10 days.
#38 93915 — RING, Retaining (1 required per assembly)
53-93915OEMMercury QuicksilverRing - Retaining$57.95 10+ In Stock.
#39 93924 — SEAL, Oil (1 required per assembly)
26-93924OEMMercury QuicksilverSeal$29.39 Available to Order: Usually ships within 10 days.
#40 NSS — NOT SOLD SEPARATE, Input Shaft (1 required per assembly)
NSSOEMMercury QuicksilverNOT SOLD SEPARATEUnavailable
#41 93921 — EXPANSION PLUG (1 required per assembly)
19-93921OEMMercury QuicksilverPlug$34.49 Available to Order: Usually ships within 10 days.
#42 74036 — FITTING, Grease (2 required per assembly)
22-74036PartFitting - Priced IndividuallyUnavailable
228M0169589OEMMercury QuicksilverFitting Note: Priced Individually$4.79 Available to Order: Usually ships within 10 days.
#43 93918A 1 — SHIELD, Lower, Lower (1 required per assembly)
93918A 1OEMMercury QuicksilverShield- Lower$260.99 Available to Order: Usually ships within 10 days.
#44 76926 — SCREW, (.375-16 x .875) (3 required per assembly)
10-76926OEMMercury QuicksilverScrew$1.10 Available to Order: Usually ships within 10 days.
#45 57053 — SCREW, (.500-20 x 4.500) (2 required per assembly)
10-57053OEMMercury QuicksilverScrew$5.49 Available to Order: Usually ships within 10 days.
#46 35777 — WASHER, (.5156 x 1.375 x .125) Aluminum (2 required per assembly)
12-35777OEMMercury QuicksilverWasher, (.5156 X 1.375 X .125) Aluminum$2.59 Available to Order: Usually ships within 10 days.
#47 42307 — WASHER, Spherical (4 required per assembly)
12-42307OEMMercury QuicksilverWasher, Spherical$19.79 Available to Order: Usually ships within 10 days.
#48 826708 17 — NUT, (.500-20) (2 required per assembly)
11-826708 17PartNut, (.500-20)Unavailable
11-898832OEMMercury QuicksilverNut, (.500-20)$3.69 1 In Stock.
#49 94819T 5 — DRIVESHAFT ASSEMBLY, (34.50 Inches) (1 required per assembly)
45-94819T 5OEMMercury QuicksilverDrive Shaft Kit$1,164.49 Available to Order: Usually ships within 10 days.
#50 61221T — CROSS AND BEARING, With Clips (1 required per assembly)
61221TOEMMercury QuicksilverCross & Bearing$242.49 $206.12 2 In Stock.
#51 805159 — SCREW, (.437-20 x 1.500) (8 required per assembly)
10-805159OEMMercury QuicksilverScrew$4.99 Available to Order: Usually ships within 10 days.
#52 40024 8 — LOCKWASHER, (M10) (8 required per assembly)
13-40024 8OEMMercury QuicksilverLockWasher$1.70 $1.44 1 In Stock.
#53 826708 15 — NUT, (.437-20) (8 required per assembly)
11-826708 15OEMMercury QuicksilverNut, (.437-20)$2.59 $2.20 3 In Stock.
#54 98626A 3 — SEPARATOR, Exhaust (1 required per assembly)
98626A 3OEMMercury QuicksilverSeparator Assembly - Exhaust$339.83 Available to Order: Usually ships within 10 days.
#55 35029 — O-RING (2 required per assembly)
25-35029OEMMercury QuicksilverO-ring, Exhaust Elbow$3.39 6 In Stock.
18-7121AftermarketSierraO-Ring 25-35029, 308621$2.48 Available to Order: Usually ships within 10 days.
#56 60931 — RETAINER (2 required per assembly)
60931OEMMercury QuicksilverWater Shutter Retainer$23.12 1 In Stock.
#57 60930 — SHUTTER, Water, Exhaust (2 required per assembly)
60930OEMMercury QuicksilverWater Shutter$42.49 1 In Stock.
18-2727AftermarketSierraShutter 60930$36.99 5 In Stock.
#58 94018A 1 — ELBOW ASSEMBLY, Exhaust (2 required per assembly)
94018A 1OEMMercury QuicksilverExhaust Elbow Assembly$153.25 Available to Order: Usually ships within 10 days.
#59 37612 — SCREW, (.375-16 x 1.250) (4 required per assembly)
10-37612OEMMercury QuicksilverScrew - Priced Individually$2.49 1 In Stock.
#60 35048 — LOCKWASHER, (.375) (4 required per assembly)
13-35048OEMMercury QuicksilverLockWasher - Priced Individually$1.20 10+ In Stock.
#61 58640 — SCREW, (.375-16 x 1.25) (6 required per assembly)
10-58640OEMMercury QuicksilverScrew - Priced Individually$4.00 4 In Stock.
10-8M0113174OEMMercury QuicksilverScrew, .375-16, Priced Individually$7.29 Available to Order: Usually ships within 10 days.
#62 58643 — LOCKWASHER, (.375) (6 required per assembly)
13-58643OEMMercury QuicksilverLockWasher$1.80 $1.30 10+ In Stock.
#63 44390T — ELBOW, Exhaust (2 required per assembly)
44390TOEMMercury QuicksilverExhaust Elbow$599.99 Available to Order: Usually ships within 10 days.
#64 866785T01 — HARNESS ASSEMBLY, Extension (1 required per assembly) (Without Digital Throttle and Shift)
84-866785T01PartHarnessUnavailable
848M0084839OEMMercury QuicksilverHarness$195.49 Available to Order: Usually ships within 10 days.
#64 866784T01 — HARNESS ASSEMBLY, Extension (1 required per assembly) (With Digital Throttle and Shift)
84-866784T01OEMMercury QuicksilverJackShaft Harness$72.99 Available to Order: Usually ships within 10 days.
#65 862268T 1 — TUBE (1 required per assembly)
862268T 1OEMMercury QuicksilverExhaust Tube$277.49 $66.54 4 In Stock.
#66 862268T 2 — TUBE (1 required per assembly)
862268T 2OEMMercury QuicksilverExhaust Tube$287.99 Available to Order: Usually ships within 10 days.
#67 41802 — SEAL, Rubber (1 required per assembly)
41802OEMMercury QuicksilverRubber Seal$15.99 9 In Stock.
Gasket Set Components (27-861246a05), Engine Overhaul
11681_410 | 0 diagram reference numbers | 0 listed parts/equivalents
No exploded diagram found for this component.
